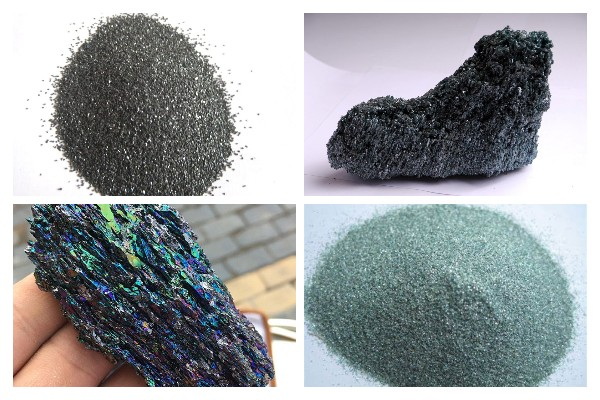

● The Spectrum of Silicon Carbide Colors
>> Pure Silicon Carbide: Colorless to Pale Hues
>> Industrial Silicon Carbide: Black and Green
>> Rainbow and Iridescent Silicon Carbide
>> Other Color Variations: Yellow, Blue, and More
● The Science Behind Silicon Carbide's Color
>> Crystal Structure and Polytypes
>> Surface Effects and Thin-Film Interference
>> Thickness and Substrate Effects
● Silicon Carbide in Nature: Moissanite
● Color and Application: Why It Matters
● FAQ
>> 1. Why is most industrial silicon carbide black?
>> 2. What causes green silicon carbide?
>> 3. Can silicon carbide be colorless?
>> 4. What gives silicon carbide its iridescent or rainbow appearance?
>> 5. Does the color of silicon carbide affect its performance?
Silicon carbide (SiC) is a material celebrated for its exceptional hardness, thermal stability, and wide-ranging industrial applications. Yet, one of the most visually striking aspects of silicon carbide is its color, which can range from colorless to green, black, yellow, blue, and even iridescent rainbow hues. This article takes an in-depth look at the color of silicon carbide, exploring the science behind its appearance, the impact of impurities and crystal structure, and how these factors relate to its uses.
Silicon carbide is not just a technical marvel; it is also a material of remarkable visual diversity. Its color is determined by a combination of chemical purity, crystal structure, manufacturing process, and the presence of impurities or defects. Understanding the color of silicon carbide is not just an aesthetic pursuit-it also provides insights into its quality, purity, and suitability for specific applications.
In its purest form, silicon carbide is colorless or nearly colorless. However, pure SiC is rarely encountered outside laboratory conditions or in high-purity synthetic crystals used for semiconductor substrates. The absence of impurities and crystal defects allows light to pass through or reflect with minimal coloration, resulting in clear or faintly tinted crystals.

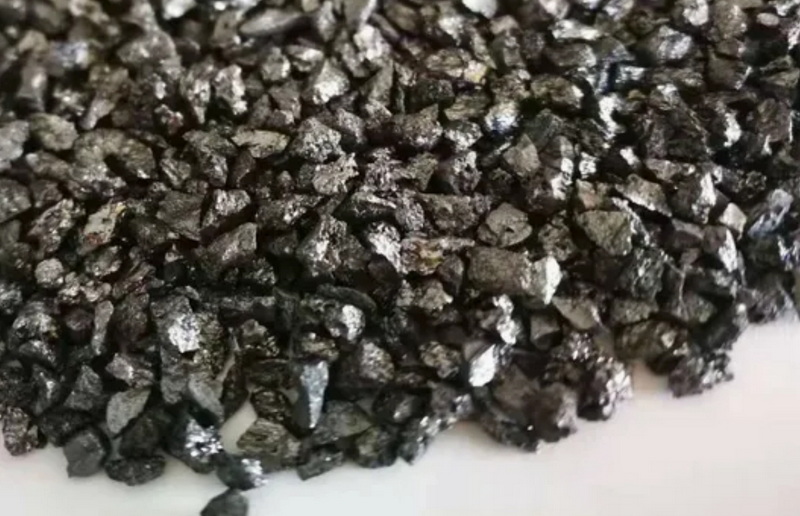

Most commercial silicon carbide appears either black or green. These are the two most common types found in abrasives, ceramics, and industrial products.
- Color: Deep black, sometimes with a metallic sheen.
- Cause: The black color is primarily due to the presence of iron and other metallic impurities, as well as free carbon within the crystal lattice. These impurities absorb light, resulting in a dark appearance.
- Production: Manufactured by smelting quartz sand and petroleum coke at high temperatures. Black SiC is the default product unless further purification steps are taken.
- Applications: Used for grinding, sandblasting, and cutting tools due to its toughness and cost-effectiveness.
- Color: Bright green, sometimes with a translucent or glassy look.
- Cause: Green SiC is produced with higher purity, often by adding salt to the reaction or by using purer raw materials. The green color results from the absence of iron and lower levels of other impurities, as well as differences in crystal structure and the presence of trace elements.
- Production: Formed closer to the heat source in the furnace, where the reaction is more complete and impurities are minimized.
- Applications: Used for fine grinding, polishing, and cutting hard alloys, glass, and ceramics, where higher purity and sharpness are required.
Some silicon carbide crystals, especially those grown for gemstones or as collector specimens, display iridescent rainbow colors. This effect is not due to the bulk crystal color, but rather to thin-film interference caused by a microscopic layer of silicon dioxide (SiO₂) that forms on the surface when SiC is exposed to air at high temperatures. The oxide layer splits and reflects light, creating a spectrum of colors-much like an oil slick on water.
Silicon carbide can also appear yellow, blue, or bluish-black. These colors are typically the result of specific impurities or defects:
- Nitrogen impurities: Can induce yellow to green coloration.
- Boron impurities: Can give rise to blue or black hues.
- Crystal defects: Vacancies or interstitial atoms can alter the band gap, affecting light absorption and emission.
- Polytype differences: Different stacking sequences of the SiC crystal lattice (e.g., 3C, 4H, 6H polytypes) can subtly affect color, especially in synthetic gemstones.
- Iron: Most responsible for the black color in industrial SiC.
- Nitrogen and boron: Create green, yellow, blue, or black hues depending on concentration and crystal structure.
- Other trace elements: Aluminum, calcium, magnesium, and others can affect color if present in significant amounts.
Silicon carbide exists in over 200 polytypes, but the most common are 3C (cubic, β-SiC), 4H, and 6H (hexagonal, α-SiC). These polytypes have different arrangements of silicon and carbon atoms, which affect how light interacts with the crystal and thus its apparent color.
A thin passivation layer of silicon dioxide often forms on SiC surfaces, especially when exposed to air at high temperatures. This layer can cause rainbow-like iridescence due to thin-film interference, where certain wavelengths of light are reinforced or cancelled out.
Thin films of silicon carbide, especially those used in electronics, can appear different colors depending on their thickness and the substrate they are deposited on, again due to interference effects.
Naturally occurring silicon carbide is called moissanite. It is extremely rare on Earth but more common in meteorites and stardust. Natural moissanite is typically colorless to pale yellow or green, but can also show a range of colors due to cosmic irradiation and trace elements. Synthetic moissanite, produced for jewelry, is usually engineered to be colorless or near-colorless, but can be made in various colors for decorative purposes.
The color of silicon carbide is not just a visual curiosity-it is a practical indicator of:
- Purity: Green SiC is higher in purity than black SiC.
- Suitability: Black SiC is tougher and used for general abrasives; green SiC is sharper and used for fine grinding and high-tech applications.
- Performance: Color can indicate the presence of unwanted impurities that might affect performance in electronics or high-temperature environments.
- Value: In gemstones, color and clarity directly influence value.
Silicon carbide's color is a window into its inner structure, purity, and potential applications. While pure SiC is colorless, most industrial and commercial silicon carbide appears black or green, depending on its purity and manufacturing process. Iridescent, rainbow-like colors arise from thin oxide layers on the surface, while other hues result from specific impurities or defects. Understanding what color silicon carbide is-and why-enables manufacturers, engineers, and gemologists to select the right material for every application, from abrasives and electronics to jewelry and scientific research.
Most industrial silicon carbide is black due to the presence of iron and other impurities, as well as free carbon in the crystal lattice, which absorb light and create a dark appearance.
Green silicon carbide is produced with higher purity and fewer metallic impurities. The green color results from the absence of iron, a more complete reaction during manufacturing, and sometimes the presence of trace elements or specific crystal structures.
Pure silicon carbide is colorless, but this is rare outside laboratory or gemstone-quality synthetic crystals. Most commercial SiC contains impurities that give it color.
A thin surface layer of silicon dioxide (SiO₂), formed by oxidation at high temperatures, causes thin-film interference, resulting in iridescent rainbow colors on some silicon carbide crystals.
Yes. Color can indicate purity and the presence of impurities. Green SiC is typically used for fine grinding and high-purity applications, while black SiC is used for general abrasives and cutting tools.
