Fiberglass Backing Pad
Fiberglass Backing Pad Fiberglass Backing Pad
Fiberglass Backing Pad Fiberglass Backing Pad
Fiberglass Backing Pad Fiberglass Backing Pad
Fiberglass Backing Pad Fiberglass Backing Pad
Fiberglass Backing Pad Fiberglass Backing Pad

loading

Fiberglass Backing Pad

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

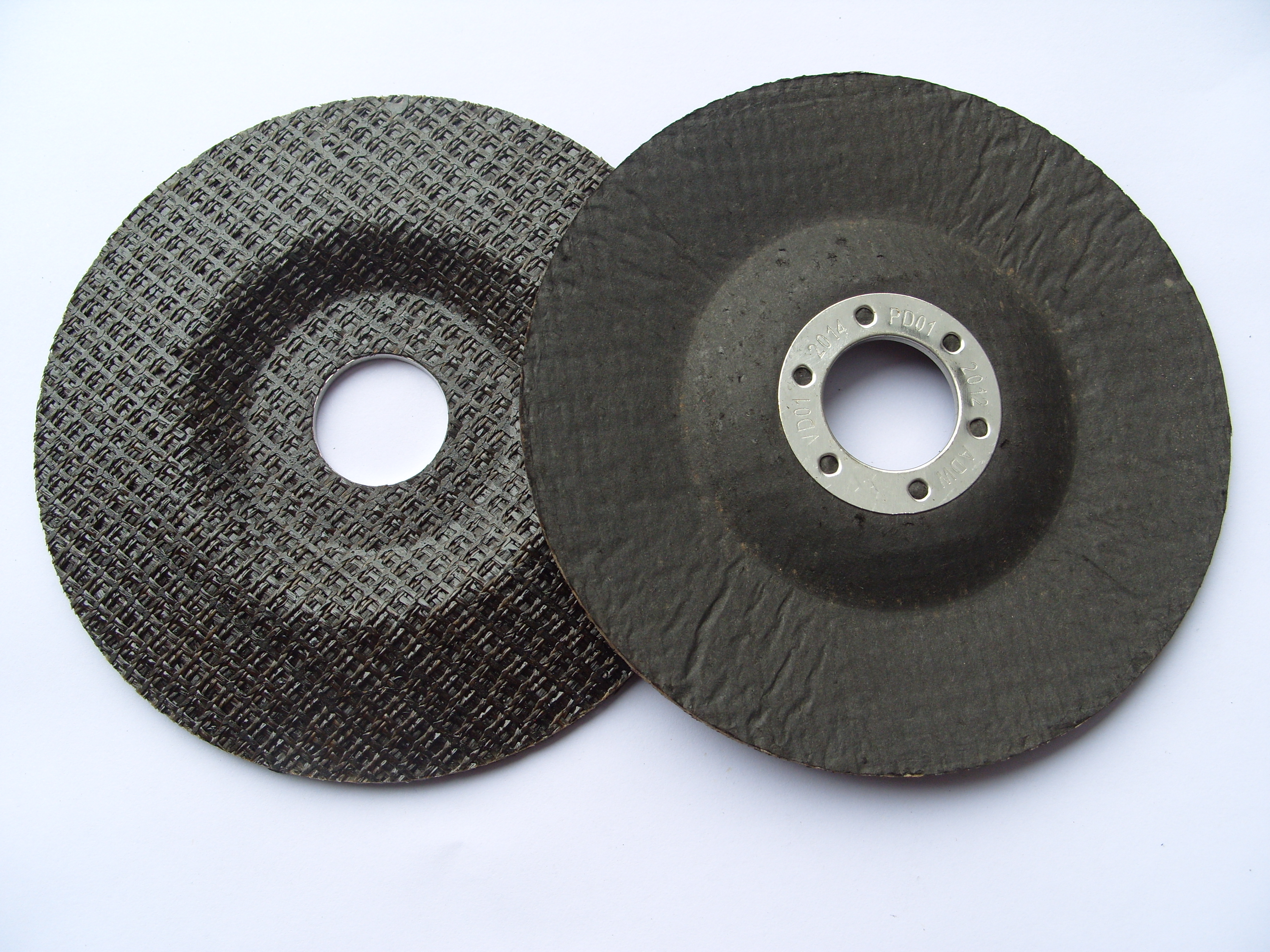

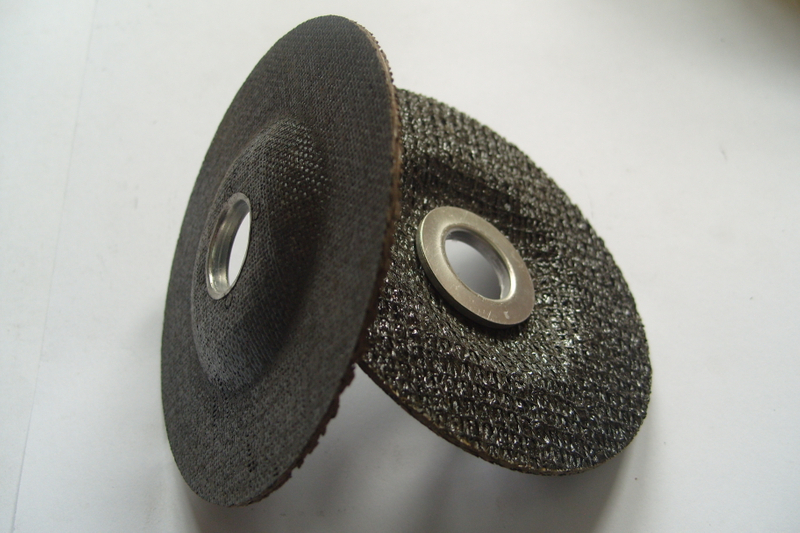

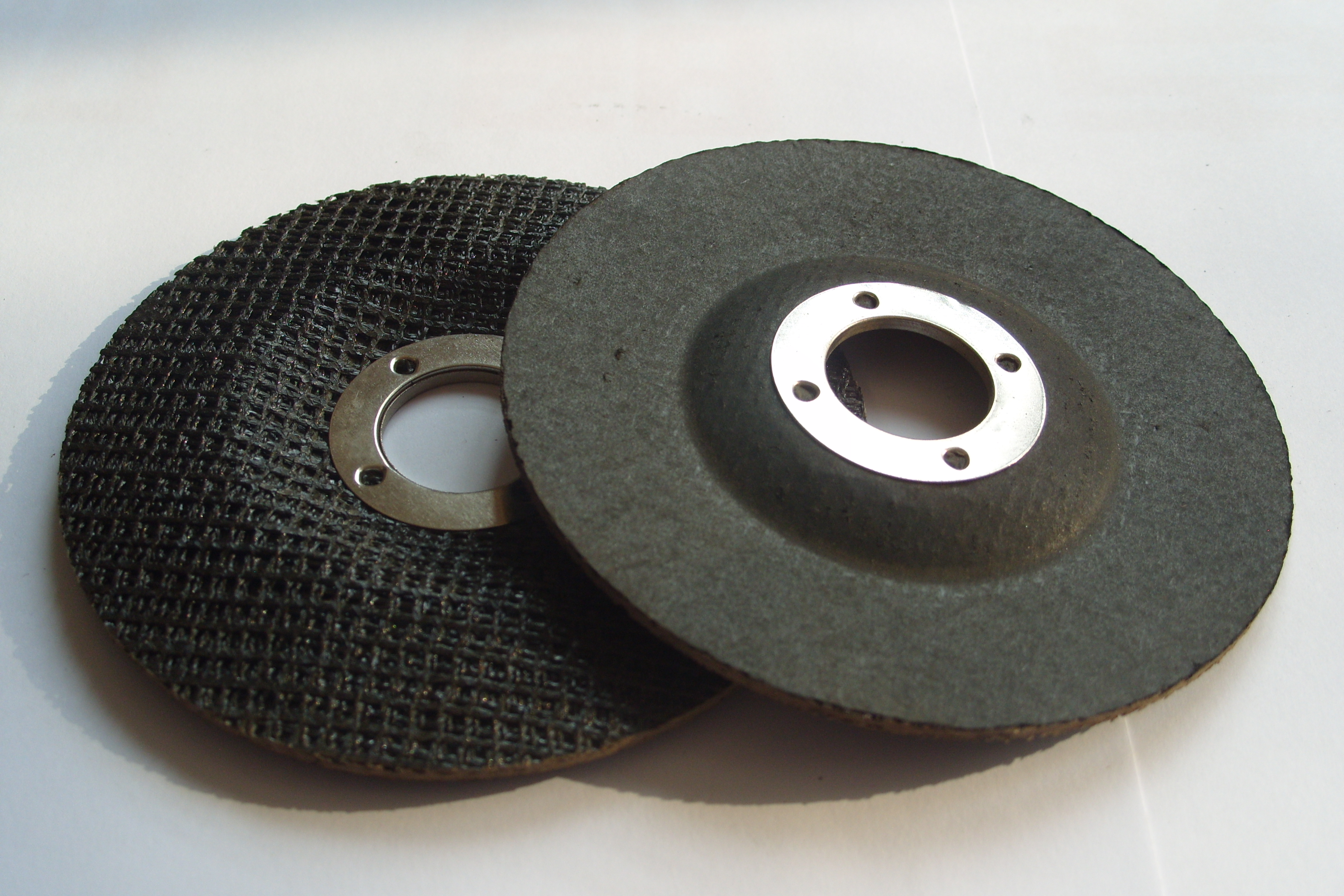

Fiberglass Backing Plate
Availability:

Type:T27(Flat) ,T29(Convex)

Material:  Fiberglass fabric impregnated with phenolic resin

Washer: 1 or 2 or as requirement

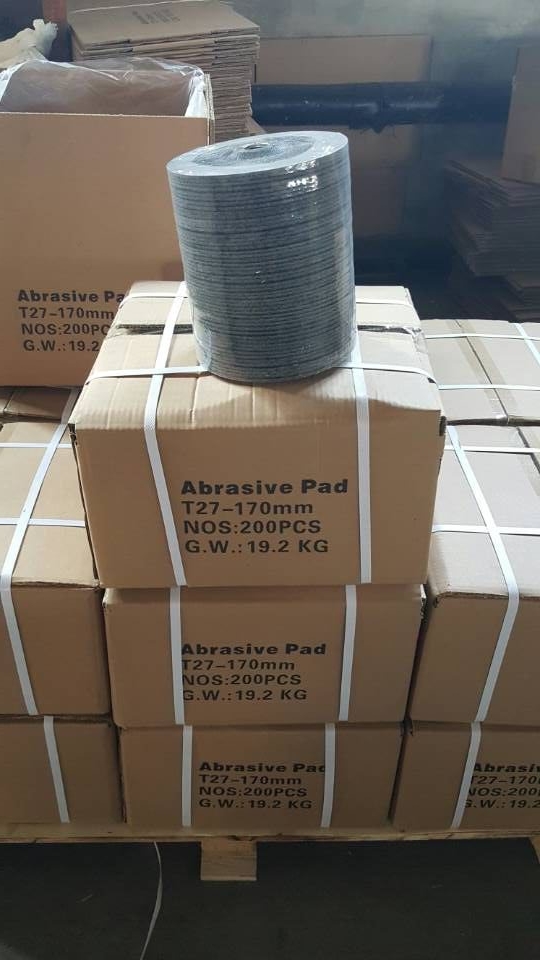

Packing: Firstly it is packed with plastic bag,then it will be put into durable carton box.At last a certain number of boxes will be put to wooden pallets orderly.

Thickness: 2.4mm-3.5mm(Tolerance:±0.3mm)

Inner diameter: 16.3mm,22.3mm(Tolerance:±0.15mm)

Outer diameter: 75mm,85mm,90mm,95mm,105(107)mm,115(117)mm,140mm,170mm, 178mm

Applications: Used as the backing pads of Flap Disc,Mop Disc and Flap Wheel.



Layer spec H K F Thickness Angel

Q-ty of   layers





Type d±0.5   mm H   +0,16 mm К±0,5   mm F  min, mm T+0.6   min, mm 8°±1°
1 – flat 7 105 22,23 45 4,6 2.3
1 - flat 7 115 22,23 45 4,6 2.3
1 – flat 8 140 22,23 45 4,6 2.6
1 – flat 8 170 22,23 45 4,6 2.6
2-convex 7 105 22,23 45 4,6 2.3
2-convex 7 115 22,23 45 4,6 2.3
2- convex 8 140 22,23 45 4,6 2.6
2- convex 8 170 22,23 45 4,6 2.6


QQ图片20160510111019
