Chemical Composition (% by weight) | |||||||
C | Cr | Ni | Si | Mn | S | P | |
max | max | max | |||||
Stainless steel cut wire shot (SUS202) | 0.15 max | 17.0-19.0 | 4.0-6.0 | 1.0 | 7.5-10.0 | 0.03 | 0.06 |
stainless steel cut wire shot (SUS304) | 0.07max | 17.0-19.0 | 8.0-10.0 | 1.0 | 2.0 max | 0.035 | |
Stainless steel cut wire shot (SUS316) | 0.08 max | 16.0-18.5 | 10.0-14.0 | 1.0 | 2.0 max | 0.035 | |
Stainless steel cut wire shot (SUS430) | 0.12 max | 16.0-18.0 | 0 | 0.75 | 1.25 max | 0.035 | |
Carbon steel cut wire shot | 0.45-0.75 | - | - | 0.1-0.3 | 0.3-1.2 | 0.05 | 0.05 |

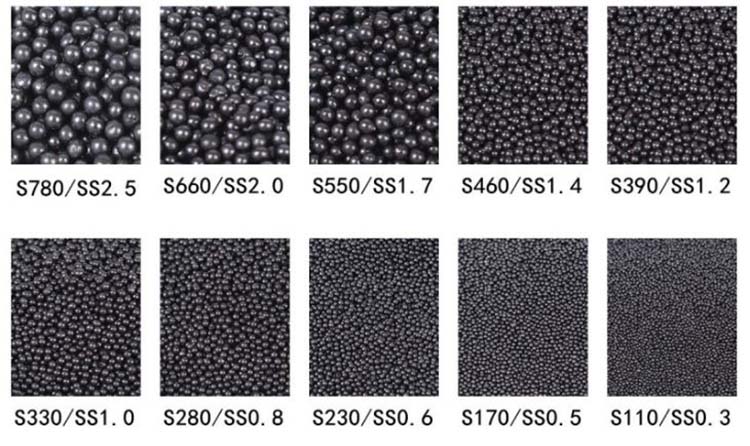

Available Sizes | ||||
Material | stainless steel cut wire shot | Conditioned stainless steel cut wire shot (SUS304) | carbon steel cut wire shot | |
(SUS430) | (SUS304) | |||
Size(mm) | 300-450 HV | 400-500 HV | 500 HV | HRC45-50 |
0.3 | v | v | v | - |
0.4 | v | v | v | - |
0.5 | v | v | v | - |
0.6 | v | v | v | - |
0.7 | v | v | v | - |
0.8 | v | v | v | v |
1.0 | v | v | v | v |
1.2 | v | v | v | v |
1.5 | v | v | v | v |
2.0 | v | v | v | v |
2.5 | v | v | v | v |
Apply to equipment
Stainless Steel Cut Wire Shot are normally used for shotpeening and typically used for and the blasting machine with drum type, chain type, lifting hook type, crawler type, pass type, rotating table type, accumulation type, marching type and car type. Also can used for shot blast equipments, pretreatment of the production line, and sand blasting room. Hardness is 20-40HRC.
Package
25kg per bag ,40 bags in one pallet 25kg per bag ,40 bags in one jumbo bag 25kg per paper bag ,40 bags in one plywood pallet.We can carry out woven bag packaging, ton bag packaging, wood tray packaging, plastic packing packaging and the like according to customer requirement.
