● Introduction to Boron Carbide Ceramic Plates
● Physical and Chemical Properties
● Key Benefits of Boron Carbide Ceramic Plates
>> Exceptional Hardness and Wear Resistance
>> Chemical Inertness and Corrosion Resistance
>> Multi-hit Ballistic Protection
● Applications of Boron Carbide Ceramic Plates
>> Industrial Abrasives and Cutting Tools
>> High-Temperature and Nuclear Applications
● Comparison with Other Armor Materials
● Future Trends and Innovations
● FAQ
>> 1. What are the benefits of boron carbide ceramic plates?
>> 2. Where are boron carbide plates commonly used?
>> 3. How are boron carbide ceramic plates manufactured?
>> 4. What are the limitations of boron carbide plates?
>> 5. Are there new developments in boron carbide armor?
Boron carbide ceramic plates are among the most advanced materials used in modern protective armor and industrial applications. Known for their extraordinary hardness, light weight, and chemical stability, boron carbide ceramic plates have revolutionized the fields of ballistic protection, precision machining, and high-temperature industrial processes. This comprehensive article explores the myriad benefits of boron carbide ceramic plates, detailing their physical and chemical properties, manufacturing processes, key applications, and future prospects.
Supported by detailed explanations videos, and scientific data, this article will provide a thorough understanding of why boron carbide ceramic plates are considered a superior choice in demanding environments. The article concludes with a FAQ section answering common questions about these remarkable materials.

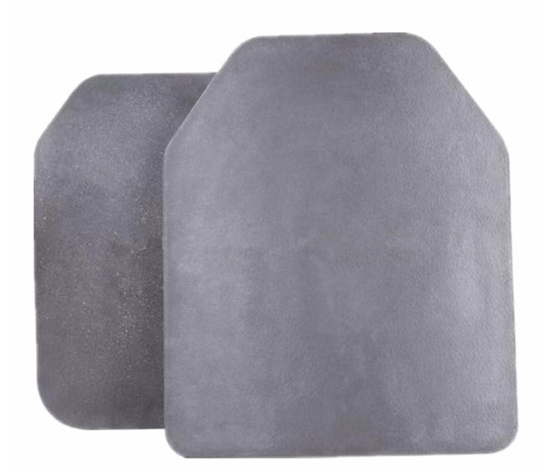

Boron carbide ceramic plates are manufactured from boron and carbon atoms arranged in a crystalline lattice, forming one of the hardest known materials. Ranking third in hardness after diamond and cubic boron nitride, boron carbide offers a unique combination of high strength and low density. These plates are widely used in ballistic armor systems, providing protection against high-velocity projectiles while maintaining mobility due to their light weight.
| Property | Description |
|---|---|
| Chemical Formula | B₄C (approximate) |
| Density | ~2.52 g/cm3 (lightweight) |
| Hardness (Mohs) | 9.5 (extremely hard) |
| Melting Point | ~2450 °C |
| Flexural Strength | ~400 MPa |
| Fracture Toughness | ~3.5 MPa·m1/2 |
| Thermal Conductivity | 30 – 35 W/m·K |
| Chemical Stability | Highly inert and corrosion resistant |
These properties make boron carbide ceramic plates suitable for applications requiring extreme durability and resistance to harsh environments.
Boron carbide ceramic plates are produced through advanced powder processing and sintering techniques:
- Powder Production: Boron carbide powder is synthesized via carbothermal or magnesiothermal reduction of boron oxide with carbon.
- Powder Processing: Milling and classification ensure uniform particle size and purity.
- Sintering: Hot pressing or spark plasma sintering densifies the powder into solid ceramic plates with minimal porosity.
- Machining: Diamond tools are used to cut and finish the plates to precise dimensions.
- Composite Assembly: Plates are often backed with composite fibers like Kevlar or Dyneema for enhanced impact absorption.
Boron carbide's hardness makes it highly resistant to abrasion and penetration. This allows the plates to withstand impacts from armor-piercing rounds and shrapnel, making them ideal for personal and vehicle armor.
With a density significantly lower than steel or alumina ceramics, boron carbide plates reduce the weight burden on soldiers and vehicles, enhancing mobility and operational endurance.
Boron carbide maintains its mechanical properties at elevated temperatures, enabling use in high-temperature environments without degradation.
The material is resistant to most acids, alkalis, and oxidation up to 1000°C, ensuring durability in harsh chemical and environmental conditions.
Boron carbide plates can absorb multiple impacts without catastrophic failure, providing sustained protection in combat scenarios.
Boron carbide plates are the core of modern ballistic vests used by military and law enforcement, offering superior protection with reduced weight compared to traditional steel plates.
Lightweight boron carbide armor enhances protection for armored vehicles, helicopters, and aircraft, improving fuel efficiency and maneuverability.
Due to its hardness, boron carbide powder is used in grinding, polishing, and cutting applications, enabling precision machining of hard materials.
Boron carbide's neutron absorption properties and thermal stability make it valuable in nuclear reactors and high-temperature industrial processes.
| Material | Density (g/cm³) | Hardness (Mohs) | Ballistic Protection | Weight Advantage | Cost |
|---|---|---|---|---|---|
| Boron Carbide | ~2.52 | 9.5 | High | High | High |
| Alumina | ~3.95 | 9 | Moderate | Moderate | Moderate |
| Steel | ~7.85 | 4-5 | High | Low | Low |
| Silicon Carbide | ~3.21 | 9.3 | High | Moderate | Moderate |
Boron carbide offers the best balance of hardness and weight for ballistic protection.
- Brittleness: Susceptible to cracking under impact or stress concentration.
- High Cost: Expensive raw materials and complex manufacturing processes.
- Machining Difficulty: Requires specialized diamond tooling.
- Supply Constraints: Limited production capacity affects availability.
- Development of composite ceramics to improve toughness and reduce brittleness.
- Advances in additive manufacturing for complex armor geometries.
- Research into nano-engineered powders for enhanced ballistic performance.
- Expansion into civilian protective gear and industrial wear parts.
Boron carbide ceramic plates represent a pinnacle of modern ballistic protection technology. Their combination of extreme hardness, lightweight design, and chemical and thermal stability makes them ideal for personal body armor, vehicle and aircraft protection, and specialized industrial applications. Despite challenges such as brittleness and high cost, ongoing research and manufacturing innovations continue to enhance their performance and accessibility. Understanding the properties and applications of boron carbide ceramic plates is essential for selecting effective protective solutions in defense and beyond.
Exceptional hardness, lightweight, thermal stability, chemical inertness, and multi-hit ballistic protection.
In personal body armor, vehicle and aircraft armor, industrial abrasives, and nuclear applications.
Via powder synthesis, sintering, machining, and composite assembly with fiber backings.
Brittleness, high cost, machining difficulty, and supply constraints.
Yes, including composite ceramics, additive manufacturing, and nano-engineered powders.
