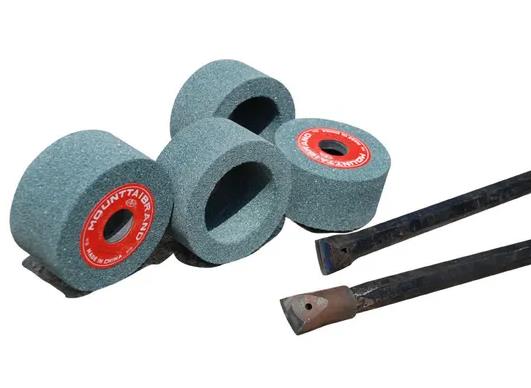

Silicon carbide (SiC) is a highly durable material known for its hardness and thermal stability, making it a popular choice in various industrial applications, including semiconductor manufacturing, automotive components, and cutting tools. Drilling SiC requires specialized techniques and tools due to its unique properties. This article will explore the methods, tools, and best practices for effectively drilling silicon carbide.
Silicon carbide possesses several remarkable properties that make it suitable for various applications:
- Hardness: SiC ranks high on the Mohs scale, making it one of the hardest materials available. This property is crucial in applications where wear resistance is essential.
- Thermal Conductivity: It has excellent thermal conductivity, which is beneficial in high-temperature applications. This allows SiC to dissipate heat effectively, making it ideal for electronic components.
- Chemical Resistance: SiC is resistant to chemical corrosion, making it suitable for harsh environments. Its stability in acidic and alkaline conditions ensures longevity in demanding applications.
- Mechanical Strength: The mechanical strength of SiC allows it to withstand significant stress without deformation, which is vital in structural applications.
These properties make SiC an ideal choice for many applications but also pose challenges when it comes to machining and drilling.
Drilling silicon carbide presents several challenges:
- Brittleness: SiC is brittle, which can lead to cracking or chipping during the drilling process. This brittleness necessitates careful handling and technique adjustments.
- Tool Wear: Conventional drill bits wear out quickly when used on SiC due to its hardness. Therefore, using specialized tools designed for hard materials is crucial.
- Heat Generation: The drilling process generates significant heat, which can damage both the workpiece and the tool if not managed properly. Effective cooling techniques are essential to mitigate this issue.
- Precision Requirements: Many applications require precise hole sizes and locations. Achieving this precision in a brittle material like SiC can be challenging without proper equipment and techniques.

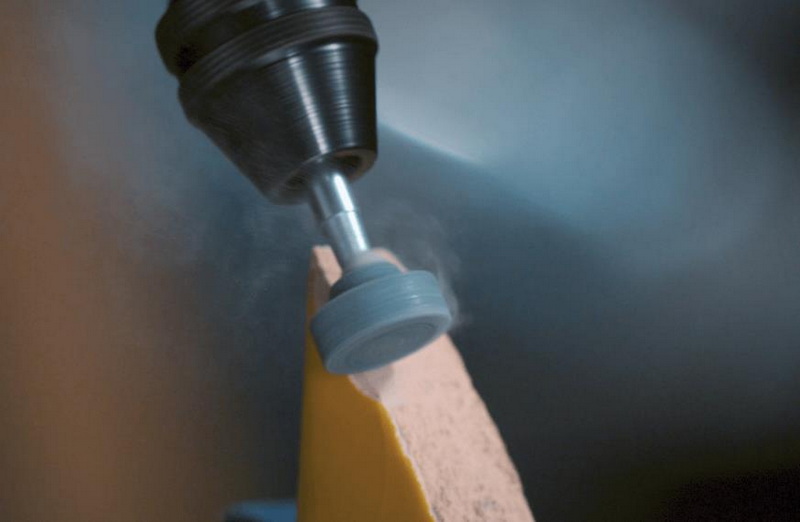

Diamond drilling is one of the most effective methods for drilling silicon carbide. This technique utilizes diamond-coated drill bits that can withstand the hardness of SiC.
Advantages of Diamond Drilling:
- Long tool life due to diamond's hardness.
- Ability to create precise holes with minimal chipping.
- Versatility in hole sizes and shapes.
Process:
1. Select a Diamond Drill Bit: Choose a diamond drill bit suitable for the diameter of the hole required. Bits come in various sizes and configurations, including core bits for larger holes.
2. Use Cooling Lubricant: Apply a cooling lubricant to manage heat and reduce friction during drilling. Water or specialized cutting fluids can be effective.
3. Maintain Steady Feed Rate: Keep a steady feed rate to prevent excessive pressure on the drill bit. A consistent feed helps avoid overheating and tool damage.
4. Monitor Progress: Regularly check the hole depth and diameter to ensure precision throughout the drilling process.
Laser drilling involves using high-powered lasers to vaporize material in a controlled manner. This method is particularly effective for creating small-diameter holes with high precision.
Advantages of Laser Drilling:
- Minimal mechanical stress on the material.
- High precision and control over hole diameter.
- Ability to drill complex shapes that may be difficult with traditional methods.
Process:
1. Set Up Laser System: Configure a laser system with appropriate power settings based on the thickness of the SiC material being drilled.
2. Focus Laser Beam: Focus the laser beam on the desired drilling location with precision. The focal point should be adjusted based on material thickness.
3. Adjust Parameters: Modify parameters such as pulse duration and repetition rate for optimal results, ensuring effective vaporization without damaging surrounding material.
4. Cooling Considerations: While laser drilling typically generates less heat than traditional methods, additional cooling may still be necessary depending on application requirements.
Water jet cutting uses high-pressure water mixed with abrasive particles to cut through materials like silicon carbide effectively.
Advantages of Water Jet Cutting:
- No heat-affected zone (HAZ), preventing thermal damage.
- Versatility in cutting various shapes and sizes.
- Environmentally friendly process as it does not produce hazardous waste.
Process:
1. Configure Water Jet Machine: Set up the water jet cutting machine with appropriate pressure settings (often exceeding 60,000 psi) based on material thickness and desired cutting speed.
2. Select Suitable Abrasives: Choose abrasives that complement the water jet process for optimal results; garnet is commonly used due to its effectiveness with hard materials like SiC.
3. Direct Water Jet at Specified Angle: Aim the water jet at the specified angle and distance from the workpiece to achieve clean cuts without excessive wear on equipment.
4. Monitor Cutting Process: Continuously monitor the cutting process to ensure quality control and adjust parameters as needed based on performance feedback.
These bits are essential for effective drilling in silicon carbide due to their hardness and durability. They come in various shapes (e.g., cylindrical, tapered) depending on specific application needs.
For laser drilling, high-quality laser systems capable of focusing energy precisely are necessary. CO2 lasers or solid-state lasers are commonly used depending on application requirements.
This includes pumps capable of generating high pressure (typically above 60,000 psi) and systems for mixing abrasives with water effectively.
To achieve optimal results when drilling silicon carbide, consider the following best practices:
1. Use Proper Cooling Techniques: Always employ cooling lubricants or water to manage heat during drilling effectively; this helps prolong tool life and maintain precision.
2. Select Appropriate Tools: Use diamond-coated or specialized drill bits designed specifically for hard materials like silicon carbide; ensure they are rated for your specific application needs.
3. Control Feed Rate and Speed: Adjust feed rates and speeds based on material thickness; slower speeds may be necessary for thicker materials to minimize stress on both tool and workpiece.
4. Monitor Tool Wear Regularly: Regularly check drill bits for wear; replace them as necessary to maintain efficiency and prevent damage during operation.
5. Perform Test Drills When Necessary: When working with new setups or materials, perform test drills on scrap pieces first to fine-tune parameters before proceeding with production runs.
6. Keep Work Area Clean: Maintain a clean work area free from debris that could interfere with machining; cleanliness helps ensure safety and efficiency during operations.
Drilling silicon carbide requires careful consideration of its unique properties and challenges. By utilizing appropriate methods such as diamond drilling, laser drilling, or water jet cutting along with best practices in tool selection and cooling techniques, one can achieve successful results in machining this durable material while minimizing risks associated with brittleness and tool wear.
Silicon carbide is commonly used in semiconductors, abrasives, cutting tools, automotive components, and high-performance ceramics due to its hardness and thermal stability.
Diamond drilling is preferred because diamond bits can withstand SiC's hardness while providing longer tool life and better precision compared to conventional drill bits.
To prevent chipping, use cooling lubricants during drilling, select appropriate drill bits designed for hard materials, maintain a steady feed rate throughout the process, and avoid excessive pressure on the tool.
Yes, laser drilling can be adapted for thicker materials by adjusting power settings accordingly; however, careful consideration must be given to avoid overheating or damaging surrounding areas during operation.
Common issues include rapid tool wear due to hardness, heat generation leading to thermal damage if not managed properly, cracking or chipping of the material during machining processes, as well as achieving precise hole sizes under challenging conditions.
