Silicon carbide (SiC) is a semiconductor material celebrated for its exceptional hardness, impressive thermal conductivity, and its ability to reliably operate in high-temperature and high-voltage environments. These remarkable properties render it an ideal choice for a broad spectrum of applications, spanning from advanced electronics and precision optics to various demanding industrial processes. However, the machining of silicon carbide poses substantial challenges, primarily attributed to its inherent hardness and brittle nature. This article delves into the feasibility of employing single point diamond turning (SPDT) for machining silicon carbide, thoroughly examining the underlying mechanisms, associated advantages, inherent limitations, and the most recent advancements in this dynamic field.

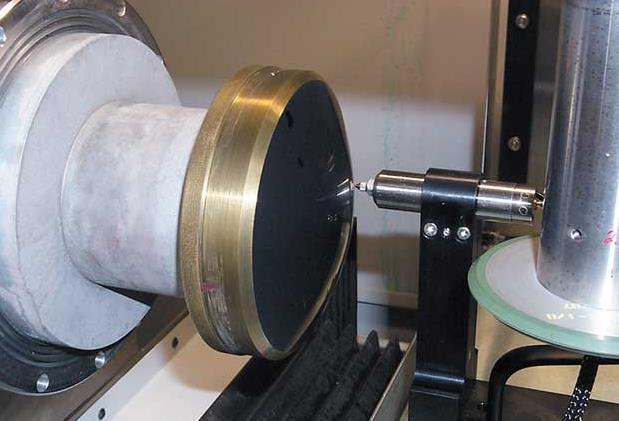

Single point diamond turning is a precision machining process that relies on a diamond-tipped tool to meticulously remove material from a workpiece in a single, continuous pass. This technique is particularly effective for the production of high-precision components that require exacting tolerances and superior surface finishes. The SPDT process is characterized by several key attributes:
- High Precision: SPDT is capable of achieving tolerances in the micrometer range, making it suitable for applications where dimensional accuracy is paramount.
- Superior Surface Finish: The process can produce surfaces with roughness values as low as a few nanometers, ensuring optimal performance in optical and electronic applications.
- Material Removal Mechanism: SPDT typically operates in either ductile or brittle regimes, depending on the material properties and precisely controlled cutting parameters. The goal is to achieve ductile mode machining for materials like silicon carbide.
Employing SPDT for machining silicon carbide presents several compelling advantages:
- Ductile Mode Machining: Recent studies have demonstrated that SPDT can be performed in the ductile regime for silicon carbide under optimized conditions. This results in smoother finishes and reduced tool wear compared to traditional methods that operate primarily in brittle mode.
- Reduced Tool Wear: By carefully optimizing cutting conditions and utilizing advanced tool materials specifically designed for machining hard materials, the wear on diamond tools can be significantly minimized, thereby extending the effective tool life.
- Versatility: SPDT can be flexibly adapted to machine a wide variety of shapes and complex geometries, making it suitable for intricate designs that are often required in high-tech applications.
Despite its numerous advantages, machining silicon carbide with SPDT presents several noteworthy challenges that need to be addressed:
- High Hardness: SiC exhibits an exceptionally high hardness of approximately 36 GPa, which inevitably leads to accelerated tool wear and necessitates frequent tool changes, thereby increasing operational costs.
- Brittleness: The brittle nature of silicon carbide can result in undesirable chipping and cracking during the machining process if cutting parameters are not meticulously controlled and carefully managed.
- Thermal Management: The significant heat generated during the cutting process can adversely affect both the workpiece and the cutting tool. Effective cooling strategies, such as the use of specialized coolants and optimized cutting speeds, are essential to maintain optimal machining performance and prevent thermal damage.
Recent research endeavors have focused on gaining a deeper understanding of the intricate mechanisms involved in SPDT of silicon carbide. A molecular dynamics simulation study revealed that a high magnitude of compression in the cutting zone leads to a critical order-disorder transition between sp3 and sp2 hybridization states in SiC. This transition is significant because it profoundly influences the wear mechanisms that occur on the diamond tool during the SPDT process.
1. Ductile Regime Achievable: Research indicates that ductile mode machining is indeed possible under specific, carefully controlled conditions, leading to lower surface roughness and improved overall surface integrity of the machined part.
2. Tool Wear Mechanisms: The primary wear mechanisms are significantly influenced by key cutting parameters such as cutting speed, feed rate, and depth of cut. Fine-tuning these parameters can substantially reduce tool wear and extend tool life.
3. Surface Quality Improvements: Studies have consistently shown that optimized SPDT parameters can yield surfaces with roughness values below 60 nm, which is crucial for high-precision applications.
To effectively overcome the challenges associated with SPDT of silicon carbide, several advanced techniques have been developed and refined:
- Laser-Assisted Machining (LAM): Integrating laser heating with SPDT helps to selectively soften the material at the cutting interface. This facilitates easier material removal, reduces cutting forces, and significantly minimizes tool wear.
- Vibration-Assisted Cutting (VAC): Introducing controlled vibrations during the cutting process can help minimize cutting forces and improve the resulting surface finish by effectively reducing chatter and promoting smoother material removal.
- Nanoparticle Lubrication: The use of advanced lubricants containing nanoparticles has been shown to enhance cooling efficiency and reduce friction during the machining process. This helps to prolong tool life and improve the quality of the machined surface.
Understanding the material properties of silicon carbide is crucial to understanding the challenges and optimizing the SPDT process.
- Crystal Structure: Silicon carbide exists in several polytypes, each with different mechanical properties. The most common polytypes are 3C-SiC, 4H-SiC, and 6H-SiC.
- Hardness and Fracture Toughness: As previously mentioned, the high hardness of SiC makes it resistant to wear but also contributes to its brittleness. The fracture toughness is relatively low, meaning it is prone to cracking under stress.
- Thermal Properties: SiC has excellent thermal conductivity and low thermal expansion, making it suitable for high-temperature applications. However, the heat generated during machining needs to be carefully managed to avoid thermal damage.

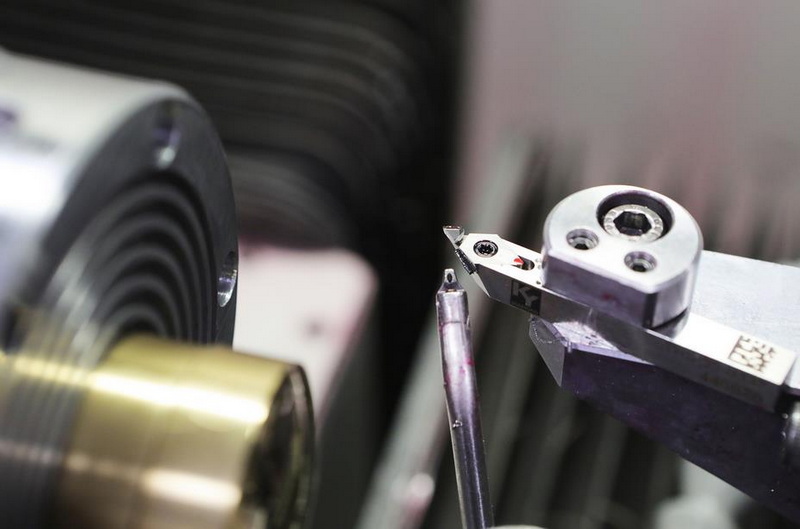

The choice of diamond tool material and geometry is critical in SPDT of silicon carbide.
- Single Crystal Diamond: These tools provide the highest possible sharpness and are essential for achieving nanometer-level surface finishes.
- Tool Geometry: The rake angle, clearance angle, and cutting-edge radius are critical parameters that must be optimized for each specific application. A negative rake angle can improve tool life but may increase cutting forces.
Effective cooling and lubrication are crucial for managing heat, reducing friction, and removing chips during SPDT of silicon carbide.
- Types of Coolants: Common coolants include oil-based coolants, water-based coolants, and cryogenic coolants.
- Application Methods: Coolants can be applied using flood cooling, mist cooling, or through-the-tool cooling.
- Environmental Considerations: The choice of coolant should also consider environmental impact and disposal methods.
Accurate measurement and characterization of the machined surface are essential for process control and quality assurance.
- Surface Roughness Measurement: Atomic force microscopy (AFM) and white light interferometry are commonly used to measure surface roughness at the nanometer scale.
- Defect Detection: Scanning electron microscopy (SEM) and optical microscopy can be used to detect surface defects such as scratches, cracks, and pits.
Machined silicon carbide components are widely utilized across various industries owing to their superior properties and exceptional performance characteristics:
- Electronics: SiC is extensively used in advanced power devices such as MOSFETs and diodes, which are capable of operating efficiently at high voltages and elevated temperatures.
- Optics: Precision machined SiC components are indispensable in a wide array of optical systems, primarily due to their excellent thermal stability and remarkably low thermal expansion coefficients, ensuring minimal distortion under varying thermal conditions.
- Aerospace: Lightweight SiC components are increasingly being utilized in critical aerospace applications where durability and reliable performance under extreme and often unpredictable conditions are of paramount importance.
Several emerging trends are expected to shape the future of SPDT of silicon carbide.
- Artificial Intelligence (AI) and Machine Learning (ML): AI and ML algorithms can be used to optimize cutting parameters, predict tool wear, and improve process control.
- Additive Manufacturing (AM): Combining AM with SPDT can enable the fabrication of complex SiC components with high precision and surface quality.
- Sustainable Machining: Research is focusing on developing more environmentally friendly coolants and machining processes.
Single point diamond turning represents a highly viable and effective method for precisely machining silicon carbide, enabling the attainment of exceptionally high precision and superior surface finishes. While challenges such as tool wear and the inherent brittleness of SiC remain significant concerns that require careful attention, ongoing research and development of advanced techniques, including laser assistance and vibration-assisted cutting, hold tremendous promise for substantially improving machining outcomes. As industries continue to seek out materials capable of performing reliably and efficiently under increasingly demanding conditions, mastering SPDT for silicon carbide will be absolutely crucial for facilitating future technological advancements and ensuring continued progress.
Single point diamond turning (SPDT) is a precision machining process that uses a diamond-tipped tool to remove material from a workpiece with high accuracy, producing parts with exceptional surface finishes and tight tolerances.
Silicon carbide is difficult to machine due to its exceptionally high hardness (approximately 36 GPa) and its inherent brittle nature, which can easily lead to chipping, cracking, and other surface defects during conventional machining processes.
Yes, while SPDT is commonly used for hard and brittle materials like silicon carbide, it can also be effectively applied to a wide variety of other materials, including various metals, polymers, and ceramics, especially in applications that require ultra-precise machining.
Effective techniques to reduce tool wear during SPDT include carefully optimizing cutting parameters (such as speed, feed rate, and depth of cut), utilizing laser assistance to selectively soften the material ahead of the cutting tool, employing vibration-assisted cutting to reduce cutting forces, and using advanced nanoparticle lubrication to minimize friction and heat.
Several key industries benefit significantly from the availability of precisely machined silicon carbide components. These include the electronics industry (for high-power devices), the optics industry (for high-precision lenses and mirrors), and the aerospace industry (for durable, lightweight components that can withstand extreme conditions).
