Boron carbide is a remarkable ceramic material known for its extreme hardness, low density, and outstanding thermal and chemical stability. It is widely used in applications ranging from ballistic armor and abrasives to nuclear technology and electronics. One of the fundamental properties that influence its performance in these applications is its density.This comprehensive article explores the density of boron carbide in detail, covering its physical and chemical properties, factors affecting density, manufacturing processes, and how density impacts its applications. Supported by images and scientific data, this article also includes a FAQ section to clarify common questions about boron carbide density.
Boron carbide (chemical formula approximately B₄C) is a synthetic ceramic composed of boron and carbon atoms. It is one of the hardest known materials, ranking third after diamond and cubic boron nitride. Boron carbide is prized for its low density, high hardness, chemical inertness, and neutron absorption properties.

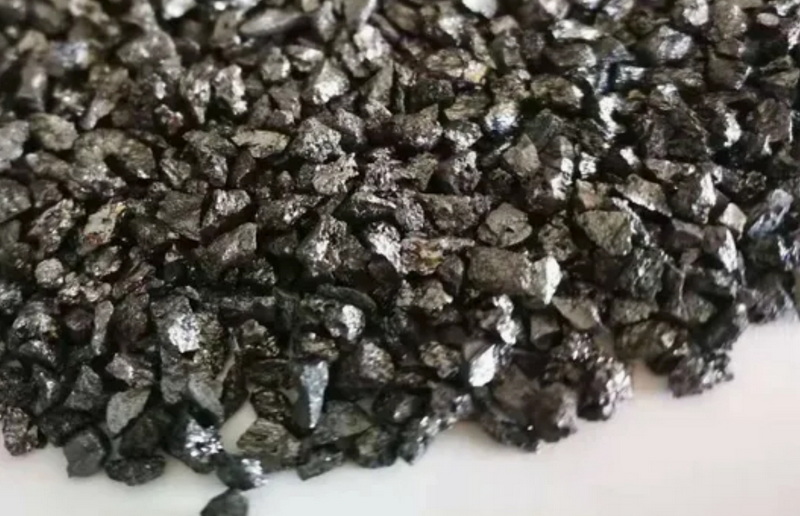

It appears as a black or dark gray powder or crystalline solid with a metallic luster. Its unique crystal structure and bonding make it an exceptional material for demanding applications such as armor plating, abrasives, cutting tools, and nuclear reactors.
Boron carbide's structure consists of:
- B₁₂ icosahedra: Clusters of twelve boron atoms arranged in a cage-like geometry.
- C-B-C chains: Linear chains of carbon and boron atoms linking the icosahedra.
This rhombohedral crystal structure provides high strength and hardness. The exact stoichiometry can vary, with carbon content ranging roughly from 8 to 20 atomic percent, affecting properties including density.
| Property | Value / Description |
|---|---|
| Appearance | Black or dark gray crystalline powder |
| Hardness (Mohs) | 9.3 - 9.5 (extremely hard) |
| Melting Point | ~2450 °C |
| Boiling Point | >3500 °C |
| Elastic Modulus | ~410 - 460 GPa |
| Fracture Toughness | ~3.5 - 5 MPa·m1/2 |
| Thermal Conductivity | 30 - 35 W/m·K |
| Electrical Properties | Semiconductor with ~2.09 eV bandgap |
The density of boron carbide is typically reported as approximately 2.50 to 2.52 g/cm³ (grams per cubic centimeter) for commercially produced materials. This value can vary slightly depending on:
- Purity of the material
- Carbon content and stoichiometry
- Manufacturing method and resulting porosity
For example, natural isotopic composition boron carbide has a density around 2.52 g/cm³, whereas boron carbide enriched in the isotope can have a slightly lower density (~2.37 g/cm³).
The density is significantly lower than many other ceramics and metals, making boron carbide a lightweight yet extremely hard material.
- Variations in the boron-to-carbon ratio affect lattice parameters and density.
- Carbon-rich compositions tend to have slightly higher densities.
- Porosity reduces the effective density of sintered boron carbide ceramics.
- High-density sintering techniques aim to minimize porosity and maximize mechanical properties.
- Hot pressing, spark plasma sintering, and other advanced methods produce denser materials.
- Powder particle size and distribution influence packing density and sintering behavior.
- Addition of sintering aids (boron, carbon, aluminum) can improve densification but may slightly alter density.
- Boron carbide composites with silicon carbide or other phases have modified densities.
- Archimedes' Principle: Common method using fluid displacement to measure bulk density.
- Helium Pycnometry: Measures true density by gas displacement, excluding open porosity.
- X-ray Computed Tomography: Non-destructive imaging to assess porosity and density distribution.
- Microscopy and Image Analysis: Quantifies porosity and microstructure affecting density.
Accurate density measurement is vital for quality control and correlating properties with performance.
- Mechanical Strength: Higher density correlates with increased strength and fracture toughness.
- Hardness: Denser materials exhibit higher hardness due to fewer defects.
- Wear Resistance: Reduced porosity improves abrasion resistance.
- Thermal Conductivity: Higher density enhances heat dissipation.
- Neutron Absorption: Density affects effectiveness in nuclear shielding.
Optimizing density is key to maximizing boron carbide's performance in demanding applications.
- Hot Pressing: Applies heat and pressure simultaneously to densify powder.
- Pressureless Sintering: Sintering without pressure, often resulting in lower density.
- Spark Plasma Sintering (SPS): Uses pulsed electric current and pressure for rapid densification.
- Additive Manufacturing: Emerging methods for complex shapes with controlled density.
Process parameters such as temperature, pressure, and holding time are critical for achieving high-density boron carbide.

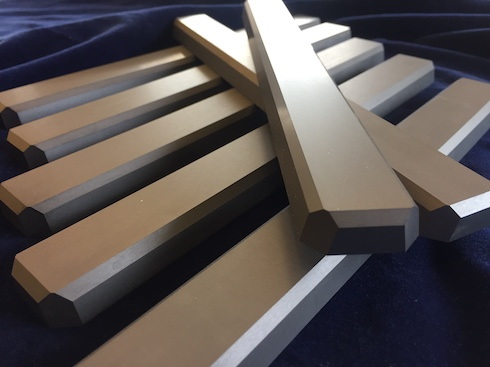

- Lightweight, high-density boron carbide plates provide superior protection.
- Density affects weight and ballistic performance.
- High-density boron carbide powders improve tool life and cutting efficiency.
- Dense boron carbide is used for neutron absorption in control rods and shielding.
- Density influences thermal and electrical properties in semiconductor applications.
| Material | Density (g/cm³) | Hardness (Mohs) | Typical Uses |
|---|---|---|---|
| Boron Carbide | 2.50 - 2.52 | 9.3 - 9.5 | Armor, abrasives, nuclear |
| Silicon Carbide | 3.21 | 9 - 9.5 | Abrasives, electronics |
| Alumina (Al₂O₃) | 3.95 | 9 | Ceramics, cutting tools |
| Zirconia | 5.68 | 8.5 | Dental, structural ceramics |
Boron carbide's low density combined with high hardness makes it uniquely suited for applications requiring lightweight, wear-resistant materials.
- Achieving near-theoretical density is challenging due to strong covalent bonding.
- Additives and advanced sintering methods improve densification.
- Research into nanostructured boron carbide aims to enhance mechanical properties further.
- Composite materials balance density, toughness, and cost.
The boron carbide density typically ranges around 2.50 to 2.52 g/cm³, reflecting its low weight and high strength. This density, combined with its extreme hardness and chemical stability, makes boron carbide a uniquely valuable ceramic for demanding applications such as ballistic armor, abrasives, and nuclear shielding. While manufacturing challenges exist in achieving full densification, advances in sintering and composite technologies continue to improve material performance. Understanding boron carbide's density and its impact on properties is essential for optimizing its use in advanced materials and engineering applications.
The typical density of boron carbide is approximately 2.50 to 2.52 g/cm³.
Higher density correlates with greater hardness, strength, wear resistance, and ballistic protection.
Yes, density varies with stoichiometry, porosity, manufacturing process, and additives.
Common methods include Archimedes' principle, helium pycnometry, and X-ray computed tomography.
It is lower than alumina and zirconia but offers superior hardness and ballistic properties.
