Boron carbide is a remarkable ceramic material celebrated for its exceptional hardness and a diverse range of applications. Understanding its crystal structure is fundamental to appreciating its unique properties. This article provides a detailed exploration of the boron carbide crystal structure, its components, and how it influences the material's behavior.

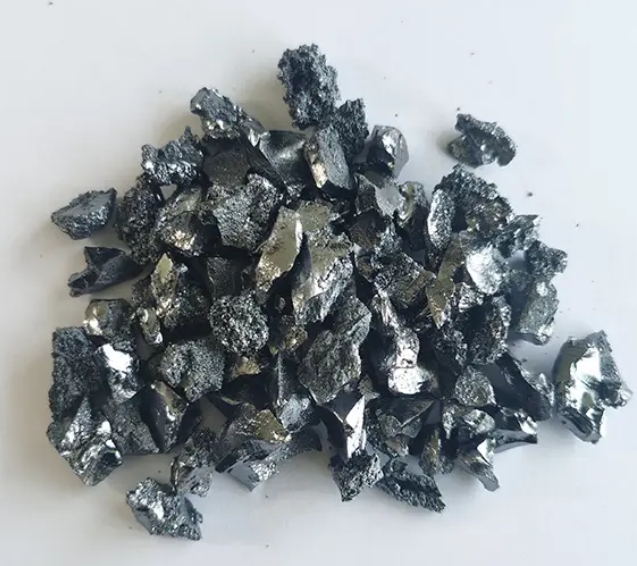

Boron carbide is a boron-carbon compound with extreme hardness, making it ideal for applications like abrasives, armor, and high-performance tools. Its chemical formula is commonly represented as B₄C, though the actual stoichiometry can vary. The boron carbide crystal structure is complex and plays a crucial role in dictating its mechanical and electrical properties.
The boron carbide crystal structure directly influences its high hardness, wear resistance, and thermal stability. Knowing the arrangement of atoms helps engineers and scientists tailor the material for specific applications. Exploring the boron carbide crystal structure enables better material design and performance optimization.

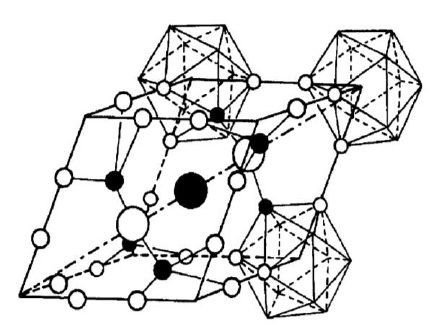

The boron carbide crystal structure is characterized by two primary structural units: the B₁₂ icosahedron and the C-B-C or C-□-C (where □ denotes a vacancy) chain. These units arrange themselves in a rhombohedral lattice.
The B₁₂ icosahedron is a highly stable cluster of twelve boron atoms arranged in a twenty-faced polyhedron. This structure contributes significantly to the material's hardness because of the strong covalent bonds between the boron atoms.
Located between the icosahedra are linear chains of atoms. Ideally, these are C-B-C chains, where a boron atom is positioned between two carbon atoms. However, these chains can also exhibit vacancies, leading to C-□-C configurations. The presence and arrangement of these chains affect the overall stability and electronic properties of boron carbide.
The B₁₂ icosahedra and the connecting chains are arranged in a rhombohedral lattice, which is a type of crystal system characterized by three equal axes, all inclined at equal angles other than 90 degrees. This lattice arrangement contributes to the overall structural integrity and unique properties of boron carbide.
The boron carbide crystal structure belongs to the space group R3̄m (No. 166), which is a trigonal space group. This classification describes the symmetry elements present in the crystal lattice, influencing its physical properties.
The rhombohedral lattice of boron carbide has lattice constants of approximately a = 0.56 nm and c = 1.212 nm. These parameters define the size and shape of the unit cell, influencing the material's density and mechanical behavior.
The atomic positions within the boron carbide crystal structure are not always fixed. Disorder arises from the possibility of carbon and boron atoms substituting for each other within the icosahedra and the chains. This disorder affects the material's properties, particularly its electrical conductivity and thermal behavior.
Carbon atoms can substitute for boron atoms within the B₁₂ icosahedra, leading to structural variations. This incorporation of carbon influences the bonding characteristics and the electron deficiency of the structure. Some studies suggest formulas such as (B₁₁C)CBC, indicating carbon occupying a site within the icosahedron.
Vacancies, particularly in the C-B-C chains, are also common. These vacancies can lead to the formation of C-□-C configurations, affecting the local electronic structure and mechanical properties. Vacancies introduce localized amorphization and can contribute to the material's ductility.
Boron carbide isn't a single compound but a family of compounds with varying boron-to-carbon ratios. This non-stoichiometry significantly impacts the boron carbide crystal structure and its properties.
While the common formula is B₄C, a more representative formula considering the icosahedral structure is B₁₂C₃. This formula reflects the arrangement of twelve boron atoms in the icosahedron and three carbon atoms in the chain per unit cell.
Boron carbide often exhibits carbon deficiency, represented by combinations of B₁₂C₃ and B₁₂C₂ units. This deficiency affects the bonding and leads to structural imperfections.
Boron-rich variants like B₁₄C, or B₁₂(CBB), are also possible, where additional boron atoms occupy positions within the chains. These variations alter the material properties, influencing hardness and electrical conductivity.
The bonding in the boron carbide crystal structure is primarily covalent, contributing to its high hardness and stability. However, the structure is electron-deficient, leading to complex bonding interactions.
Strong covalent bonds exist within the B₁₂ icosahedra and between the chain atoms. These bonds create a rigid, three-dimensional network that resists deformation.
The boron carbide crystal structure is electron-deficient, meaning it doesn't have enough electrons to form traditional two-center, two-electron bonds. This leads to multi-center bonding and partial electron delocalization.
Multiple bonding occurs between the atoms in the chains, particularly when carbon atoms are present. The short bond lengths observed in the C-B-C chains are due to substantial π-bonding.
Recent advances in microscopy and computational studies have provided unprecedented insights into the local atomic arrangements within boron carbide.
Advanced electron ptychography techniques have identified the presence of carbon-vacancy-carbon chains with boron vacancies in the B₄C lattice. This has helped explain the material's ductility at room temperature.
Laser-assisted atom probe tomography has revealed that the icosahedra in boron carbide are less tightly bound than the interconnecting chains. This has implications for the amorphization of boron carbide under stress.
The boron carbide crystal structure directly influences its physical and mechanical properties.
The strong covalent bonds and the rigid network of icosahedra and chains contribute to boron carbide's exceptional hardness.
The robust crystal structure provides boron carbide with high thermal stability, making it suitable for high-temperature applications.
The presence of defects, vacancies, and carbon substitutions affects the electron transport, leading to semiconducting behavior. The electrical properties can be tailored by controlling the composition and defect concentration.
The crystal structure influences the mechanical behavior, including ductility and fracture toughness. The presence of vacancies and disorder can promote plastic deformation.
The specific applications of boron carbide are closely tied to its crystal structure and resulting properties.
Its high hardness and low density make boron carbide ideal for lightweight armor, protecting against ballistic threats.
Boron carbide is used as an abrasive in grinding wheels, cutting tools, and polishing powders due to its extreme hardness.
The ability of boron to absorb neutrons makes boron carbide useful in control rods for nuclear reactors.
Boron carbide's thermal stability allows its use in high-temperature thermocouples and furnace components.
The boron carbide crystal structure is complex and fascinating, consisting of B₁₂ icosahedra and C-B-C chains arranged in a rhombohedral lattice. Its non-stoichiometric nature, defects, and bonding characteristics directly influence its exceptional hardness, thermal stability, and electrical properties. Advances in microscopy and computational studies continue to reveal new insights into this remarkable material, enhancing our ability to tailor its properties for diverse applications.
The boron carbide crystal structure consists of B₁₂ icosahedra and C-B-C chains arranged in a rhombohedral lattice.
The B₁₂ icosahedron provides the structural rigidity and contributes to boron carbide's extreme hardness due to strong covalent bonds.
C-B-C chains link the icosahedra and affect the overall stability, bonding, and electron transport properties of boron carbide.
Boron carbide is non-stoichiometric because boron and carbon atoms can substitute for each other, leading to a range of compositions and structural variations.
Vacancies, particularly in the C-B-C chains, introduce disorder and can affect the local electronic structure, mechanical properties, and ductility of boron carbide.
