Removing paint from metal surfaces is a critical step in maintenance, restoration, and preparation for repainting or coating. Sandblasting is one of the most effective methods for this purpose, but the choice of abrasive media greatly influences the efficiency, quality, and safety of the process. This comprehensive article explores the best sandblasting media for paint removal, comparing their properties, applications, advantages, and limitations. With detailed explanations, images, and videos, you will gain the knowledge to select the optimal media for your paint removal needs.
Paint removal from metal surfaces is essential to:
- Eliminate old, flaking, or damaged paint
- Prepare the surface for new coatings
- Remove rust and contaminants underneath paint
- Restore metal to a clean, smooth finish
Sandblasting propels abrasive particles at high velocity to mechanically strip paint and rust. The choice of abrasive media affects the removal speed, surface profile, dust generation, and environmental impact.

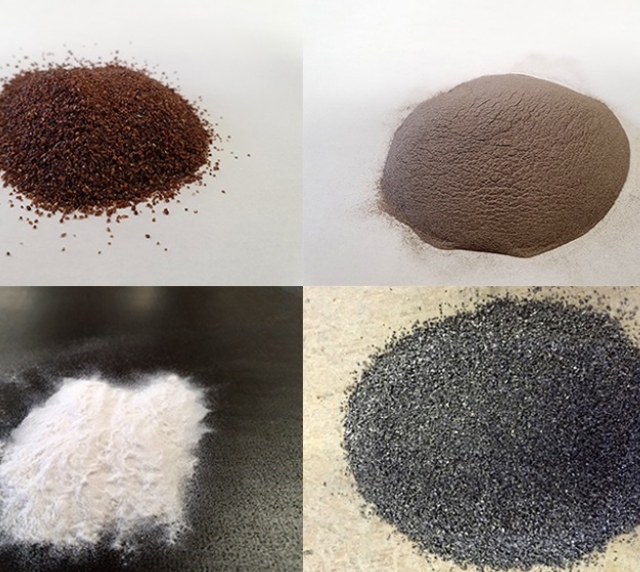

Sandblasting media are abrasive particles used in blasting machines. Their hardness, shape, size, and chemical composition determine their cutting power, surface finish, and suitability for different materials.

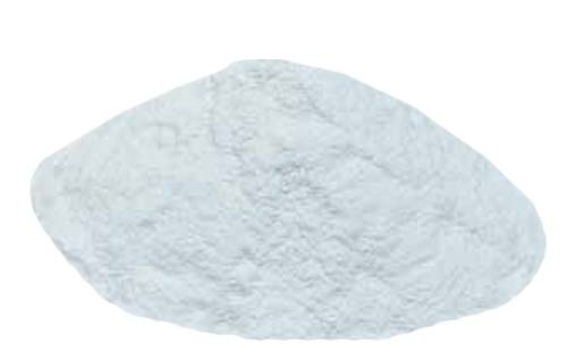

- Description: A sharp, angular abrasive with high hardness (Mohs 8-9).
- Effectiveness: Excellent for removing paint and rust quickly.
- Surface Finish: Leaves a clean, roughened surface ideal for coating adhesion.
- Advantages: Durable, reusable, low dust, non-silica (safer).
- Disadvantages: Higher cost than some alternatives.
- Description: Natural silicate mineral abrasive, hardness 6.5-7.5 Mohs.
- Effectiveness: Fast cutting, low dust, suitable for paint and rust removal.
- Surface Finish: Good profile for paint adhesion.
- Advantages: Environmentally friendly, reusable, low dust.
- Disadvantages: Pulverizes faster than harder abrasives.
- Description: Angular (grit) or spherical (shot) carbon steel abrasives, hardness 40-65 HRC.
- Effectiveness: Rapid paint and rust removal, especially heavy coatings.
- Surface Finish: Rough profile suitable for coatings.
- Advantages: Reusable, cost-effective for industrial use.
- Disadvantages: Aggressive; risk of substrate damage on softer metals.
- Description: Recycled glass particles, hardness 5-6 Mohs.
- Effectiveness: Effective for paint and light rust removal.
- Surface Finish: Clean surface with moderate profile.
- Advantages: Non-toxic, eco-friendly, non-carcinogenic.
- Disadvantages: Higher consumption, slower cutting speed.
- Description: By-product of coal-fired power plants, hardness 6-7 Mohs.
- Effectiveness: Good for rust and paint removal on steel.
- Surface Finish: Rough surface profile.
- Advantages: Low cost, widely available.
- Disadvantages: Dusty, contains impurities, environmental concerns.
- Description: Soft, non-destructive abrasive made from baking soda.
- Effectiveness: Removes paint and light rust gently without damaging metal.
- Surface Finish: Smooth finish, minimal profile.
- Advantages: Non-toxic, environmentally safe, easy cleanup.
- Disadvantages: Ineffective on heavy rust, not reusable.
- Heavy, multiple layers: Aluminum oxide, steel grit, coal slag
- Moderate layers: Garnet, crushed glass
- Light coatings: Soda blasting, glass beads
- Hard metals (steel, iron): Aluminum oxide, steel grit
- Softer metals (aluminum, brass): Soda blasting, glass beads
- Rough profile for coatings: Steel grit, aluminum oxide
- Smooth finish: Soda blasting, glass beads
- Low dust and non-toxic: Garnet, soda blasting, crushed glass
- Hazardous dust (silica): Avoid silica sand due to health risks
- Reusable abrasives: Steel grit, aluminum oxide, garnet
- Disposable abrasives: Coal slag, soda blasting
- Use appropriate air pressure (60-90 psi) for efficient removal without damaging metal.
- Select nozzle size based on abrasive type and surface area.
- Maintain consistent nozzle distance (6-12 inches).
- Wear respirators, gloves, eye protection, and protective clothing.
- Ensure proper ventilation and dust collection.
- Start with coarse media for heavy paint, finish with finer media for smoothness.
- Use sweeping motions to avoid gouging.
- Monitor surface often to prevent damage.
Aluminum oxide was used to strip paint from heavy machinery, providing a clean surface with minimal substrate damage.
Garnet blasting efficiently removed paint from steel car bodies, offering a smooth finish for repainting.
Steel grit was employed to remove thick marine coatings and rust from ship hulls, preparing surfaces for protective coatings.
- Inspect and clean nozzles regularly to maintain efficiency.
- Replace worn hoses and fittings to prevent leaks.
- Monitor compressor pressure and airflow.
- Store abrasives in dry, sealed containers.
The best sandblasting media for paint removal depends on paint thickness, metal type, desired surface finish, and environmental considerations. Aluminum oxide and steel grit are top choices for heavy-duty paint removal due to their hardness and durability. Garnet offers a balance of efficiency and environmental safety, while soda blasting suits delicate surfaces. Proper technique and safety measures ensure effective paint removal and surface preparation, extending the life and appearance of metal structures.
Aluminum oxide and steel grit are among the best due to their hardness and efficiency in removing heavy paint.
Yes, overly aggressive abrasives or improper technique can damage metal. Choosing the right abrasive and controlling pressure is essential.
Yes, garnet is effective, produces low dust, and is environmentally friendly, making it a popular choice.
Wear appropriate PPE, including respirators, gloves, goggles, and protective clothing, and ensure proper ventilation.
Some abrasives like steel grit and aluminum oxide can remove thick paint quickly, but multiple passes with different grit sizes often yield the best results.
