● Introduction: Why Choosing the Right Sandblasting Media Matters
● Characteristics of Ideal Sandblasting Media for Cast Iron
● Top Sandblasting Media for Cast Iron Surfaces
>> 2. Garnet
>> 4. Steel Grit and Steel Shot
>> 6. Organic Media: Walnut Shell and Corn Cob
● How to Choose the Right Grit Size
● Practical Tips for Sandblasting Cast Iron
● Safety and Environmental Considerations
>> Personal Protective Equipment (PPE)
● Case Studies and Real-World Applications
>> Industrial Machinery Maintenance
● Advanced Techniques and Innovations
>> 1. Automated Sandblasting Systems
● FAQ
>> 1. What abrasive media works best for heavy rust on cast iron?
>> 2. Can garnet be used on cast iron rust removal?
>> 3. Is crushed glass a good abrasive for cast iron?
>> 4. Should I avoid silica sand for rust removal?
>> 5. What grit size is ideal for sandblasting rusty cast iron?
Cast iron is a widely used material known for its durability and strength, but it is also prone to rust, scale, and old paint buildup over time. Sandblasting is an effective method for cleaning and restoring cast iron surfaces, but the choice of sandblasting media plays a crucial role in achieving optimal results without damaging the material. This comprehensive article discusses the best sandblasting media for cast iron surfaces, their properties, applications, advantages, environmental and safety considerations, and practical tips for effective use.
Sandblasting involves propelling abrasive particles at high velocity to remove surface contaminants such as rust, paint, and scale. The abrasive media selected impacts the efficiency of cleaning, the surface finish, dust generation, environmental impact, and safety. Cast iron, being a relatively hard but brittle material, requires careful selection of media that can clean effectively without causing surface damage or embedding particles.
When selecting abrasive media for cast iron, consider the following factors:
- Hardness: The media must be hard enough to remove rust and coatings but not so aggressive as to damage the cast iron surface.
- Shape: Angular particles provide aggressive cutting action, while rounded particles produce smoother finishes.
- Density: Heavier media deliver more kinetic energy but increase the risk of surface damage.
- Friability: Media that break down during use expose fresh edges, maintaining cutting efficiency.
- Environmental and Health Safety: Media should minimize dust and toxic exposure.
- Reusability and Cost: Reusable media reduce long-term costs and waste.
Aluminum oxide is a sharp, angular, and hard abrasive widely used for rust and paint removal on cast iron.
- Advantages: Fast cutting action, reusable, low dust generation, minimal contamination.
- Applications: Heavy rust removal, surface profiling, preparation for painting or coating.
- Typical Grit Sizes: Medium grit (70–80) recommended for balanced removal and surface finish.
Garnet is a natural mineral abrasive known for its sharp edges and low dust production.
- Advantages: Environmentally friendly, recyclable, consistent performance.
- Applications: Rust and paint removal, surface preparation for coatings.
- Grit Sizes: Medium grit (80–120) preferred for cast iron.
Crushed glass is a recycled, angular abrasive effective for cleaning and moderate rust removal.
- Advantages: Eco-friendly, non-toxic, affordable.
- Applications: Surface cleaning and preparation, especially where environmental considerations are important.
- Grit Sizes: Medium grit (80–100) suitable for cast iron.

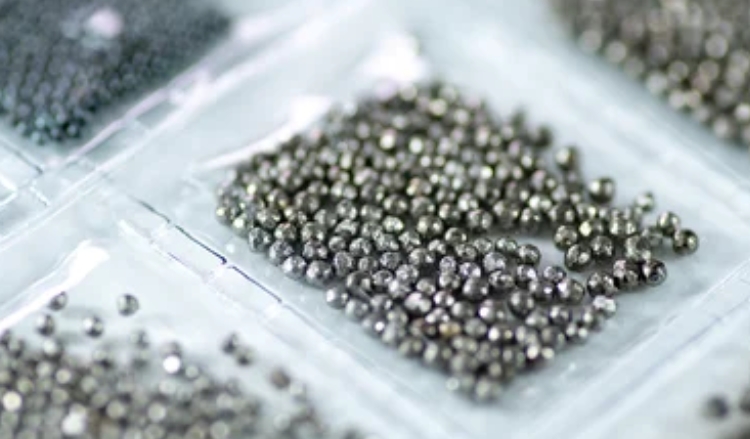

Steel grit is angular and aggressive, while steel shot is spherical and used for peening and polishing.
- Advantages: High impact energy, reusable, fast rust and scale removal.
- Applications: Heavy-duty industrial cleaning.
- Caution: Use carefully on cast iron to avoid embedding particles or surface damage.
Staurolite is a silicate mineral abrasive with sub-angular particles.
- Advantages: Low dust, minimal surface profile.
- Applications: Removing thin coatings, rust, and mill scale on cast iron.
- Grit Sizes: Medium grit (60–80).

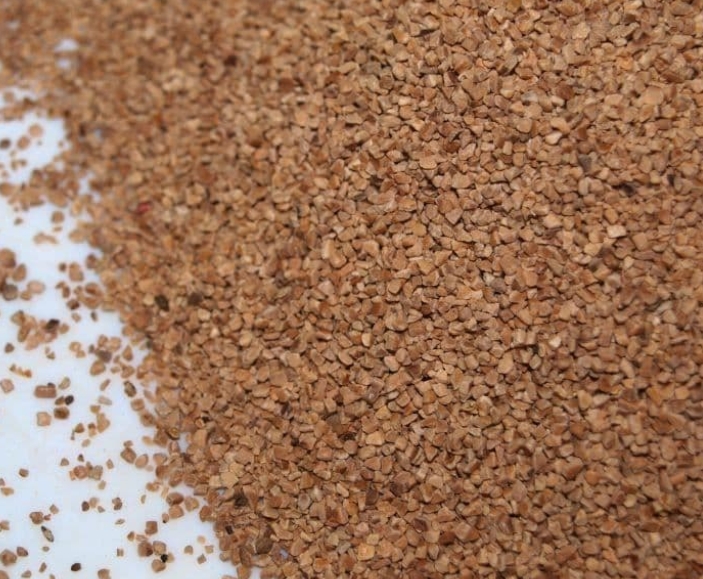

These soft, biodegradable abrasives are used for gentle cleaning.
- Advantages: Non-toxic, low dust.
- Applications: Cleaning delicate or finished surfaces without damage.
- Limitations: Not suitable for heavy rust removal.
- Coarse Grit (40–60): For heavy rust and thick coatings; may roughen the surface.
- Medium Grit (70–120): Balanced for rust removal and surface prep with minimal damage.
- Fine Grit (150+): For finishing and smoothing after rust removal.
Before sandblasting, clean the cast iron surface of loose debris and grease. Use a degreaser or solvent to remove oils, as contaminants can interfere with the blasting process.
- Nozzle Selection: Choose a nozzle size that matches the media type and desired spray pattern. A larger nozzle is better for coarse media, while a smaller nozzle provides precision.
- Air Pressure: Adjust pressure based on media hardness. For cast iron, 80–100 psi is typically effective without causing damage.
- Containment: Use a blast cabinet or tarp to contain media and debris, especially in indoor environments.
- Angle and Distance: Hold the nozzle at a 45–60 degree angle, 12–18 inches from the surface. This prevents excessive erosion while ensuring efficient cleaning.
- Overlap Passes: Move the nozzle in consistent, overlapping strokes to avoid streaks or uneven results.
- Monitor Progress: Periodically check the surface to avoid over-blasting, which can thin the metal or create pits.
- Cleaning: Remove residual media with compressed air or a brush. For wet blasting, rinse and dry the surface thoroughly to prevent flash rust.
- Protective Coatings: Apply primer or paint immediately after blasting to protect the clean surface from oxidation.
- Respirators: Use NIOSH-approved masks to avoid inhaling dust.
- Eye Protection: Wear safety goggles or a face shield to prevent abrasive particles from causing injury.
- Gloves and Coveralls: Protect skin from abrasive impact and dust.
- Dust Collection Systems: Install cyclonic separators or HEPA filters to capture airborne particles.
- Media Recycling: Reclaim and reuse media where possible to reduce waste and costs.
- Disposal: Follow local regulations for disposing of spent media, especially if contaminated with heavy metals or toxins.
- Eco-Friendly Media: Opt for garnet, crushed glass, or organic media to minimize ecological footprint.
- Water Conservation: In wet blasting, recycle water to reduce consumption.
A classic car restoration shop used aluminum oxide (80 grit) to remove decades of rust and paint from a cast iron engine block. The angular media effectively stripped contaminants without warping the surface, preparing it for high-temperature paint. The project highlighted the importance of medium grit for balancing speed and surface preservation.
A team restoring a historic cast iron facade chose crushed glass (70 grit) for its eco-friendly profile. The media removed corrosion and old layers of lead-based paint safely, complying with environmental regulations. Post-blasting, the surface was coated with a rust-inhibiting primer to maintain its historic integrity.
A manufacturing plant used steel grit (G40) to clean large cast iron components in heavy machinery. The high-impact media quickly removed scale and rust, but operators had to carefully control pressure to avoid surface pitting. The process reduced downtime and extended the machinery's service life.
Robotic blasting systems are increasingly used in industrial settings for consistency and efficiency. These systems can be programmed to apply media at precise angles and pressures, reducing human error and labor costs.
While not a sandblasting method, laser cleaning is an emerging alternative for delicate cast iron artifacts. It uses pulsed laser beams to vaporize contaminants without abrasives, preserving intricate details.
Combining different abrasives (e.g., aluminum oxide with crushed glass) can optimize cleaning efficiency and surface finish. Experimentation under controlled conditions is recommended to find the ideal blend.
The best sandblasting media for cast iron depends on the severity of contamination, desired finish, and environmental priorities. Aluminum oxide and garnet excel in heavy rust removal, while crushed glass and organic media offer eco-friendly solutions. Steel grit is ideal for industrial-scale projects but requires careful handling. By prioritizing safety, efficiency, and sustainability, operators can restore cast iron surfaces to their original functionality and appearance. As technology advances, innovations like automated systems and hybrid media will further refine the sandblasting process.
Aluminum oxide and steel grit are highly effective for heavy rust removal.
Yes, garnet is an excellent, eco-friendly abrasive for rust and paint removal.
Crushed glass is effective for moderate rust removal and surface cleaning.
Yes, silica sand poses serious health risks and is generally not recommended.
Medium grit (70–80) is typically best for efficient rust removal without damaging the surface.
