Silicon carbide (SiC) has emerged as a revolutionary material in the semiconductor industry, particularly for applications requiring high performance under extreme conditions. Its unique physical and chemical properties make it an ideal candidate for next-generation power electronics, high-frequency devices, and harsh environment applications. This comprehensive article explores the uses of silicon carbide in the semiconductor industry, detailing its advantages over traditional silicon, applications, manufacturing processes, challenges, and future prospects.

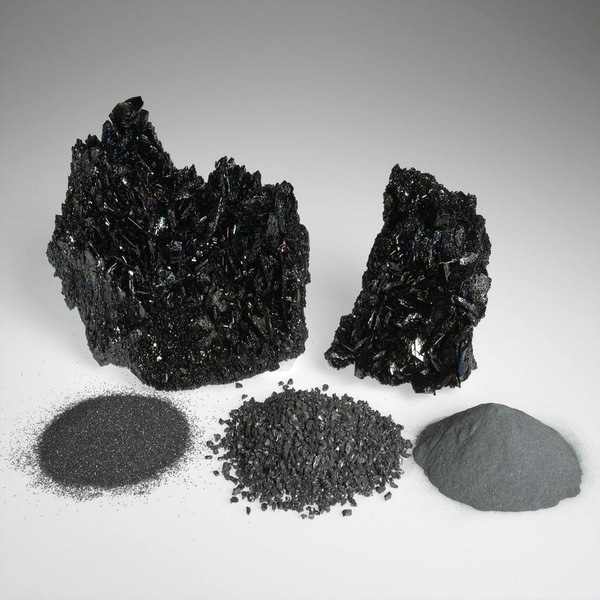

Silicon carbide is a compound semiconductor composed of silicon and carbon atoms bonded in a crystal lattice. Unlike conventional silicon, SiC possesses a wide bandgap, high thermal conductivity, and exceptional breakdown voltage, enabling devices that operate efficiently at higher voltages, temperatures, and frequencies. These properties have driven rapid adoption of SiC in power electronics, electric vehicles, renewable energy systems, and industrial applications.
SiC's bandgap is significantly wider than silicon's, allowing devices to operate at higher temperatures and voltages with lower leakage currents. This translates to better efficiency and reliability in demanding applications.
SiC's thermal conductivity is several times higher than silicon's, enabling superior heat dissipation. This reduces the need for bulky cooling systems and allows devices to run hotter without degradation.
SiC can withstand much higher electric fields before breaking down, allowing for thinner device layers and higher voltage operation.
The high electron velocity in SiC supports faster switching speeds, improving device performance in high-frequency applications.
SiC is chemically inert and mechanically robust, making it suitable for harsh environments and long-term reliability.
SiC MOSFETs are widely used in power electronics for efficient switching with low losses. They are key components in electric vehicle inverters, power supplies, and motor drives.
These diodes offer fast switching and low forward voltage drop, improving efficiency in power conversion systems.
SiC JFETs provide high-speed switching and are used in high-frequency applications.
Though less common, SiC BJTs are used in specific high-power applications.
SiC devices improve inverter efficiency, reduce energy losses, and enable faster charging, extending EV range and performance.
SiC power electronics enhance solar inverters and wind turbine converters, increasing energy conversion efficiency and system reliability.
SiC enables compact, efficient motor drives and power supplies with reduced cooling requirements.
SiC devices reduce power consumption and improve thermal management in high-density data centers and telecom infrastructure.
SiC's high-temperature tolerance and radiation resistance make it ideal for aerospace electronics and military systems.
High-quality single-crystal SiC wafers are grown using techniques like physical vapor transport (PVT), producing large, defect-minimized substrates.
Chemical vapor deposition (CVD) is used to grow thin, controlled SiC layers for device fabrication.
Processes include photolithography, ion implantation, metallization, and annealing to form functional devices.
Advanced packaging solutions address thermal management and electrical performance challenges.
Manufacturing silicon carbide semiconductors involves overcoming several technical hurdles. One of the primary challenges is the growth of high-quality, defect-free SiC crystals. The presence of defects such as micropipes, dislocations, and stacking faults can significantly impact device performance and yield. Advanced crystal growth techniques, including physical vapor transport (PVT) and chemical vapor deposition (CVD), have been refined to minimize these defects. Additionally, the high melting point and chemical inertness of SiC require specialized equipment and processes, increasing production complexity and cost.
Another challenge lies in the fabrication of device structures. The hardness and chemical stability of SiC make processes like ion implantation, etching, and metallization more demanding compared to silicon. Researchers are developing novel doping methods and surface passivation techniques to enhance device reliability and performance.
Integration of SiC devices into existing electronic systems also requires careful consideration. The differences in thermal expansion coefficients and electrical characteristics between SiC and traditional materials necessitate innovative packaging and thermal management solutions.
- Higher Efficiency: Lower conduction and switching losses.
- Smaller Size: Higher power density enables compact designs.
- Higher Temperature Operation: Reduces cooling system complexity.
- Longer Lifespan: Enhanced reliability under stress.
- Environmental Benefits: Lower energy consumption and carbon footprint.
The future of silicon carbide in the semiconductor industry is promising, with ongoing research focused on expanding its capabilities and applications. One exciting area is the development of hybrid devices that combine SiC with other wide bandgap materials such as gallium nitride (GaN) to leverage the strengths of both.
Advancements in additive manufacturing and 3D printing technologies are enabling the production of complex SiC components with tailored properties, opening new possibilities in device design and functionality.
Emerging applications include quantum computing, where SiC's unique spin properties are being explored for qubit implementation, and harsh environment sensors capable of operating in extreme conditions such as deep wells or space.
SiC-based power electronics have revolutionized electric vehicle powertrains by enabling higher efficiency in inverters and converters. This results in longer driving ranges, faster charging times, and reduced cooling requirements, contributing to the broader adoption of electric vehicles.
In solar and wind energy systems, SiC devices improve the efficiency and reliability of power conversion, facilitating the integration of renewable sources into the grid and supporting sustainable energy goals.
Silicon carbide is transforming the semiconductor industry by enabling devices that operate at higher voltages, temperatures, and frequencies with greater efficiency and reliability than traditional silicon. Its unique physical and chemical properties make it indispensable for next-generation power electronics, electric vehicles, renewable energy, and advanced industrial applications. Despite challenges in cost and manufacturing, ongoing innovations continue to expand SiC's impact, driving a sustainable and efficient technological future.
SiC is used in high-power, high-frequency, and high-temperature electronic devices such as MOSFETs, Schottky diodes, and power modules.
SiC has a wider bandgap, higher thermal conductivity, and higher breakdown voltage, enabling more efficient and robust devices.
Electric vehicles, renewable energy systems, industrial power supplies, telecommunications, aerospace, and defense.
High cost, material defects, and integration complexity are primary challenges.
Because it enables devices to operate more efficiently at higher voltages and temperatures, reducing energy losses and system size.
