Silicon carbide media is a high-performance abrasive material widely recognized for its exceptional hardness, sharpness, and aggressive cutting action. Used in a variety of industrial, commercial, and hobbyist applications, silicon carbide media stands out for its ability to tackle the toughest cleaning, etching, grinding, and finishing tasks. This comprehensive article explores what silicon carbide media is, its properties, types, applications, and how it compares to other abrasive media.
Silicon carbide media, often referred to as SiC media, is an abrasive composed of silicon and carbon atoms bonded in a crystalline structure. This unique composition gives it remarkable hardness—second only to diamond and boron carbide among common abrasives. Silicon carbide media is available in a range of grit sizes and forms, from coarse grits for heavy material removal to fine powders for polishing and lapping.
- Extreme Hardness: With a Mohs hardness of about 9.5, silicon carbide is harder than aluminum oxide and most other blasting media, making it ideal for cutting, grinding, and etching hard surfaces.
- Angular Shape: The grains are typically angular, providing sharp cutting edges that efficiently remove material.
- High Thermal Conductivity: It dissipates heat quickly, reducing the risk of thermal damage to sensitive workpieces.
- Chemical Stability: Silicon carbide is highly resistant to acids, alkalis, and oxidation, making it suitable for use in harsh environments.
- Low Density and Friability: While hard, silicon carbide is also friable, meaning it breaks down into smaller, sharp-edged fragments during use, continually exposing fresh cutting surfaces.
- Wide Grit Range: Available from very coarse to ultra-fine grits, allowing for a wide range of applications from aggressive cleaning to fine polishing.
- Description: The most common form, black silicon carbide is manufactured in electrical resistance furnaces using the Acheson process. It is extremely hard and sharp, making it suitable for blasting, grinding, and cutting.
- Applications: Sandblasting, grinding wheels, lapping, anti-slip flooring, and cutting tools.
- Description: Higher in purity and slightly harder than black silicon carbide, green SiC is used for fine grinding, polishing, and in applications requiring minimal contamination.
- Applications: Polishing glass, ceramics, and semiconductors; lapping and fine finishing.
- Reaction-Bonded SiC (RB-SiC): Used in structural ceramics and advanced engineering.
- Sintered SiC (SSiC): Densely packed, used in high-performance ceramics.
- Recrystallized SiC (RSiC): Used in high-temperature furnace parts and kiln furniture.
Silicon carbide media is produced by heating a mixture of silica sand and carbon (usually petroleum coke) to high temperatures in an electric resistance furnace. The resulting SiC crystals are then crushed, milled, and graded into various grit sizes. The manufacturing process can be adjusted to produce different forms and purities, depending on the intended application.

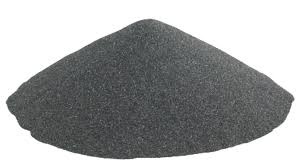

Silicon carbide media is a top choice for sandblasting and abrasive blasting, especially when cleaning or profiling hard surfaces like metals, glass, and stone. Its aggressive action quickly removes rust, scale, paint, and contaminants, leaving a clean, etched surface.
SiC media is used in grinding wheels and lapping compounds for shaping and smoothing hard materials, including ceramics, glass, and carbide tools.
Ideal for preparing surfaces for painting, coating, or bonding by providing a uniform, roughened texture that enhances adhesion.

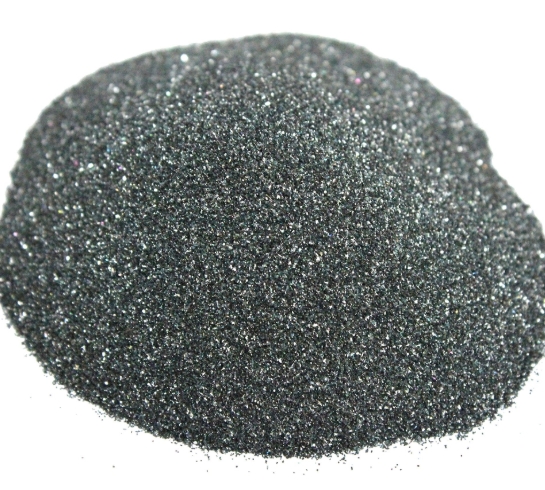

Fine silicon carbide media is used for lapping and polishing metals, glass, ceramics, and composite materials, producing smooth, reflective finishes.
SiC media can be embedded in paints or coatings to create high-wear, non-slip surfaces for flooring, stairs, and industrial walkways.
- Refractories: Used in kiln furniture and furnace linings for its thermal shock resistance.
- Electronics: As a semiconductor material in high-temperature, high-power devices.
- Automotive and Aerospace: For deburring, cleaning, and surface finishing of hard alloys and composites.
- Fast, Aggressive Cutting: Shortens processing times and increases productivity.
- Versatility: Suitable for a wide range of materials and applications.
- Durability and Reusability: Maintains effectiveness over multiple uses, especially in contained systems.
- Cost-Effective: Less expensive than diamond or boron carbide, but still offers superior performance for most abrasive tasks.
- Performance in Wet or Dry Blasting: Functions well in both environments.
- Not Ideal for Soft Metals: Can damage aluminum or other soft materials if not used carefully.
- Brittleness: Silicon carbide is friable and can fracture under heavy impact.
- Dust Hazard: Fine SiC dust can be hazardous if inhaled; always use appropriate PPE and dust extraction systems.
- Equipment Wear: Its hardness can accelerate wear on blasting nozzles and equipment not designed for aggressive media.
- Choose the Right Grit: Coarse grits (24–80) for heavy removal, medium (100–180) for general cleaning, fine (220+) for polishing.
- Adjust Pressure: Use lower pressure for delicate surfaces, higher for aggressive cleaning.
- Contain and Recycle: Use in a blast cabinet or contained system to maximize reusability and minimize waste.
- Monitor Equipment Wear: Inspect nozzles and hoses regularly and replace as needed.
- Safety First: Always wear a respirator, gloves, and eye protection.
- Keep Media Clean: Sift and recycle media to remove dust and debris for consistent results.
- Store Properly: Keep media dry and sealed to prevent clumping or contamination.
- Dispose Responsibly: Follow local regulations for disposing of spent media, especially if it contains hazardous coatings or contaminants.
Silicon carbide media is a powerful, versatile abrasive that excels in cutting, grinding, etching, and finishing some of the hardest materials known. Its extreme hardness, sharpness, and durability make it the go-to choice for demanding sandblasting, grinding, and industrial applications. Whether you're preparing metal for coating, etching glass, or finishing ceramics, silicon carbide media delivers aggressive performance and long-lasting results. Always match the grit and application to your specific needs, use proper safety precautions, and maintain your equipment for the best outcomes.
Silicon carbide media is used for sandblasting, grinding, lapping, polishing, etching, and as an anti-slip aggregate in coatings and flooring.
Silicon carbide is harder and more aggressive than aluminum oxide, making it better for hard surfaces but requiring more care on soft metals.
Yes, silicon carbide media is highly durable and can be recycled multiple times in contained systems like blast cabinets.
Silicon carbide is safe when used with proper PPE and dust control. Avoid inhaling fine dust and always work in a well-ventilated area.
Silicon carbide media is available in a wide range of grits, from coarse (24) to ultra-fine (1200+), suitable for everything from heavy removal to fine polishing.
