Silicon carbide is one of the most remarkable and versatile chemical compounds in modern science and industry. Known for its exceptional hardness, thermal stability, and chemical resistance, silicon carbide plays a pivotal role in fields ranging from materials science and engineering to electronics, energy, and even art. This article explores what silicon carbide is in chemistry, its structure, synthesis, properties, and wide-ranging applications.

What Is Silicon Carbide in Chemistry

Introduction to Silicon Carbide

Silicon carbide, with the chemical formula SiC, is a compound consisting of silicon and carbon atoms. It is also commonly known as carborundum. In nature, silicon carbide is extremely rare, found as the mineral moissanite in meteorites and certain rock formations, but nearly all silicon carbide in use today is synthetic, produced in large quantities for industrial and scientific purposes.

Structure and Bonding of Silicon Carbide

Crystal Structure

Silicon carbide is renowned for its polymorphism, meaning it exists in many different crystalline forms called polytypes. These polytypes have the same basic chemical formula but differ in the stacking sequence of atomic layers. The most common forms are:

- Alpha silicon carbide (α-SiC): Has a hexagonal crystal structure, typically formed at high temperatures.

- Beta silicon carbide (β-SiC): Has a cubic (zinc blende) structure, formed at lower temperatures. This form is similar to the diamond structure and is of great interest for electronic applications.

Each silicon atom in SiC is bonded tetrahedrally to four carbon atoms, and vice versa, resulting in a strong, covalent network. This robust bonding is responsible for silicon carbide's high hardness and chemical stability.

Physical and Chemical Properties

Physical Properties

- Appearance: Typically black, green, or bluish-black crystals or powder.

- Density: Around 3.21 g/cm3.

- Melting Point: Sublimes with decomposition at high temperatures.

- Hardness: Ranks just below diamond and boron carbide on the Mohs scale, making it one of the hardest known materials.

- Thermal Conductivity: Exceptionally high, rivaling metals, which makes it excellent for heat dissipation.

- Thermal Expansion: Low, reducing the risk of cracking under thermal cycling.

- Electrical Properties: Wide bandgap semiconductor, with a bandgap that enables high-temperature and high-voltage electronic applications.

Chemical Properties

- Chemical Stability: Highly resistant to acids, alkalis, and oxidation, except for hydrofluoric acid and acid fluorides.

- Insolubility: Insoluble in water, alcohol, and most acids.

- Reactivity: Can react with molten alkalis and iron, and at high temperatures may be attacked by certain slags or gases.

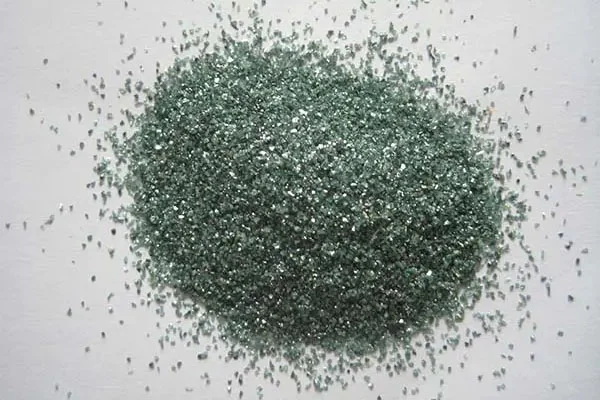

Silicon Carbide Crystal Structure

Synthesis and Industrial Production

Acheson Process

The most common method for producing silicon carbide is the Acheson process. In this process, a mixture of silica sand and carbon (usually petroleum coke) is heated to very high temperatures in an electric resistance furnace. The reaction produces a solid mass of silicon carbide that is then crushed, milled, and graded into various particle sizes for different applications.

Other Methods

- Chemical Vapor Deposition (CVD): Used for producing high-purity single crystals and thin films for electronics.

- Sintering: Used to produce dense, shaped ceramic components.

Polytypes and Variants

Silicon carbide is unique in that it has many known polytypes, though only a handful are used commercially. The main technological interest lies in the cubic, hexagonal, and rhombohedral structures.

- 3C-SiC (β-SiC): Cubic, used for high-frequency and high-power electronic devices.

- 4H-SiC and 6H-SiC: Hexagonal, preferred for power electronics due to their superior electrical properties.

Applications of Silicon Carbide

Abrasives and Cutting Tools

Silicon carbide's extreme hardness makes it ideal for use as an abrasive in grinding wheels, sandpaper, cutting tools, and blasting media. It is used to machine metals, glass, ceramics, and stone, and is a staple in lapidary arts, metal fabrication, and construction.

Ceramics and Refractories

SiC is used to make high-strength, high-temperature ceramics for kiln linings, crucibles, and furnace components. Its thermal shock resistance and chemical inertness make it invaluable in harsh environments.

Electronic Devices

As a wide bandgap semiconductor, silicon carbide is used in:

- Power Electronics: High-voltage, high-temperature diodes, transistors, and MOSFETs for electric vehicles, solar inverters, and industrial drives.

- LEDs: Early light-emitting diodes utilized SiC.

- Sensors and Radiation Detectors: Used in environments where silicon would fail due to heat or radiation.

Nuclear Applications

SiC is used as a structural material and fuel cladding in advanced nuclear reactors due to its neutron transparency, high-temperature strength, and resistance to radiation damage. It also serves as a barrier to fission product release in TRISO fuel particles.

Metallurgy

In steelmaking, silicon carbide acts as a fuel and deoxidizer, improving steel quality and reducing impurities. It is also used to adjust the carbon and silicon content of molten steel.

Catalyst Support

The chemical stability and high surface area of certain SiC polytypes make them excellent supports for heterogeneous catalysts in chemical processing.

Artistic and Specialty Uses

SiC is used in printmaking (carborundum printmaking), lithography, and even as a gemstone (synthetic moissanite) in jewelry.

Environmental and Safety Considerations

- Health Hazards: Silicon carbide dust and fibers can irritate the eyes, skin, and respiratory system. Prolonged exposure may lead to lung fibrosis or other health issues. Proper PPE and ventilation are essential when handling SiC powders.

- Recycling and Sustainability: SiC is durable and can often be recycled in abrasive and refractory applications, reducing waste.

Conclusion

Silicon carbide is a chemically and structurally fascinating compound with a unique blend of hardness, thermal stability, and chemical resistance. Its wide range of polytypes and robust properties have made it indispensable in abrasives, ceramics, electronics, metallurgy, nuclear energy, and even art. As science and technology continue to advance, silicon carbide's role in high-performance materials and devices is only set to grow, cementing its place as a cornerstone of modern chemistry and engineering.

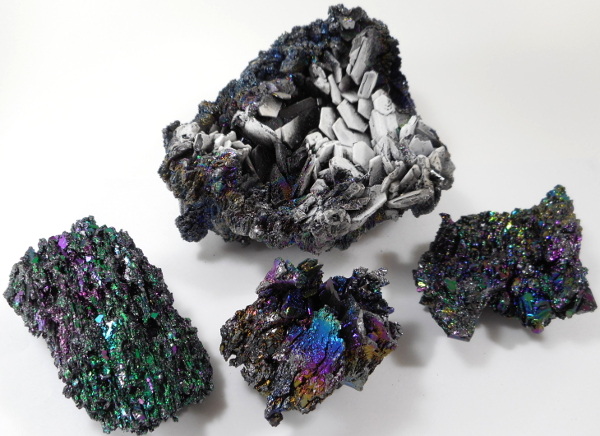

Silicon Carbide Bonding Type

FAQ

1. What is silicon carbide in chemistry?

Silicon carbide is a compound of silicon and carbon with the formula SiC, known for its exceptional hardness, thermal stability, and chemical resistance.

2. How is silicon carbide made?

It is typically produced by heating silica sand and carbon in an electric resistance furnace (Acheson process), resulting in SiC crystals that are then crushed and graded.

3. What are the main uses of silicon carbide?

SiC is used in abrasives, ceramics, power electronics, nuclear reactors, metallurgy, catalyst supports, and even in art and jewelry.

4. Why is silicon carbide important in electronics?

Its wide bandgap, high breakdown voltage, and thermal conductivity make it ideal for high-power, high-frequency, and high-temperature electronic devices.

5. Are there any safety concerns with silicon carbide?

SiC dust and fibers can irritate the eyes, skin, and respiratory system, so proper handling and protective equipment are important.
