Silicon carbide (SiC), also known as carborundum, is a hard chemical compound containing silicon and carbon[1]. Since 1893, it has been mass-produced as a powder and crystal for use as an abrasive[1]. Silicon carbide grains can be bonded together by sintering to form very hard ceramics that are widely used in applications requiring high endurance, such as car brakes, car clutches, and ceramic plates in bulletproof vests[1].
Naturally occurring moissanite, a form of silicon carbide, is found in only minute quantities in certain types of meteorite, corundum deposits, and kimberlite[1]. Virtually all the silicon carbide sold, including moissanite jewels, is synthetic[1]. Pure SiC is colorless, with the brown to black color of the industrial product resulting from iron impurities[1]. The rainbow-like luster of the crystals is due to the thin-film interference of a passivation layer of silicon dioxide that forms on the surface[1].
The high sublimation temperature of SiC (approximately 2,700 °C) makes it useful for bearings and furnace parts[1]. Silicon carbide does not melt but begins to sublimate near 2,700 °C like graphite, having an appreciable vapor pressure near that temperature[1]. It is also highly inert chemically, partly due to the formation of a thin passivated layer of SiO~2~[1]. SiC has a very low coefficient of thermal expansion of about 2.3 × 10^−6^ K^−1^ near 300 K (for 4H and 6H SiC) and experiences no phase transitions in the temperature range 5 K to 340 K that would cause discontinuities in the thermal expansion coefficient[1].
Silicon carbide is a semiconductor, which can be doped n-type by nitrogen or phosphorus and p-type by beryllium, boron, aluminum, or gallium[1]. Metallic conductivity has been achieved by heavy doping with boron, aluminum, or nitrogen[1].
Silicon carbide rubbing blocks are abrasive tools used for smoothing and cleaning various surfaces. These blocks are particularly effective on concrete, cement, masonry, and soft tiles[4]. They come in various grit sizes, with coarser grits used for more aggressive material removal and finer grits for finishing[2].
1. Floor Rubbing: Silicon carbide rubbing bricks are used to rub down concrete and remove mold marks[2]. They are designed to fit the chucks of common concrete floor grinding equipment[2].
2. Cleaning and Scouring Castings: Mechanics and foundry workers use hand rubbing bricks for dressing grinding wheels and cleaning or scouring castings[2].
3. Smoothing Rough Surfaces: The rubbing bricks are ideal for smoothing rough concrete, cement, masonry, or edges of softer tile[4].
4. Removing Mold Marks: Masons and stone workers use fluted hand rubbing bricks for rubbing down concrete and removing mold marks[2]. The diagonal flutes provide sharp edges, a clean shearing action, and carry away debris[2].
1. Floor Rubbing Bricks: These are designed for use with concrete floor grinding equipment and are used to smooth concrete surfaces[2].
2. Plain Hand Rubbing Bricks: These are used for dressing grinding wheels and cleaning castings[2].

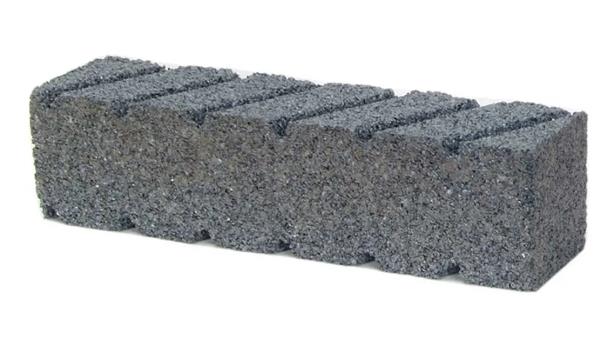

3. Fluted Hand Rubbing Bricks: These bricks have diagonal flutes to provide sharp edges and are used for removing mold marks from concrete[2].

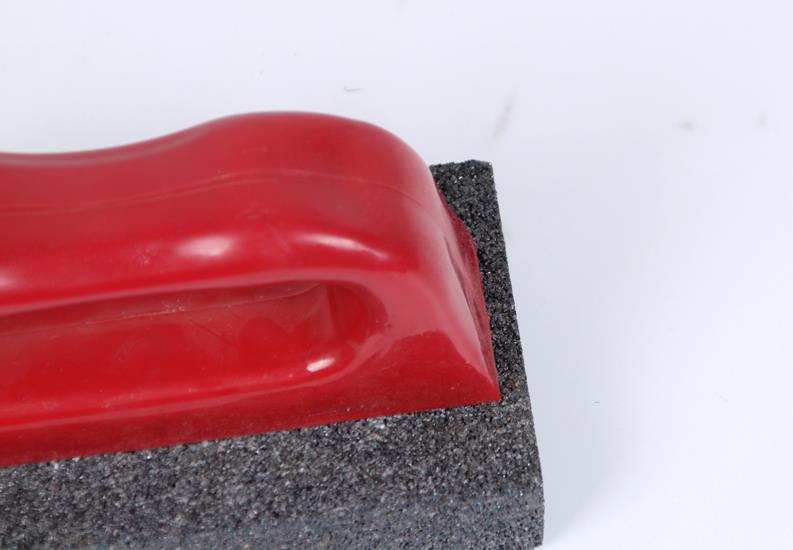

4. Fluted Hand Rubbing Bricks with Handle: These come with a handle to reduce fatigue and facilitate overhead, wall, and floor work[2].
- Durability: Silicon carbide is a very hard material, making these rubbing blocks long-lasting and effective for heavy-duty applications[5][8].
- Versatility: Suitable for a range of materials, including concrete, stone, and tile[4][5].
- Efficiency: The abrasive properties of silicon carbide ensure quick and effective material removal[5].
- Comfort: Some blocks come with handles to reduce user fatigue[2][8].
1. Preparation: Ensure the surface is clean and free from loose debris.
2. Wetting the Surface: Wetting the surface can help reduce dust and improve the block's cutting action[4].
3. Applying Pressure: Apply moderate pressure and move the block in a consistent, back-and-forth motion[4].
4. Cleaning: Regularly clean the block and the surface to remove accumulated material.
- Grit Size: Choose a coarser grit for aggressive material removal and a finer grit for smoother finishes[2][4].
- Size and Shape: Select a size and shape that is comfortable to handle and appropriate for the task[2][4].
- Handle: Consider a block with a handle for larger projects or for reducing fatigue[2][8].
- Wear Protective Gear: Always wear safety glasses and gloves when using a silicon carbide rubbing block.
- Ventilation: Use in a well-ventilated area to avoid inhaling dust particles.
- Proper Handling: Ensure a firm grip on the block to prevent accidents.
Silicon carbide rubbing blocks are versatile tools for smoothing, cleaning, and preparing various surfaces. Their durability and efficiency make them essential in construction, masonry, and metalworking. Proper selection, use, and maintenance of these blocks ensure optimal performance and safety.
Silicon carbide rubbing blocks are used for smoothing rough concrete, removing mold marks, cleaning castings, and preparing surfaces for tiling or coating[2][4]. They are effective on materials like concrete, cement, masonry, and soft tiles[4].
Choose a coarser grit (e.g., 20-grit) for aggressive material removal and smoothing very rough surfaces[4]. Finer grits are suitable for finishing and achieving a smoother surface[2].
Yes, using a silicon carbide rubbing block on wet surfaces can help reduce dust and improve the block's cutting action[4]. Ensure the block is suitable for wet use.
Always wear safety glasses and gloves to protect against dust and debris[4]. Use in a well-ventilated area to avoid inhaling dust particles[4].
Regularly clean the block to remove accumulated material[4]. Store it in a dry place to prevent damage. Replace the block when it becomes worn or loses its effectiveness[4].
