Sandblasting is a versatile surface preparation technique that relies heavily on the choice of abrasive media. The types of sandblasting media you select will determine the efficiency, finish, and safety of your project. This comprehensive guide explores all major types of sandblasting media, their properties, applications, advantages, and best practices for selection. Whether you're a professional or a hobbyist, understanding the types of sandblasting media is crucial for achieving optimal results.
Sandblasting, also known as abrasive blasting, is a process where a stream of abrasive material is propelled against a surface under high pressure. The main goal is to clean, etch, or prepare surfaces for further treatment. The types of sandblasting media play a pivotal role in determining the outcome, as each media type has unique properties suited for specific tasks.
Selecting the right sandblasting media involves considering several factors:
- Surface Material: Hardness, sensitivity, and composition of the surface.
- Desired Finish: Smooth, matte, etched, or polished.
- Type of Contaminant: Rust, paint, dirt, scale, or coatings.
- Environmental Impact: Toxicity, recyclability, and dust generation.
- Cost and Efficiency: Media price, longevity, and reusability.
- Safety Requirements: Operator health and workplace safety.
| Media Type | Hardness (Mohs) | Shape | Reusability | Typical Uses | Environmental Impact |
|---|---|---|---|---|---|
| Aluminum Oxide | 8–9 | Angular | High | Heavy-duty cleaning, etching | Moderate |
| Glass Beads | 6 | Round | High | Polishing, peening, cleaning | Low |
| Crushed Glass | 5–6 | Angular | Moderate | Paint removal, profiling | Low |
| Silicon Carbide | 9–9.5 | Angular | High | Etching, heavy rust removal | Moderate |
| Steel Shot | 40–51 HRC | Spherical | Very High | Peening, polishing | Moderate |
| Steel Grit | 40–65 HRC | Angular | Very High | Rust, paint removal | Moderate |
| Garnet | 6.5–7.5 | Angular | Moderate | Coating prep, wet blasting | Low |

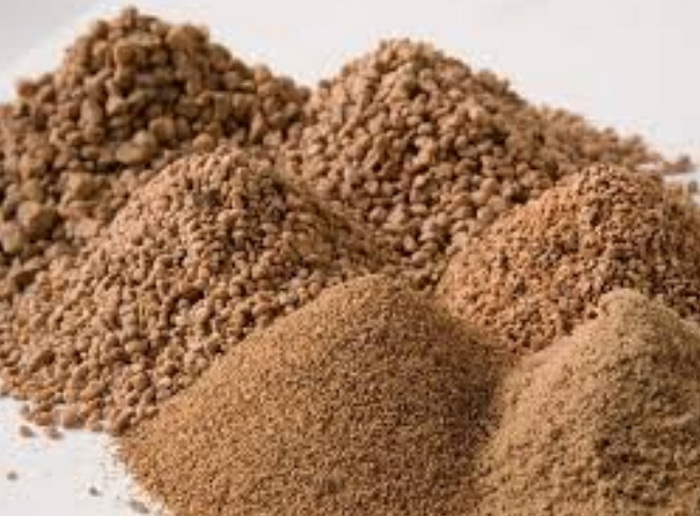

| Walnut Shells | 4.5–5 | Angular | Moderate | Cleaning, polishing | Very Low |
| Corn Cob | 4–4.5 | Angular | Moderate | Polishing, gentle cleaning | Very Low |
| Plastic Media | Variable | Angular | High | Paint removal, composites | Low |
| Soda | 2.5 | Angular | Low | Rust removal, delicate cleaning | Very Low |
| Staurolite | 7 | Sub-angular | Moderate | Rust, thin coating removal | Moderate |
| Copper/Coal Slag | 6–7 | Angular | Low | Heavy-duty blasting | Moderate |
| Pumice | Soft | Gritty | Low | Delicate cleaning | Very Low |
| Dry Ice | N/A | Pellet | N/A | Residue-free cleaning | Very Low |
Applications and Industry Use Cases- Automotive: Paint stripping, rust removal, restoration (Glass beads, Plastic media, Soda)
- Aerospace: Peening, cleaning, surface prep (Steel shot, Glass beads)
- Construction: Structural steel cleaning, coating prep (Steel grit, Garnet, Slag)
- Marine: Hull cleaning, corrosion removal (Garnet, Copper slag)
- Woodworking: Furniture restoration, paint removal (Walnut shells, Corn cob, Pumice)
- Food Processing: Equipment cleaning (Soda, Corn cob, Dry ice)
- Art & Etching: Glass, stone, and metal etching (Silicon carbide, Aluminum oxide)
- Dust Generation: Choose low-dust media for indoor or sensitive environments.
- Toxicity: Avoid silica sand due to silicosis risk; prefer non-toxic, biodegradable options when possible.
- Waste Management: Recyclable media reduce waste and cost.
- Operator Safety: Use appropriate PPE (respirators, eye protection) for all types of sandblasting media.
- Media Longevity: Harder media like aluminum oxide and steel shot can be reused many times, reducing long-term costs.
- Initial Cost vs. Efficiency: Cheaper media may require more frequent replacement, increasing overall expenses.
- Equipment Wear: Harder, angular media can accelerate equipment wear; regular maintenance is essential.
Understanding the types of sandblasting media and their uses is essential for achieving the desired surface finish, maximizing efficiency, and ensuring safety. Each media type offers unique properties suited for specific applications, from heavy-duty industrial cleaning to delicate restoration work. By considering factors such as surface material, desired finish, environmental impact, and cost, you can select the optimal sandblasting media for any project.
Steel shot consists of spherical pellets that produce a smooth, peened finish, ideal for polishing and cleaning metal surfaces. Steel grit, on the other hand, has an angular shape, making it more aggressive and suitable for removing rust, paint, and coatings from tough surfaces. Both are highly recyclable and commonly used in industrial applications.
Yes, but you should select softer, organic media such as walnut shells, corn cob, or pumice. These types of sandblasting media clean and polish wood without damaging or etching the surface, making them ideal for furniture restoration and delicate woodworking projects.
Biodegradable and non-toxic options like walnut shells, corn cob, and soda (baking soda) are among the most environmentally friendly choices. Crushed glass, made from recycled bottles, is also eco-friendly and safe for use near water sources.
Consider the hardness and sensitivity of the surface, the type of contaminant to be removed, the desired finish, and environmental or safety concerns. Start with a gentler medium if unsure, and increase abrasiveness as needed. Consulting with media suppliers and testing on a small area can also help determine the best option.
Soda blasting is gentle and non-destructive, making it safe for most metals, plastics, and even glass. However, it is not suitable for removing heavy rust or thick coatings, and it may not be effective on very hard surfaces. Always check compatibility with your specific material before use.
