Boron carbide (B₄C) is one of the hardest and lightest ceramic materials known, prized for its exceptional hardness, low density, high melting point, and outstanding chemical stability. These unique properties have made boron carbide tiles indispensable in a variety of high-performance applications, particularly where extreme wear resistance, ballistic protection, and thermal stability are required. This comprehensive article explores the diverse uses of boron carbide tiles, their key properties, manufacturing methods, and practical applications across industries such as defense, nuclear energy, industrial machining, and more.
Boron carbide tiles are engineered ceramic components made from high-purity boron carbide powder, typically formed through hot pressing or sintering processes. Due to their outstanding hardness—second only to diamond—and low density, these tiles provide exceptional protection and wear resistance while remaining lightweight. Their ability to absorb neutrons without generating long-lived radioactive isotopes also makes them valuable in nuclear applications.
- Hardness: Boron carbide has an extremely high hardness, making it highly resistant to abrasion and wear.
- Low Density: At approximately 2.5 grams per cubic centimeter, it is much lighter than many other ceramics or metals used in protective applications.
- High Young's Modulus: This indicates high stiffness and resistance to deformation.
- Thermal Stability: Boron carbide maintains its integrity at elevated temperatures.
- Chemical Inertness: It resists corrosion and chemical attack in harsh environments.
- Neutron Absorption: High neutron cross-section makes it effective for nuclear shielding.
Boron carbide tiles are typically manufactured by:
1. Powder Preparation: High-purity B₄C powders are produced via carbothermal reduction or other advanced synthesis methods.
2. Forming: Powders are pressed into desired shapes—rectangular, hexagonal, cylindrical, or custom geometries.
3. Sintering or Hot Pressing: High-temperature processing densifies the powder into a solid tile with minimal porosity.
4. Finishing: Tiles are ground and polished to precise dimensions and surface qualities.
5. Lamination: In ballistic applications, tiles are often combined with backing materials such as Kevlar or nylon spall shields.
Boron carbide tiles are extensively used in personal body armor, vehicle armor, and aircraft protection systems. Their light weight combined with extreme hardness allows for effective protection against bullets, shrapnel, and explosive fragments without excessive bulk.
- Personal Protective Equipment: Boron carbide plates are core components in ballistic vests and helmets.
- Vehicle Armor: Tiles protect military vehicles from improvised explosive devices (IEDs) and ballistic threats.
- Aircraft Protection: Used in rotor hubs, fuel lines, and electronic enclosures to safeguard critical components.
The tiles' ability to shatter incoming projectiles into small fragments while absorbing energy is crucial for stopping power.
Boron carbide's high neutron absorption cross-section makes it ideal for nuclear reactor control rods and shielding materials. It effectively captures neutrons without producing long-lived radioactive byproducts, enhancing reactor safety.
- Control Rods: Boron carbide tiles regulate nuclear fission reactions.
- Radiation Shielding: Used in nuclear facilities to protect personnel and equipment.
Due to its wear resistance, boron carbide tiles are used in harsh industrial environments:
- Blasting Nozzles: Resistant to erosion from abrasive particles.
- Wire Drawing Dies and Thread Guides: Provide long-lasting performance in metal forming.
- Grinding and Polishing: Used as abrasive media and in precision machining.
Boron carbide's hardness and thermal stability make it suitable for cutting tools designed to process hard and brittle materials like ceramics and superalloys.
- Sputtering Targets: Used in thin film deposition processes.
- Composite Reinforcement: Boron carbide tiles or powders reinforce metal and polymer composites.
- Heat-Resistant Panels: Used in high-temperature environments requiring chemical and mechanical stability.

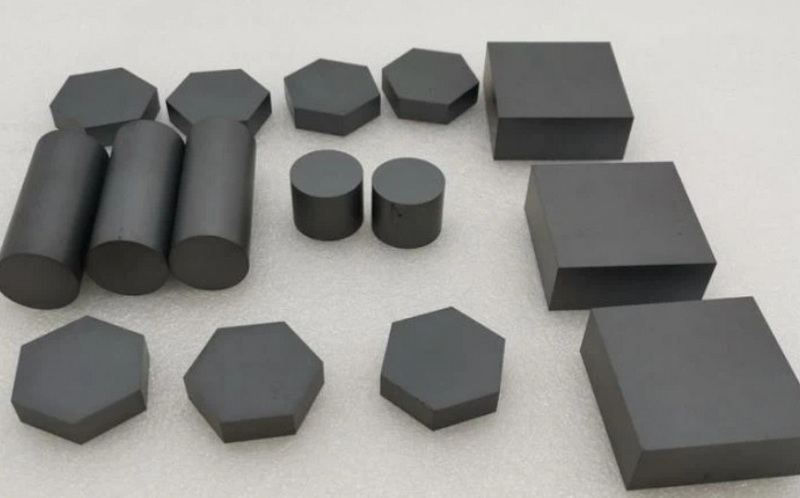

Boron carbide tiles can be manufactured in various shapes and sizes tailored to specific applications:
- Rectangular Tiles: Commonly used in large-area armor panels.

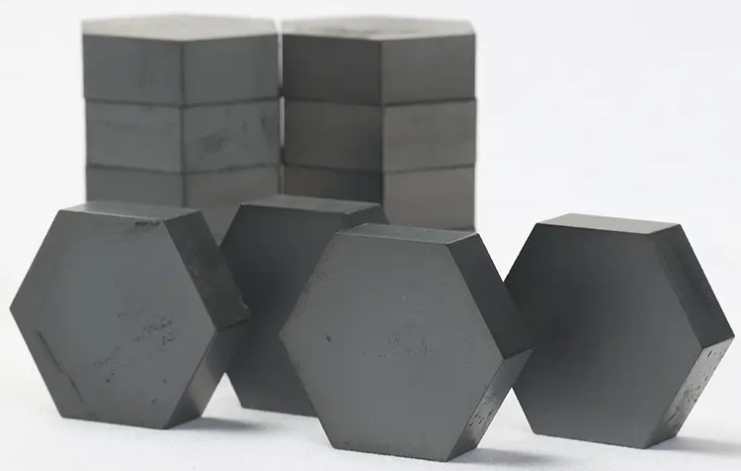

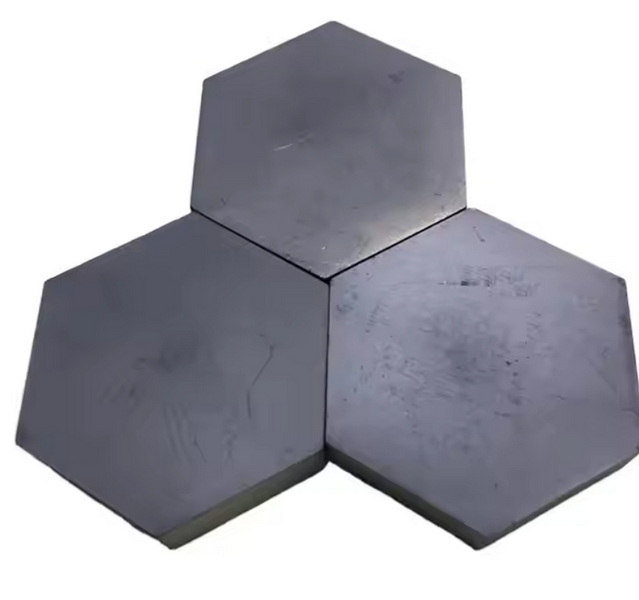

- Hexagonal Tiles: Allow for efficient tiling with minimal gaps, enhancing coverage and structural integrity.
- Cylindrical and Curved Tiles: Designed for complex geometries such as rotor hubs or curved armor surfaces.
- Custom Shapes: Tailored for specialized industrial components.
Tiles may also feature raised edges or chamfers to improve mass efficiency and assembly.
- Lightweight Protection: Boron carbide's low density reduces the weight burden on personnel and vehicles.
- Multi-Hit Capability: Tiles can withstand multiple projectile impacts without catastrophic failure.
- Spall Control: Backing layers prevent dangerous ceramic fragments from causing injury.
- Thermal and Environmental Resistance: Maintains performance in extreme temperatures and corrosive environments.
- Manufacturing Cost: High-purity boron carbide and advanced processing increase costs.
- Brittleness: While hard, boron carbide is brittle and requires careful design to prevent catastrophic failure.
- Machining Difficulty: Its hardness makes shaping and finishing challenging.
- Material Availability: High-quality raw materials and consistent production are critical.
- Nanostructured Boron Carbide: Enhancing toughness and mechanical properties.
- Hybrid Armor Systems: Combining boron carbide tiles with other materials for optimized protection.
- Additive Manufacturing: Exploring 3D printing for complex tile geometries.
- Improved Coatings: Developing surface treatments to enhance durability and reduce spall.
Boron carbide tiles are indispensable in applications demanding exceptional hardness, lightweight protection, and thermal stability. Their use in ballistic armor, nuclear reactors, industrial wear parts, and cutting tools highlights their versatility and performance. Despite challenges related to cost and brittleness, ongoing research and manufacturing advancements continue to expand their capabilities and applications. Boron carbide tiles remain at the forefront of advanced ceramic materials, providing critical solutions in defense, industry, and technology.
They are used in ballistic armor, nuclear control rods, industrial wear components, cutting tools, and high-temperature panels.
Because of their extreme hardness, low weight, and ability to absorb and disperse impact energy effectively.
Common shapes include rectangular, hexagonal, cylindrical, and custom geometries.
High production costs, brittleness, and difficulty in machining and finishing.
Yes, including nanostructuring, hybrid armor systems, additive manufacturing, and improved surface coatings.
