Boron carbide plates are among the most advanced and high-performance ceramic materials used today. Known for their exceptional hardness, low density, and outstanding resistance to wear and impact, these plates have become indispensable in a variety of critical applications. From military ballistic armor to industrial wear-resistant components, boron carbide plates offer unique advantages that make them a preferred choice in demanding environments.
This comprehensive article explores the diverse uses of boron carbide plates, detailing their properties, manufacturing processes, and applications across industries. Supported by detailed images, videos, and scientific insights, this guide also includes a FAQ section to address common questions about boron carbide plates.

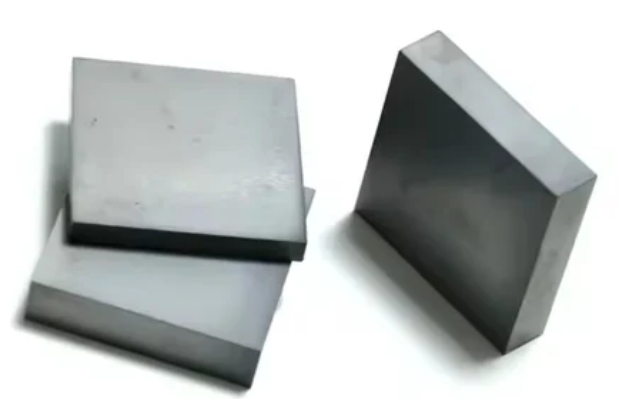

Boron carbide (B₄C) plates are engineered ceramic components prized for their extreme hardness—ranking third after diamond and cubic boron nitride—and low density, typically around 2.52 g/cm3. These plates combine light weight with exceptional strength, making them ideal for applications requiring high-performance materials that do not compromise mobility or durability.
Their unique crystal structure, composed of boron icosahedra and carbon-boron-carbon chains, gives boron carbide plates outstanding mechanical and chemical properties, including high fracture toughness, thermal stability, and corrosion resistance.
| Property | Value / Description |
|---|---|
| Chemical Formula | B₄C (approximate) |
| Density | 2.1 to 2.7 g/cm3 |
| Mohs Hardness | 9.49 (extremely hard) |
| Melting Point | 2445 °C |
| Thermal Conductivity | ~30 W/m·K |
| Flexural Strength | ~400 MPa |
| Fracture Toughness | ~3.5 MPa·m1/2 |
| Chemical Stability | Highly inert; corrosion resistant |
These properties make boron carbide plates exceptionally suited for high-stress, high-wear environments.
Boron carbide plates are typically manufactured through:
- Powder synthesis: Carbothermal or magnesiothermal reduction of boron oxide with carbon to produce boron carbide powder.
- Powder processing: Milling and blending to achieve precise particle size and purity.
- Sintering: Hot pressing or spark plasma sintering to densify powder into solid plates.
- Machining and finishing: Due to hardness, machining is challenging and requires diamond tools; finishing ensures dimensional accuracy and surface quality.
Advances in manufacturing have improved plate uniformity, toughness, and ballistic performance.
Boron carbide plates are a cornerstone of modern ballistic protection:
- Used in Small Arms Protective Inserts (SAPI) and Enhanced SAPI (ESAPI) plates worn by military personnel.
- Provide lightweight, high-hardness protection against armor-piercing rounds and shrapnel.
- Used in vehicle armor for tanks, helicopters, and armored personnel carriers.
- Boron carbide's ability to shatter incoming projectiles while dispersing energy minimizes trauma.
- Applied in wear-resistant liners for ball mills, hoppers, and chutes handling abrasive materials.
- Used for cutting tools, grinding wheels, and abrasive powders due to superior hardness.
- Extend service life of components exposed to erosion and abrasion.
- Boron carbide plates serve as neutron absorbers in control rods and reactor shielding.
- Their high neutron absorption cross-section and thermal stability are critical for nuclear safety.
- Used in lightweight structural components requiring high strength-to-weight ratios.
- Protect pilot seats and critical areas in helicopters and aircraft.
- Employed in missile and satellite components for durability.
- Boron carbide plates and powders are used in manufacturing wire drawing dies, cutting tools, and polishing compounds.
- Their hardness allows machining of brittle and hard materials like ceramics and gemstones.
- Protective coatings and armor for high-security safes and vaults.
- Components in high-temperature furnaces and chemical reactors.
- Additives in metal-based friction materials and composites.
- Extreme hardness: Third hardest material, providing excellent wear resistance.
- Lightweight: Density about one-third that of steel, reducing load and increasing mobility.
- High strength and toughness: Suitable for impact and abrasion resistance.
- Thermal and chemical stability: Performs well in harsh environments.
- Neutron absorption: Critical for nuclear applications.
- Multi-hit capability: Can withstand multiple ballistic impacts without catastrophic failure.
- Brittleness: Susceptible to cracking under high impact or stress concentrations.
- Manufacturing cost: High due to complex synthesis and machining.
- Machining difficulty: Requires diamond tools and precise processes.
- Limited availability: Specialized production limits supply.
- Development of composite ceramics combining boron carbide with other materials to improve toughness.
- Advances in additive manufacturing for complex shapes.
- Research into nano-engineered powders for enhanced properties.
- Expanding use in civilian protective gear and industrial applications.
Boron carbide plates are a vital material in modern protective and industrial applications. Their unmatched hardness, lightweight nature, and chemical stability make them ideal for ballistic armor, wear-resistant components, nuclear shielding, and high-performance cutting tools. Despite challenges like brittleness and cost, ongoing research and technological advances continue to enhance their performance and accessibility. Understanding the properties and applications of boron carbide plates enables industries to leverage this extraordinary ceramic for safety, durability, and innovation.
They are used in ballistic armor, industrial wear-resistant components, nuclear control rods, aerospace parts, and cutting tools.
Because of its extreme hardness, lightweight, and ability to absorb and dissipate ballistic energy effectively.
Through powder synthesis, milling, high-temperature sintering, and precision machining.
They are brittle, costly, and difficult to machine.
Yes, increasingly in personal protective equipment and industrial wear parts.
