Choosing the right crucible material is critical for industries involved in metal melting, refining, and high-temperature processing. Two of the most popular materials for crucibles are silicon carbide (SiC) and graphite. Both have unique properties and advantages, but the question remains: Is silicon carbide better than graphite crucibles? This article provides an in-depth comparison of silicon carbide and graphite crucibles, covering their physical and chemical properties, performance in various applications, advantages, limitations, and cost considerations. We also include practical insights, case studies, and expert opinions to help you make an informed decision.

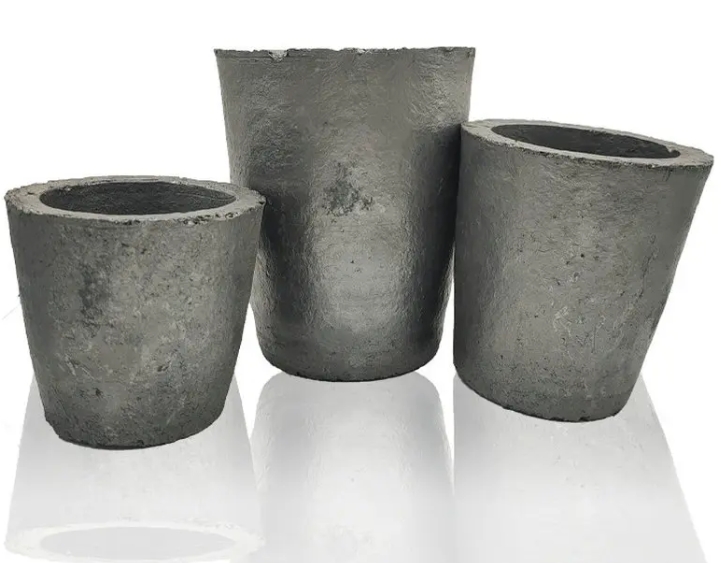

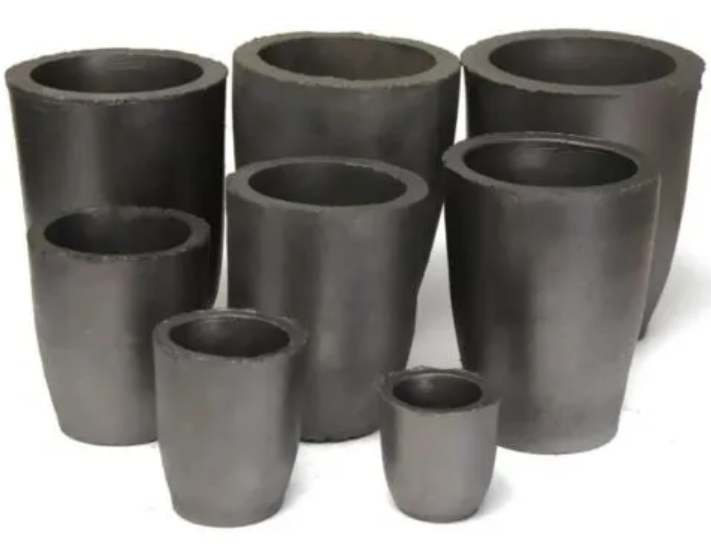

Silicon carbide crucibles are made from a compound of silicon and carbon, known for their exceptional hardness, thermal conductivity, and resistance to thermal shock and chemical corrosion. They are widely used in metallurgy, foundries, ceramics, and materials science for melting and holding metals and alloys at high temperatures.
Graphite crucibles are primarily composed of natural or synthetic graphite, a form of carbon with a layered structure. They are valued for their excellent thermal conductivity, high melting point, chemical stability, and resistance to thermal shock. Graphite crucibles are commonly used in metal casting, chemical processing, and electronics manufacturing.
| Property | Silicon Carbide Crucibles | Graphite Crucibles |
|---|---|---|
| Density (g/cm³) | 3.0 – 3.2 | 1.8 – 2.2 |
| Maximum Operating Temp (°C) | ~1600 – 1800 | Up to 3000 (in non-oxidizing atmosphere) |
| Thermal Conductivity (W/m·K) | 120 – 170 | 80 – 150 |
| Thermal Expansion (µm/m·K) | 4.0 – 4.6 | 7.0 – 7.4 |
| Ultimate Strength (MPa) | 210 – 370 | 40 – 95 |
| Hardness (GPa) | ~25 | ~15 |
| Porosity | Low | Higher |
| Chemical Resistance | Excellent | Good, but less than SiC |
| Weight | Heavier | Lighter |
- Thermal Conductivity: Both materials have excellent thermal conductivity, but SiC generally offers faster and more uniform heat transfer.
- Temperature Resistance: Graphite crucibles can withstand higher temperatures but require protective atmospheres to prevent oxidation. SiC crucibles operate well at slightly lower temperatures but are more oxidation resistant.
- Mechanical Strength: SiC crucibles are significantly stronger and harder, making them more resistant to wear and mechanical damage.
- Thermal Expansion: SiC has lower thermal expansion, reducing the risk of cracking during rapid temperature changes.
- Porosity: SiC crucibles are denser and less porous, enhancing corrosion resistance and lifespan.
SiC crucibles excel in rapid heat transfer and thermal shock resistance. Their low thermal expansion coefficient allows them to withstand rapid temperature changes without cracking or spalling. This makes them ideal for processes involving frequent heating and cooling cycles.
Graphite crucibles have a higher melting point (~3000°C) and excellent thermal shock resistance. However, they oxidize readily in air above 450°C, necessitating protective atmospheres or coatings during high-temperature use. Their higher thermal expansion can increase the risk of thermal stress.
- Silicon Carbide: Exhibits outstanding chemical inertness, resisting attack from acids, alkalis, and molten metals. This ensures minimal contamination of molten materials and longer crucible life.
- Graphite: Generally chemically stable but more susceptible to oxidation and chemical attack in aggressive environments, especially at elevated temperatures.
SiC crucibles demonstrate superior wear resistance due to their high hardness (~25 GPa) compared to graphite (~15 GPa). This translates to longer service life, especially in abrasive or corrosive melting processes. SiC crucibles also have higher fracture toughness and impact resistance, reducing the likelihood of breakage during handling or thermal cycling.
- Melting and refining ferrous and non-ferrous metals, including medium carbon steel and rare metal alloys.
- High-temperature sintering and crystal growth in ceramics and semiconductor industries.
- Processes requiring rapid heating and cooling cycles due to excellent thermal shock resistance.
- Environments with corrosive molten materials where chemical resistance is critical.
- Lithium-ion battery cathode sintering and other advanced manufacturing processes.
- Melting non-ferrous metals such as aluminum, gold, silver, and copper.
- High-temperature applications in non-oxidizing atmospheres, such as vacuum or inert gas furnaces.
- Applications requiring excellent electrical conductivity, such as electrode manufacturing.
- Cost-sensitive operations where extreme durability is less critical.
- Chemical processing involving acids and alkalis at moderate temperatures.
While graphite crucibles are generally less expensive upfront, silicon carbide crucibles offer a longer lifespan—often 3 to 5 times that of graphite crucibles—due to their superior mechanical and chemical properties. This longevity can lead to significant cost savings over time by reducing downtime, replacement frequency, and contamination risks.
Case Study: A lithium-ion battery manufacturer reported a 60% reduction in crucible replacement frequency and a 40% annual cost saving after switching from cordierite to SiC crucibles, despite the higher initial cost.
- Higher initial cost and more complex manufacturing process.
- Slightly lower maximum operating temperature compared to graphite.
- May require careful handling to avoid damage during transport due to brittleness.
- Susceptible to oxidation at high temperatures in air.
- Lower mechanical strength and wear resistance.
- Higher porosity can lead to faster degradation in corrosive environments.
To combine the advantages of both materials, composite crucibles made from silicon carbide and graphite are gaining popularity. These composites offer:
- Enhanced thermal shock resistance.
- Improved wear and corrosion resistance.
- Faster heat conduction and energy efficiency.
- Longer service life and reduced metal contamination.
Is silicon carbide better than graphite crucibles? The answer depends on your specific application requirements:
- For high-temperature, corrosive, and demanding environments requiring durability and thermal shock resistance, silicon carbide crucibles are superior.
- For extremely high-temperature applications in non-oxidizing atmospheres and cost-sensitive operations, graphite crucibles remain a strong choice.
- Composite crucibles combining SiC and graphite offer promising performance improvements for many industrial uses.
Ultimately, silicon carbide crucibles represent a wise long-term investment for industries prioritizing performance, longevity, and purity, while graphite crucibles provide versatility and cost-effectiveness for a broad range of applications.
Yes, silicon carbide crucibles have higher hardness, wear resistance, and mechanical strength, making them more durable in demanding applications.
Graphite crucibles oxidize rapidly in air above 450°C, so they require protective atmospheres or coatings for open-air high-temperature use.
Silicon carbide crucibles generally offer superior thermal shock resistance due to their lower thermal expansion and higher mechanical strength.
Yes, SiC crucibles have a higher upfront cost but often provide better value over time due to longer lifespan and reduced replacement frequency.
Industries such as metallurgy, advanced ceramics, semiconductor manufacturing, and lithium-ion battery production benefit significantly from SiC crucibles.
