Silicon carbide (SiC) is a versatile compound used in various applications, including abrasives, semiconductors, and high-performance ceramics. Its production involves several methods, each with its unique advantages and challenges. This article will delve into the different processes of making silicon carbide, highlighting key techniques and applications.

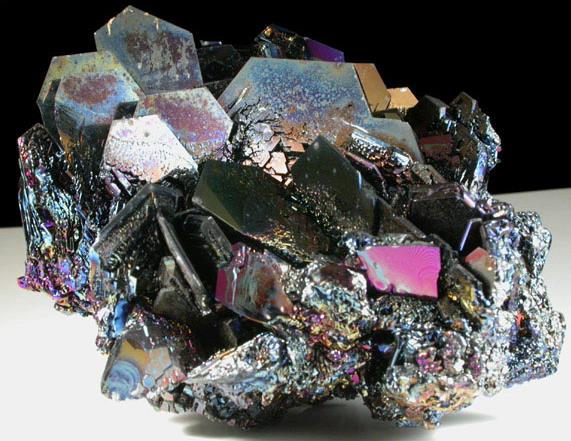

Silicon carbide is a compound composed of silicon and carbon atoms, forming a crystal lattice structure. It is known for its exceptional hardness, thermal conductivity, and electrical conductivity. These properties make SiC an essential material in industries such as automotive, aerospace, and electronics.
- Hardness: Silicon carbide is one of the hardest substances known, making it ideal for use in abrasives and cutting tools.
- Thermal Conductivity: It has high thermal conductivity, which is beneficial for applications requiring efficient heat dissipation.
- Electrical Conductivity: SiC can be made into both n-type and p-type semiconductors, making it suitable for electronic devices.
The Acheson method is one of the oldest and most common techniques for producing silicon carbide. It involves heating a mixture of silica sand and carbon (such as coal) in an electric resistance furnace at high temperatures, typically between 1,600°C and 2,500°C.
Process Overview:
- Raw Materials: Silica sand and carbon.
- Equipment: Electric resistance furnace with graphite electrodes.
- Temperature: 1,600°C to 2,500°C.
- Product: Silicon carbide crystals of varying purity.
The purity of the SiC produced varies based on its distance from the heat source, with the purest crystals forming closest to the graphite electrodes. This method is cost-effective but may produce SiC with lower purity compared to other methods.
The Lely method is used to produce high-purity single-crystal silicon carbide. This process involves sublimating silicon carbide powder at high temperatures (around 2,500°C) in an argon atmosphere and redepositing it onto a cooler substrate.
Process Overview:
- Raw Materials: High-purity silicon carbide powder.
- Equipment: Induction furnace with graphite crucible.
- Temperature: Up to 2,500°C.
- Product: High-quality single-crystal SiC.
This method yields crystals with minimal defects, making them suitable for semiconductor applications. The Lely method is more complex and expensive than the Acheson method but provides higher purity and quality.
CVD is a technique used to grow cubic silicon carbide crystals. It involves the deposition of silane and other gases onto a substrate in a vacuum environment.
Process Overview:
- Raw Materials: Silane (SiH4), hydrogen, and nitrogen.
- Equipment: Vacuum chamber with heating elements.
- Temperature: Typically around 1,000°C to 1,500°C.
- Product: Cubic SiC crystals.
CVD allows for precise control over crystal growth and doping, making it ideal for electronic applications. This method is highly versatile and can be used to produce thin films or bulk crystals.
PVT is a method used for growing large single crystals of silicon carbide. It involves the sublimation of SiC powder in a sealed chamber and its deposition onto a seed crystal.
Process Overview:
- Raw Materials: High-purity silicon carbide powder.
- Equipment: Sealed chamber with temperature gradient.
- Temperature: Up to 2,500°C.
- Product: Large single-crystal SiC wafers.
PVT is widely used in the production of SiC wafers for semiconductor applications. It offers high-quality crystals with minimal defects, making it suitable for high-power electronic devices.
This method involves the reduction of silica with carbon at high temperatures to form silicon carbide.
Process Overview:
- Raw Materials: Silica and carbon.
- Equipment: High-temperature furnace.
- Temperature: Typically around 1,500°C to 2,000°C.
- Product: Silicon carbide powder.
This process is simpler and more energy-efficient compared to other methods but may produce lower purity SiC. It is often used for producing SiC powders used in abrasives and refractory materials.
Silicon carbide's unique properties make it versatile across various industries:
- Abrasive Materials: Used in cutting tools and abrasives due to its hardness.
- Semiconductors: Employed in high-power electronic devices due to its electrical conductivity and thermal stability.
- Ceramics: Used in high-performance ceramics for applications requiring thermal resistance and durability.
- Automotive and Aerospace: SiC components are used in vehicle parts and aerospace components due to their strength and resistance to wear.
As technology advances, silicon carbide is being explored for new applications, including:
- Renewable Energy Systems: SiC can improve the efficiency and reliability of solar inverters and wind turbines.
- Electric Vehicles: High-power SiC devices can enhance the performance of electric vehicles by improving charging speed and efficiency.
Despite its advantages, silicon carbide production faces challenges such as high energy consumption and the need for precise control over crystal growth conditions. Future research focuses on improving efficiency and reducing costs while maintaining high-quality output. Additionally, there is a growing interest in developing more sustainable production methods that minimize environmental impact.
Silicon carbide is a critical material with diverse applications, from abrasives to semiconductors. Its production involves several methods, each tailored to specific applications and purity requirements. Understanding these processes is essential for optimizing SiC production and exploring new applications.
The primary methods include the Acheson method, Lely method, Chemical Vapor Deposition (CVD), Physical Vapor Transport (PVT), and carbothermal reduction.
Silicon carbide is used in abrasives, semiconductors, high-performance ceramics, and as a material in automotive and aerospace industries.
SiC is known for its hardness, thermal conductivity, and electrical conductivity, making it suitable for various industrial applications.
Higher purity SiC is required for semiconductor applications, while lower purity SiC can be used in abrasives and cutting tools.
Challenges include high energy consumption, the need for precise control over crystal growth conditions, and maintaining high purity levels.
