Views: 222 Author: Lake Publish Time: 2025-03-27 Origin: Site
Content Menu
● Understanding Aluminum Oxide Powder
● Methods to Produce Aluminum Oxide Powder
>> 1. Bayer Process (Industrial Scale)
>>> Steps:
>> 2. Calcination of Aluminum Hydroxide
>>> Steps:
>> 3. Sol-Gel Synthesis (Nanopowders)
>>> Steps:
>> 4. Plasma Arc Melting (High-Purity Alumina)
>>> Steps:
● Key Equipment for Production
● Applications of Aluminum Oxide Powder
>> 1. Abrasives and Cutting Tools
>> 3. Catalysis
● Challenges in Aluminum Oxide Production
● FAQ
>> 1. What is the difference between α-Al₂O₃ and γ-Al₂O₃?
>> 2. Can I make alumina powder at home?
>> 3. How is nano-alumina powder synthesized?
>> 4. What are the environmental impacts of the Bayer process?
>> 5. Which method is best for high-purity alumina?

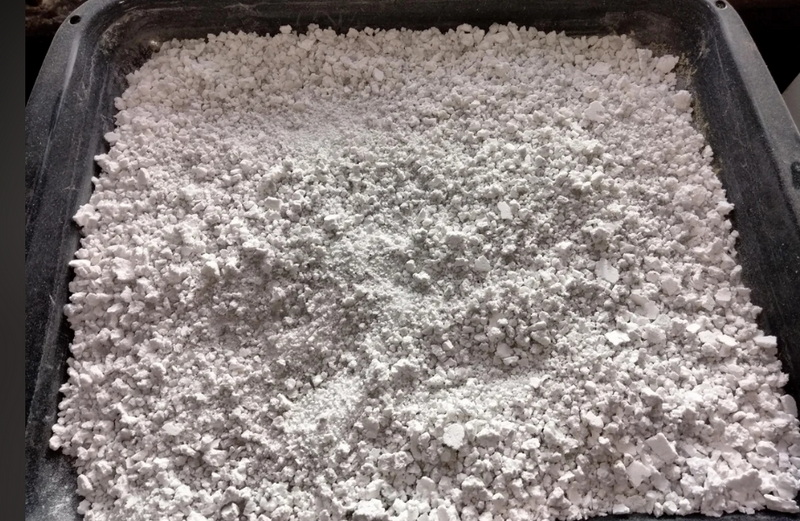

Aluminum oxide (Al₂O₃) powder is a versatile material with applications ranging from abrasives and ceramics to electronics and catalysis. Its production involves several industrial and laboratory methods, each tailored to achieve specific purity levels, particle sizes, and crystalline structures. This article explores the primary techniques for manufacturing aluminum oxide powder, including the Bayer process, calcination, and advanced synthesis methods, supported by technical insights, visual aids, and practical examples.
Aluminum oxide, or alumina, is a white crystalline powder with high hardness (9 Mohs), thermal stability (melting point: 2,072°C), and chemical inertness. Key forms include:
- α-Al₂O₃ (Corundum): Thermally stable, used in abrasives and refractories.
- γ-Al₂O₃: High surface area, ideal for catalysis and adsorbents.
- Nanopowders: Ultra-fine particles (≤100 nm) for advanced ceramics and coatings.
The Bayer process is the primary method for producing aluminum oxide from bauxite ore.
1. Bauxite Crushing: Grind bauxite (40–60% Al₂O₃) into fine particles.
2. Digestion: Mix with hot sodium hydroxide (NaOH) at 150–250°C to dissolve alumina.
3. Clarification: Remove insoluble impurities (e.g., silica, iron oxides).
4. Precipitation: Cool the solution to crystallize aluminum hydroxide (Al(OH)₃):
5. Calcination: Heat Al(OH)₃ at 1,200–1,300°C to form α-Al₂O₃.
This method is simpler and suitable for small-scale or high-purity alumina production.
1. Synthesis of Al(OH)₃: React aluminum sulfate (Al₂(SO₄)₃) with ammonia (NH₃).
2. Washing and Drying: Remove soluble salts and dry the precipitate.
3. Calcination: Heat at 400–600°C for γ-Al₂O₃ or 1,200°C for α-Al₂O₃.
The sol-gel method produces high-purity, nano-sized alumina powders.
1. Precursor Solution: Mix aluminum alkoxide (e.g., Al(OPr)₃) with ethanol.
2. Hydrolysis: Add water to form a colloidal sol.
3. Gelation: Age the sol to form a gel network.
4. Drying and Calcination: Dry the gel and calcine at 500–800°C.
This method vaporizes aluminum in a plasma arc to form ultra-pure Al₂O₃ powder.
1. Aluminum Feedstock: Use high-purity aluminum rods or pellets.
2. Plasma Generation: Ionize argon gas at 10,000–15,000°C.
3. Vapor Deposition: Condense aluminum vapor in an oxygen-rich atmosphere.
| Method | Equipment | Key Parameters |
|---|---|---|
| Bayer Process | Rotary kiln, digesters | Temperature: 150–250°C |
| Calcination | Muffle furnace, rotary kiln | Temperature: 400–1,300°C |
| Sol-Gel | Reactor, spray dryer | pH: 3–5, Calcination: 500°C |
| Plasma Arc | Plasma torch, condenser | Power: 50–100 kW |
- Grinding Wheels: α-Al₂O₃ for metal and ceramic polishing.
- Sandpaper: Coated with alumina grit (80–3,000 mesh).
- Spark Plugs: High thermal shock resistance.
- Biomedical Implants: Wear-resistant hip replacements.
- Catalyst Supports: γ-Al₂O₃ for petrochemical refining.
- Adsorbents: Porous alumina for water purification.
- Insulators: Substrates for integrated circuits.
- Thermal Interface Materials: Nano-alumina in heat sinks.
1. Energy Intensity: Calcination and plasma methods require significant energy.
2. Waste Management: Red mud from Bayer process contains toxic heavy metals.
3. Cost of High-Purity Powders: Sol-gel and plasma methods are expensive.
1. Green Synthesis: Recycling aluminum scrap into alumina powder.
2. Additive Manufacturing: 3D printing of alumina ceramics via binder jetting.
3. Nanocomposites: Alumina-graphene hybrids for enhanced mechanical properties.
Aluminum oxide powder is produced through methods ranging from the industrial Bayer process to advanced sol-gel synthesis. Each technique balances cost, purity, and particle size for specific applications. As demand grows for high-performance materials, innovations in sustainable production and nanotechnology will drive the evolution of alumina manufacturing.
α-Al₂O₃ is thermally stable and used in abrasives, while γ-Al₂O₃ has high surface area for catalysis.
Yes—calcining aluminum hydroxide (from aluminum sulfate and ammonia) in a kiln at 1,200°C yields α-Al₂O₃.
Sol-gel or plasma arc methods produce nanoparticles (10–100 nm) with high purity.
It generates red mud waste containing heavy metals, requiring careful disposal.
Plasma arc melting produces >99.99% pure alumina but is cost-prohibitive for large-scale use.
[1] https://byjus.com/chemistry/al2o3/
[2] https://www.samaterials.com/content/aluminum-oxide-properties-applications-and-production.html
[3] https://www.chemicalbook.com/ChemicalProductProperty_EN_CB9853056.htm
[4] https://www.chemicalbook.com/article/aluminium-oxide-properties-and-applications.htm
[5] https://en.wikipedia.org/wiki/Aluminium_oxide
[6] https://chem.libretexts.org/Bookshelves/Inorganic_Chemistry/Supplemental_Modules_and_Websites_(Inorganic_Chemistry)/Descriptive_Chemistry/Elements_Organized_by_Block/2_p-Block_Elements/Group_13:_The_Boron_Family/Z013_Chemistry_of_Aluminum_(Z13)/Aluminum_Oxide
[7] https://www.ceramicsrefractories.saint-gobain.com/news-articles/aluminum-oxide-what-it-where-its-used
[8] https://www.azom.com/properties.aspx?ArticleID=52
[9] https://benchmarkabrasives.com/blogs/abrasives/aluminum-oxide-properties-uses-and-benefits
[10] https://accuratus.com/alumox.html
[11] https://www.finishingsystems.com/blog/aluminum-oxide-properties-and-benefits/
