Sandblasting, also known as abrasive blasting, is a powerful method of propelling abrasive material against a surface at high pressure to remove contaminants, smooth rough areas, or prepare a surface for further treatments. When restoring an automotive rearend, selecting the right sandblasting media is crucial to avoid damage and achieve the desired finish. The rearend, a critical component in transferring power from the engine to the wheels, often accumulates rust, scale, and old coatings over time. This article explores various sandblasting media options suitable for cleaning an automotive rearend, their applications, and factors to consider when making a selection, ensuring you achieve the best possible results.
Sandblasting involves using compressed air to direct abrasive particles at high speed onto a surface. The impact of these particles removes rust, paint, dirt, and other unwanted materials. The choice of abrasive media significantly impacts the efficiency and effectiveness of the cleaning process. Different media offer varying degrees of abrasiveness, cost, and environmental impact, making the selection process a critical step in any restoration project. The goal is to remove the unwanted materials without damaging the underlying metal, particularly in the case of automotive parts where structural integrity is paramount.
There are several types of sandblasting media, each with unique properties and applications. Here are some common options:
- Aluminum Oxide Grit: An extremely sharp and long-lasting abrasive, suitable for surface treatments and preparations. Its angular shape ensures efficient material removal, making it ideal for removing tough coatings and rust. However, it can be too aggressive for thinner metal parts, potentially leading to warping or surface damage. Aluminum oxide is also recyclable, making it a cost-effective choice for large-scale projects.
- Crushed Glass Grit: Made from 100% recycled glass, it is an eco-friendly and health-friendly option. It is effective for removing coatings and surface contaminants and can be used around water. Fine grit crushed glass can be used on all parts of a car. 40/70 crushed glass is a preferred choice for car restoration because it can easily remove paint and rust without damaging the car's underlying metal. Crushed glass offers a good balance of abrasiveness and safety, making it a popular choice for automotive restoration.
- Steel Grit: Offers fast stripping action and is commonly used in cleaning, etching, and surface preparations. Steel grit is particularly effective for removing heavy rust and scale from thick metal components. However, its aggressive nature necessitates careful usage to avoid surface damage, especially on thinner sections of the rearend. Proper safety precautions, including appropriate personal protective equipment, are essential when working with steel grit.
- Garnet: A natural silicate mineral with a high stripping rate, low dust production, and a low consumption rate. It is mainly used for wet or dry sandblasting and provides excellent coating preparation and adhesion properties. Garnet is versatile and can be used on a variety of materials, making it a reliable choice for automotive restoration. Its low dust production is an added benefit, improving visibility and reducing the risk of respiratory issues.
- Walnut Shell Grit: A versatile, soft, organic, and biodegradable abrasive. It is best for stripping and cleaning delicate surfaces and parts, such as hardwoods, aircraft, and automotive components. It is unlikely to damage auto part surfaces. Walnut shell grit is an excellent choice for removing paint and light rust without harming the underlying metal. Its softness makes it suitable for cleaning intricate components and delicate surfaces where other media might cause damage.
- Corn Cob Grit: A soft, organic blasting medium used on delicate machine parts and soft substrates such as wood. It is non-toxic and safe for operators, best used on wood surfaces, and does not create any damage on the treated surface. Corn cob grit is particularly useful for removing contaminants and polishing surfaces without causing abrasion. It is a sustainable option that is safe for both the operator and the environment.
- Soda: Made from baking soda, it offers non-destructive cleaning and is popular for removing rust from metals without causing damage. Soda blasting is ideal for cleaning delicate components and removing paint without affecting the underlying surface. It is water-soluble, making cleanup easy, and it is safe for use on a variety of materials, including aluminum and plastic.
- Superoxalloy: Formulated to remove coatings quickly without damaging underlying surfaces, it removes rust, paint, and most other coatings in one step without leaving embedded particles. It lessens the likelihood of rust bloom and is better for employees and the environment because it is biosoluble. Superoxalloy abrasives are designed to provide efficient coating removal while minimizing the risk of surface damage and environmental impact.
| Media | Description | Hardness |
|---|---|---|
| Soda | Non-destructive cleaning, removes rust without damage | 2.5 |
| Aluminum Oxide Grit | Sharp, long-lasting, can be recycled many times | 8-9 |
| Crushed Glass Grit | Eco-friendly, non-toxic, removes coatings and surface contamination | 5-6 |
| Steel Grit | Fast stripping action, used in cleaning, etching, and surface preparation | 40-65 HRC |
| Walnut Shell Grit | Versatile, soft, organic, biodegradable, best for delicate surfaces | 4.5-5 |
| Corn Cob Grit | Soft, organic, used on delicate machine parts and soft substrates such as wood | 4-4.5 |
| Garnet | High stripping rate, very low dust, lowest consumption rate | 6.5 - 7.5 |
| Superoxalloy Abrasives | Removes coatings quickly without damaging underlying surfaces and lessens the likelihood of rust bloom | Not specified |
- Surface Material: Identify the type of metal your rearend is made of. Softer metals require less abrasive media to prevent damage. Aluminum, for example, requires a gentler approach compared to cast iron.
- Coating Type: Determine the type of coating you need to remove (e.g., rust, paint, or thick coatings). Different media are more effective at removing specific types of coatings. Understanding the composition and thickness of the coating will help you select the appropriate abrasive.
- Desired Finish: Consider the level of smoothness or roughness required for the subsequent treatments like painting or coating. Some media leave a smoother surface profile, which is ideal for painting, while others create a rougher texture, which is better for certain types of coatings that require adhesion.
- Environmental Impact: Opt for eco-friendly options like crushed glass or walnut shells to minimize environmental impact. Sustainable practices are becoming increasingly important, and choosing environmentally friendly media is a responsible choice.
- Equipment Compatibility: Ensure that the media you choose is compatible with your sandblasting equipment. Some media may require specific nozzle sizes or pressure settings to work effectively.
1. Preparation:
- Cleaning: Remove any loose dirt, grease, or debris from the rearend using a degreaser and a wire brush. This initial cleaning will improve the efficiency of the sandblasting process and prevent contamination of the abrasive media.
- Masking: Protect any areas you don't want to be sandblasted with masking tape or rubber plugs. Critical areas, such as bearing surfaces and threaded holes, should be carefully masked to prevent damage or contamination.
- Safety Gear: Wear safety glasses, gloves, and a respirator to protect yourself from dust and debris. Proper safety gear is essential to prevent injury and protect your health.
2. Sandblasting:
- Loading Media: Fill the sandblaster with your chosen abrasive media. Ensure that the media is dry and free from contaminants to prevent clogging and ensure consistent performance.
- Adjusting Pressure: Start with a low-pressure setting (e.g., 40-60 PSI) and adjust as needed. Lower pressure is generally safer for thinner metals, while higher pressure may be required for removing tougher coatings.

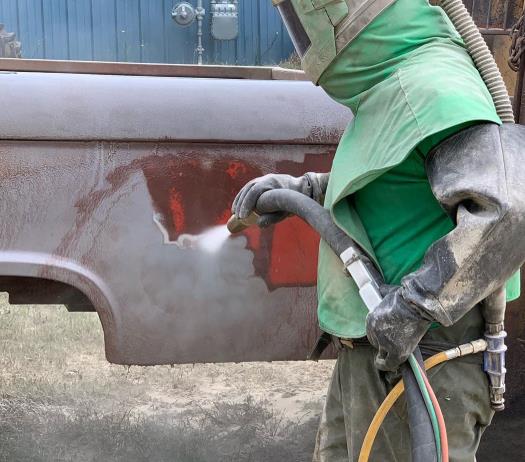

- Blasting Technique: Hold the nozzle at a slight angle and maintain a consistent distance from the surface. Move the nozzle in a sweeping motion to avoid concentrating on one spot. Consistent movement and angle will ensure an even finish and prevent localized damage.
3. Post-Blasting:
- Cleaning: Remove any residual abrasive media with compressed air or a brush. Thorough cleaning is essential to prevent contamination of subsequent coatings or finishes.
- Inspection: Check the surface for any remaining contaminants or damage. Pay close attention to areas with intricate details or thin sections, and address any issues before proceeding.
- Finishing: Apply a primer or coating to protect the freshly blasted surface from rust. A protective coating is crucial to prevent the formation of rust and corrosion, especially in humid environments.
Choosing the right sandblasting media for cleaning an automotive rearend depends on several factors, including the material of the rearend, the type of coating to be removed, and the desired finish. Options like crushed glass and walnut shells are generally safer for thinner metal parts, while more abrasive media like aluminum oxide and steel grit are suitable for tougher surfaces. Always prioritize safety and consider the environmental impact of your chosen media. Proper preparation and technique are also essential for achieving the desired results and preserving the integrity of the automotive rearend. Ultimately, taking the time to select the appropriate media and follow best practices will lead to a successful restoration project and a longer lifespan for your vehicle.
A: For removing rust, crushed glass, garnet, or aluminum oxide are effective choices. Crushed glass is preferred for auto restoration because it removes rust without damaging the underlying metal. Aluminum oxide can be used but with caution on thinner metals.
A: Yes, but be cautious with thinner materials. Effective media for all parts include fine grit crushed glass or baking soda. Ensure proper pressure control to prevent warping or damage.
A: Some media are more eco-friendly than others. Crushed glass, walnut shells, and corn cob grit are biodegradable and less harmful. Always follow local regulations for disposal of used media.
A: Start by cleaning the surface to remove loose dirt, grease, and debris. Mask off any areas you don't want to be sandblasted. Ensure you have proper safety gear, including eye and respiratory protection.
A: Always wear safety glasses, gloves, and a respirator to protect yourself from dust and debris. Work in a well-ventilated area. Follow the manufacturer's instructions for your sandblasting equipment and abrasive media.
