Sandblasting, also known as abrasive blasting or media blasting[9], is a surface treatment process widely employed for cleaning, smoothing, or etching a variety of materials[3]. For large-scale projects, selecting the appropriate media is critical to achieving the desired outcome efficiently and safely. This article explores the various media types used in sandblasting large projects, their properties, applications, and considerations for their use.
Sandblasting media refers to the abrasive materials propelled at high speeds to impact a surface, causing erosion or alteration[3]. The choice of media depends on factors such as the material being blasted, the desired surface finish, environmental concerns, and cost[1].
- Hardness: The harder the media, the more aggressive and faster the cleaning process[1]. Abrasives with higher hardness values are more aggressive and clean faster, but they also risk damaging the substrate[1].
- Size and Shape: The size and shape of the particles determine the finish quality, with larger and more irregular particles providing a rougher surface[1]. Particle size and shape influence the finish quality; larger, irregular particles create rougher surfaces[1].
- Reusability: Some media types can be reused multiple times, making them more cost-effective in the long run[1]. Some media can be reused, making them cost-effective[1].
- Environmental Impact: It's crucial to consider the environmental implications of the media, such as dust production and disposal requirements[1]. Consider dust production and disposal requirements[1].
- Surface Material: Choose a media that is compatible with the substrate to prevent damage[1].
- Desired Finish: Determine the level of smoothness or roughness you wish to achieve and select a media that meets your requirements[1].
- Cost: Consider both the initial purchase price and the long-term costs associated with the media[1].

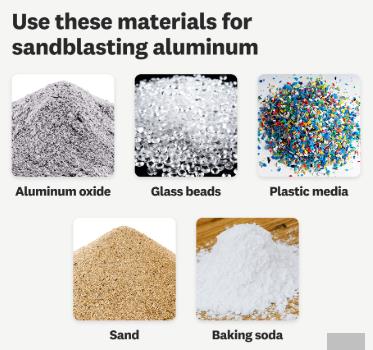

All the types of sandblasting media are made of five basic materials, which are: organic, metal, silicate, plastic, and stone[6]. Here are some common types of media used for large sandblasting projects:
Sandblasting is the term most commonly used type of media blasting, and it involves propelling sand particles onto metal surfaces at high speeds[2]. Silica sand is a traditional and inexpensive abrasive, suitable for use on hard surfaces like metal, concrete, and masonry[2]. Sandblasting effectively removes rust, paint, and other contaminants from metal surfaces[2]. However, the use of sand in sandblasting has been phased out in many parts of the world due to concerns about health and environmental hazards[2].
Metal abrasives such as aluminum oxide, steel shots, and grits are used for heavy-duty sandblasting jobs[6].
- Aluminum Oxide Grit: An extremely sharp, long-lasting blasting abrasive that can be recycled many times, it is available in a 99.5% pure white grade and commonly standard brown[5]. This is a sharp, long-lasting abrasive, often used in surface treatments and preparations[5]. Aluminum Oxide Grit is often used in surface treatments and preparations[5]. It is commonly used for etching glass and removing rust, paint, or scale from steel surfaces[1]. Aluminum oxide is also highly reusable, contributing to its cost-effectiveness[1].
- Steel Grit: It is softer than Aluminum Oxide Grit but still has a high hardness quality[5]. With fast stripping action, steel grit is suitable for cleaning, etching, and surface preparation[5]. It has very fast stripping action and shot-peening applications[5]. Steel shots, which are rounded, and steel grits, which are angular, are made of carbon steel and are mainly used for heavy-duty sandblasting, such as preparation for epoxy coating and removing tough coatings[6].
Crushed glass, made from recycled glass bottles, is an eco-friendly, general-purpose media[6]. It offers a good balance between aggressiveness and gentleness, making it suitable for a wide range of applications, including removing rust, paint, and graffiti[1]. It is effective for removing paints and, in some cases, fiberglass and wood[6]. Crushed Glass Grit is made of 100% recycled glass beads[5]. It is considered to be eco-friendly and health-friendly, as it eliminates the presence of airborne carcinogens[5]. It is non-toxic, non-hazardous, and safe to use around water[6], and its clarity improves operator visibility[6].
Glass beads are also among the most used sandblasting media, due to the fact that they are soft and produce a shiny appearance[6]. Glass beads are ideal for achieving a smooth and bright finish on various surfaces such as aluminum and stainless steel[1]. When a metallic surface requires preparation for spray liquid painting or powder coating, glass beads are the go-to media[6]. They are gentle, reusable, and environmentally friendly[6], commonly used for cleaning and peening metal surfaces, as well as removing surface imperfections[6]. Glass beads are also reusable and environmentally friendly[1]. Glass beads are also among the most used sandblasting media, due to the fact that they are soft and produce a shiny appearance[6]. Some advantages of glass beads are that are completely lead-free and can be recycled many times[6].
Organic media such as walnut shells and corn cobs are suitable for delicate applications like polishing or cleaning, leaving surfaces largely unscathed. They are non-toxic, biodegradable, and reusable.
- Walnut Shells: These are used for cleaning, polishing, or preparing wood and stripping automotive coatings.
- Corn Cobs: They are ideal for delicate surfaces like wood and glass or removing mild coatings like grease, grime, or debris.
- Silicon Carbide: If you are looking for the current hardest media for sandblasting, look no further: it is silicon carbide[6]. Silicon carbide is the hardest sandblasting media available, making it suitable for aggressive and rapid material removal[1]. This material is a blocky grain texture that comes in several sizes, ranging from coarse grit to fine powder[6]. The coarse grit is used, for example, to remove mill scales, the fine powder is directed to polishing hard rock like granite[6]. Among the advantages of silicon carbide is that does not produce static electricity and, due to its hardness, sandblasting is performed faster[6]. This media is ideal for applications such as stone engraving, cleaning engine parts, and removing heavy rust and paint[1]. Due to its high cost, silicon carbide is generally reserved for specialized applications[1].
- Coal Slag/Aluminum Silicate: It is a dispensable abrasive, a by-product of coal-fired electric power generation plants[5]. It is often used in open blasting operations in the oil- and shipyard industry and other metal surface treatments[5]. Compared to Copper Slag, it produces less dust[5].
- Staurolite: It is a Silicate of Silica and Iron and is generally used to remove thin coatings, rust, and mill scale[5]. Generally used to remove thin coatings, rust, and mill scale, ideal for applications requiring a minimal surface profile[5]. Its sub-angular shape is ideal for applications requiring a minimal surface profile[5]. Ideally used in stripping off surfaces in storage tank & tower construction, structural & plate steel blasting, and steel fabrication[5].
- GMA Garnet: Garnet is a widely used, natural, mined, mineral-based abrasive that offers high cleaning efficiency and produces very little dust, making it ideal for use in environmentally sensitive applications or in confined spaces.
- JetMag®: A synthetic sand made of olivine and pyroxene, used for blast cleaning, which offers excellent sanding quality and is non-toxic.
- Soda: Soda abrasive is made from baking soda or bicarbonate of soda[5]. It offers non-destructive cleaning and is very popular among operators[5]. It removes rust from metals without causing depression or damaging the metal beneath the rough surface[5].
Sandblasting is an extremely useful procedure in a broad array of applications and industries[3]. Sandblasting is widely used to clean industrial facilities and equipment, and to maintain and recondition metallic surfaces[4]. Different media are suited to specific applications in large projects:
- Surface Preparation: Aluminum oxide and steel grit are commonly used to prepare surfaces before painting or coating[6]. Media blasting is a process using compressed air to blast the surface of the project with various types of gritty substances (called media)[9]. This process is done to remove contaminants or create etching, and to prepare the surface for powder coating[9].
- Coating Removal: Crushed glass, silicon carbide, and steel grit are effective in removing old coatings, rust, and scale from large structures[6].
- Cleaning: Glass beads and organic media are used for cleaning surfaces without causing significant abrasion[6]. Sandblasting is used to clean and maintain commercial infrastructure, including parking strips, driveways, and patios, to remove spots, blemishes, and corrosion, and to treat damage caused by fire[4].
- Profiling: Staurolite and coal slag are used where a minimal surface profile is required, such as in storage tank and structural steel blasting[5].
- Maintaining Equipment and Machines: Sandblasting can restore the appearance and efficiency of a broad range of industrial equipment, including, tanks, worksite equipment, and vehicles[4]. It is an efficient method for removing rust and corrosion without damaging underlying surfaces[4].
- Polishing: While cleaning is the main function of sandblasting, the process also leaves surfaces shiny and polished[8]. In some occasions, you will find small mechanical parts made out of metal and plastic featuring rough burrs or other irregularities which make it impossible to assemble[8]. Not only does sandblasting polishes surfaces but it also removes burrs, tags, and excess material to guarantee productive assembly[8]. Moreover, it smooths edges to attain the intended shape of the surface[8].
- Creates Impressive Art: Talented artisans use the technique to carve remarkable patterns on different surfaces such as wood, metal, glass, and other materials[8]. Aside from this, other artists use the method to improve the aesthetic value of lackluster commercial properties[8].
When sandblasting, it's important to prioritize safety and consider environmental impact[1]:
- Personal Protective Equipment (PPE): Operators should wear appropriate PPE, including respirators, gloves, and eye protection, to prevent exposure to dust and debris[1].
- Dust Control: Using media that produce less dust, such as crushed glass or garnet, can improve visibility and reduce health risks[1].
- Containment: Whenever possible, sandblasting should be performed in contained areas to prevent the release of dust and debris into the environment[1].
- Disposal: Proper disposal methods should be followed to minimize environmental contamination[1].
[Industrial worker in protective uniform cleaning surface of big steel construction before painting on high altitude]
Selecting the right sandblasting media for large projects involves considering the material properties, desired finish, safety, environmental factors, and cost[1]. While traditional silica sand is effective, alternative media like crushed glass, aluminum oxide, and steel grit offer improved safety and performance[1]. By understanding the characteristics and applications of different media types, project managers can optimize their sandblasting operations for efficiency, quality, and environmental responsibility[1].
Crushed glass is considered an eco-friendly option as it is made from recycled glass bottles, is non-toxic, and doesn't pose significant health hazards[6]. Organic media like walnut shells and corn cobs are also biodegradable and have minimal environmental impact.
Steel grit and aluminum oxide are effective for removing rust and scale from steel surfaces due to their hardness and sharp edges[6]. Crushed glass is also a good option for removing rust and paint[6].
Yes, aggressive media like silicon carbide and aluminum oxide can damage delicate surfaces if not used carefully[6]. Softer media like glass beads and organic materials are less likely to cause damage and are suitable for more fragile materials[6].
The size and shape of the sandblasting media significantly affect the surface finish[1]. Larger, more irregular particles create a rougher surface, while smaller, rounder particles produce a smoother finish[1]. The choice depends on the desired outcome of the sandblasting project[1].
Safety precautions include wearing appropriate personal protective equipment (PPE) such as respirators, gloves, and eye protection[1]. It is also important to control dust levels by using media that produce less dust and performing sandblasting in contained areas whenever possible[1]. Proper disposal of used media is also essential to prevent environmental contamination[1].
