Sandblasting, also known as abrasive blasting, is a method of surface preparation where abrasive material is propelled against a surface to clean, smooth, or roughen it. When working with steel, selecting the right media is crucial to achieve the desired outcome without damaging the material. This article explores various media options for sandblasting steel, their applications, and factors influencing media selection.
Sandblasting involves forcibly directing a stream of abrasive material against a surface. This process is used for various purposes, including removing rust, paint, and other coatings, as well as for surface preparation before coating or finishing. The effectiveness of sandblasting depends on the type of media used, the pressure at which it is propelled, and the technique employed by the operator.
Metal abrasives are typically angular and suited for heavy-duty sandblasting tasks.

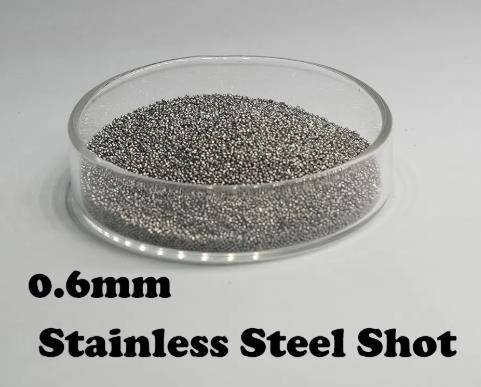

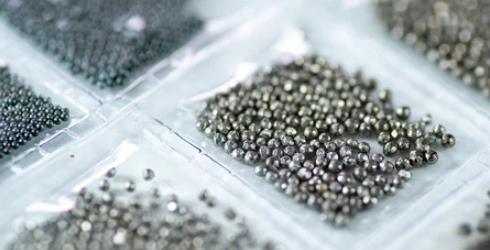

- Steel Shot: Steel shot is a spherical abrasive made from carbon steel that delivers a smooth surface finish. It is commonly used for cleaning, polishing, and preparing surfaces for coating and has a high recycling ability and produces low dust.
- Steel Grit: Steel grit is an angular abrasive also made from carbon steel, but unlike steel shot, it produces a rougher surface profile. It is effective for removing heavy rust, scale, and coatings, and for creating an anchor pattern for coatings to adhere to.
- Cut Wire Shot: Cut wire shot is produced by cutting steel wire into short lengths. It is known for its durability and consistent performance and is used in applications where a long-lasting abrasive is required.
Non-metal abrasives are suitable for lighter sandblasting tasks and applications where metal contamination is a concern.
- Aluminum Oxide: Aluminum oxide is a hard, durable abrasive that can be used for a wide range of applications, including removing rust, scale, and coatings from steel. It is available in various grit sizes, allowing for different surface finishes.
- Silicon Carbide: Silicon carbide is an extremely hard abrasive used for aggressive cutting and etching of steel surfaces. It is suitable for removing tough coatings and creating a deep anchor pattern.

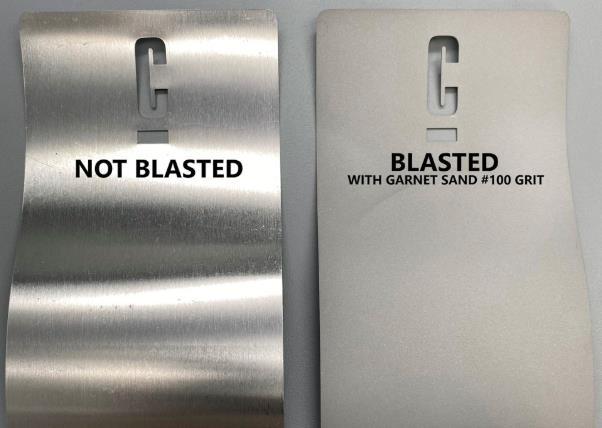

- Garnet: Garnet is a naturally occurring mineral abrasive that is relatively soft compared to aluminum oxide and silicon carbide. It is effective for removing rust and coatings from steel without causing excessive damage to the substrate.
- Glass Beads: Glass beads are spherical abrasives that produce a smooth, polished surface finish. They are commonly used for cosmetic finishing and removing light rust and coatings from steel.
- Walnut Shells: Walnut shells are a soft, organic abrasive that is gentle on steel surfaces. They are suitable for removing light coatings and contaminants without causing damage to the substrate.
- Corn Cob: Corn cob is another organic abrasive option that is even softer than walnut shells. It is often used for removing paint and coatings from delicate steel surfaces.
- Plastic Media: Plastic media is used to remove coatings from steel without damaging the substrate. It is suitable for delicate applications where preserving the original surface finish is essential.
- Baking Soda: Baking soda is a very soft abrasive used for removing light coatings, grease, and contaminants from steel. It is environmentally friendly and does not create a significant amount of dust.
Selecting the right sandblasting media for steel involves considering several factors:
- Type of Coating or Contaminant: The type of coating or contaminant being removed will influence the choice of media. Heavy rust and scale may require aggressive abrasives like steel grit or aluminum oxide, while light coatings may be removed with gentler options like glass beads or walnut shells.
- Desired Surface Finish: The desired surface finish will also play a role in media selection. Steel shot and glass beads produce smooth finishes, while steel grit and aluminum oxide create rougher anchor patterns.
- Steel Type: The type of steel being sandblasted will affect the choice of media. Softer steels may require gentler abrasives to prevent damage, while harder steels can withstand more aggressive media.
- Environmental Considerations: Environmental regulations may restrict the use of certain abrasives. Options like walnut shells, corn cob, and baking soda are environmentally friendly alternatives to traditional abrasives.
- Cost: The cost of the media will also be a factor in the selection process. Steel abrasives are generally more expensive than non-metal abrasives, but they may offer better performance and durability.
- Recyclability: Some abrasives can be recycled and reused multiple times, reducing waste and saving money. Steel shot and steel grit are highly recyclable, while non-metal abrasives are typically single-use.
- Dust Generation: Some abrasives generate more dust than others, which can pose health and safety risks. Steel shot and cut wire shot produce relatively low dust, while non-metal abrasives like aluminum oxide and silicon carbide can generate significant amounts of dust.
- Equipment Compatibility: The sandblasting equipment being used may dictate the type of media that can be used. Some equipment is designed for use with specific abrasives, while others can handle a wider range of media.
Before sandblasting steel, it is essential to prepare the surface properly. This may involve:
- Cleaning: Removing any loose debris, grease, or oil from the surface.
- Masking: Protecting areas that do not need to be sandblasted.
- Safety Precautions: Ensuring proper ventilation, wearing appropriate personal protective equipment (PPE), and following safety guidelines.
The technique used for sandblasting steel can also affect the outcome. Key considerations include:
- Distance: Maintaining the correct distance between the nozzle and the surface.
- Angle: Holding the nozzle at the appropriate angle to the surface.
- Movement: Using a consistent, overlapping pattern to ensure even coverage.
- Pressure: Adjusting the air pressure to match the media type and the task at hand.
After sandblasting steel, it is important to protect the surface from corrosion. This may involve:
- Coating: Applying a protective coating, such as paint, powder coating, or galvanizing.
- Oiling: Applying a thin layer of oil to prevent rust.
- Sealing: Sealing the surface to prevent moisture penetration.
Sandblasting can be a hazardous process, so it is essential to take appropriate safety precautions. Key considerations include:
- Personal Protective Equipment (PPE): Wearing a respirator, safety glasses, gloves, and protective clothing.
- Ventilation: Ensuring adequate ventilation to remove dust and fumes.
- Noise Control: Using hearing protection to prevent noise-induced hearing loss.
- Confined Spaces: Following safety procedures when sandblasting in confined spaces.
Sandblasting can have environmental impacts, so it is essential to minimize these impacts. Key considerations include:
- Dust Control: Using dust collection systems to prevent dust from escaping into the environment.
- Waste Disposal: Disposing of spent abrasive materials properly.
- Recycling: Recycling abrasive materials whenever possible.
- Alternative Abrasives: Using environmentally friendly abrasives like walnut shells or corn cob.
Sandblasting is used in a wide range of applications involving steel, including:
- Automotive Restoration: Removing rust and paint from car bodies and parts.
- Construction: Preparing steel structures for painting or coating.
- Manufacturing: Cleaning and deburring steel components.
- Marine Industry: Removing barnacles and corrosion from ship hulls.
- Aerospace: Preparing steel surfaces for specialized coatings.
- Infrastructure: Removing rust and paint from bridges and other steel structures.
- Art and Sculpture: Creating textured finishes on steel sculptures and artwork.
- Uneven Surface Finish: Adjust the nozzle distance and angle, use a consistent blasting pattern, and ensure the abrasive media is evenly distributed.
- Excessive Dust: Check the dust collection system, use a lower air pressure, and consider using a different abrasive media that produces less dust.
- Clogging: Ensure the abrasive media is dry and free of contaminants, check the air pressure, and clean the sandblasting equipment regularly.
- Inadequate Coating Removal: Increase the air pressure, use a more aggressive abrasive media, and ensure the nozzle is properly sized for the job.
- Surface Damage: Reduce the air pressure, use a gentler abrasive media, and maintain a proper nozzle distance and angle.
Selecting the right media for sandblasting steel is crucial for achieving the desired surface finish, removing coatings and contaminants effectively, and preventing damage to the substrate. Factors such as the type of coating, the desired surface profile, the type of steel, and environmental considerations should all be taken into account. By understanding the properties of different abrasive media and following best practices for sandblasting, you can achieve optimal results and ensure the longevity of your steel projects.
No, regular sand should not be used for sandblasting due to the risk of silicosis, a lung disease caused by inhaling silica dust. It's best to use alternative abrasives like steel shot, aluminum oxide, or garnet.
The grit size depends on the desired surface finish and the type of coating being removed. Coarser grits are suitable for removing heavy rust and coatings, while finer grits are ideal for creating smooth finishes.
Always wear a respirator, safety glasses, gloves, and protective clothing. Ensure adequate ventilation and follow safety guidelines to prevent injury.
Some sandblasting media, like steel shot and steel grit, can be recycled and reused multiple times. Non-metal abrasives like aluminum oxide and silicon carbide are typically single-use.
Spent sandblasting media should be disposed of in accordance with local regulations. Some materials may be classified as hazardous waste and require special handling.
