Boron carbide is an exceptionally hard ceramic material celebrated for its use in applications ranging from abrasive tools to ballistic armor and nuclear reactor control rods. Central to understanding its properties and applications is knowing its chemical composition, represented by the boron carbide chemical formula. This article provides a comprehensive exploration of the boron carbide chemical formula, examining its idealized form, structural complexities, compositional variations, and the scientific basis behind its representation. Enriched with images, videos, and detailed explanations, this guide serves as an authoritative resource on the chemistry of boron carbide.
Boron carbide is a boron-carbon ceramic material recognized for its extreme hardness, high melting point, chemical inertness, and neutron absorption capabilities. It finds applications in abrasives, cutting tools, wear-resistant coatings, ballistic armor, and control rods in nuclear reactors. The boron carbide chemical formula is essential for understanding its unique properties and performance across these diverse applications.
The most commonly cited boron carbide chemical formula is B₄C. This formula suggests a simple stoichiometric ratio of boron to carbon atoms. However, this representation is an idealization. It does not fully reflect the complexities of the actual crystal structure and the range of possible compositions that boron carbide can adopt.

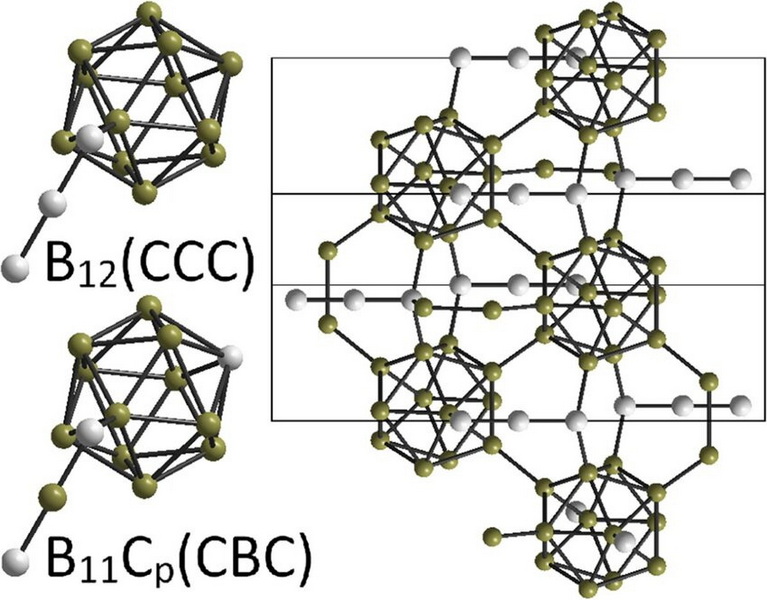

Boron carbide has a complex crystal structure, a characteristic often found in borides centered on icosahedra. The structure consists of:
- B₁₂ icosahedral clusters: Twelve boron atoms arranged in a near-spherical shape.
- Carbon-boron-carbon (C-B-C) chains: These chains connect the B₁₂ icosahedra.
These chains are located at the center of the unit cell. Both carbon atoms act as bridges, connecting adjacent three icosahedra. The arrangement results in a layered structure, where B₁₂ icosahedra and bridging carbons form a network plane parallel to the c-plane, stacked along the c-axis.
Boron carbide is not a single, fixed compound with a unique composition, but a family of compounds exhibiting a range of boron-to-carbon ratios. While B₄C is the most frequently cited formula, boron carbide can exist with varying amounts of carbon. These variations in composition influence the material's properties. The precise 4:1 stoichiometric ratio is contentious because, in nature, this formula still slightly lacks carbon.
Boron carbide often exhibits carbon deficiency. The structure can accommodate a range of carbon concentrations without undergoing significant structural changes. This carbon deficiency is accommodated by the combination of B₁₂C₃ and B₁₂C units.
-Boron-rich end: Formulas such as B₁₂(CBB) = B₁₄C
-Carbon-heavy end: Formulas like B₁₁CCBC = B₄C
Due to the B₁₂ structural unit, the idealized boron carbide chemical formula is sometimes written as B₁₂C₃.
Given the structural complexity, some researchers prefer using B₁₂C₃ as a more accurate representation of the boron carbide chemical formula. This representation emphasizes the importance of the B₁₂ icosahedral units. Other formulas, such as B₁₃C₂ or B₁₄C, are used to describe boron-rich compositions. The specific arrangement of boron and carbon atoms in the crystal lattice affects the symmetry of the crystal structure and the electrical properties of the material.
The specific boron carbide chemical formula and the resulting atomic arrangement significantly affect its properties:
- Hardness: Boron-rich compositions tend to be harder.
- Neutron Absorption: The presence of boron, particularly the isotope 10B, makes boron carbide an effective neutron absorber.
- Electrical Conductivity: Carbon content influences the electrical conductivity, with varying compositions exhibiting semiconducting behavior.
- Thermal Stability: All compositions maintain high thermal stability, suitable for high-temperature applications.
Several techniques are employed to determine the exact composition of a boron carbide sample:
- X-ray Diffraction (XRD): Determines the crystal structure and lattice parameters.
- Chemical Analysis: Measures the bulk composition of boron and carbon.
- X-ray Photoelectron Spectroscopy (XPS): Provides information on the surface composition and chemical states.
- Raman Spectroscopy: Identifies the presence of different structural units within the material.
The unique combination of properties governed by the boron carbide chemical formula makes it suitable for a range of applications:
- Abrasives: Its extreme hardness makes it ideal for grinding, lapping, and polishing hard materials.
- Ballistic Armor: The high hardness and lightweight make it suitable for body armor and vehicle armor.
- Nuclear Applications: Its neutron absorption capability makes it useful for control rods in nuclear reactors.
- High-Temperature Applications: Its high melting point and chemical inertness make it suitable for crucibles, nozzles, and other high-temperature components.
The boron carbide chemical formula is more complex than the simple B₄C often cited. Boron carbide exists as a family of compounds with a range of compositions, all based on B₁₂ icosahedra and carbon-containing chains. These compositional variations impact the material's properties and tailor its suitability for diverse applications. By understanding the structural complexities and the role of carbon deficiency, one can better appreciate the versatility and importance of boron carbide in modern technology.
The most common boron carbide chemical formula is B₄C, but it can also be represented as B₁₂C₃ to reflect its complex structure.
Its complexity arises from the presence of B₁₂ icosahedra and carbon-containing chains, which can accommodate different arrangements of boron and carbon atoms.
The key structural units are B₁₂ icosahedra and C-B-C chains.
Carbon content influences hardness, electrical conductivity, and other properties, with boron-rich compositions often being harder.
Boron carbide is best described as a family of compounds, exhibiting a range of boron-to-carbon ratios.
