Aluminum oxide, commonly known as alumina, is a fundamental material in modern industry and science. It is a crystalline compound composed primarily of aluminum and oxygen atoms, forming the chemical formula Al₂O₃. This article provides a comprehensive exploration of what aluminum oxide is made of, its natural occurrence, production methods, chemical and physical properties, applications, and much more.

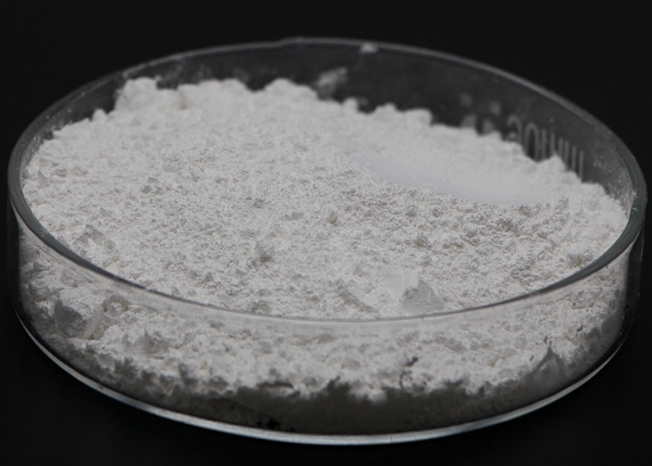

Aluminum oxide is a compound consisting of aluminum and oxygen atoms chemically bonded in a crystalline structure. It is one of the most abundant and important materials used in industries ranging from metallurgy and electronics to abrasives and ceramics. The compound is often referred to as alumina and is known for its hardness, thermal stability, and chemical resistance.
Aluminum oxide naturally occurs as the mineral corundum, which is the crystalline form of Al₂O₃. Corundum is the base mineral for precious gemstones such as rubies and sapphires, which owe their colors to trace impurities like chromium and iron. The natural form of aluminum oxide is highly prized for its hardness and durability.
The chemical formula of aluminum oxide is Al₂O₃, indicating that each molecule consists of two aluminum atoms and three oxygen atoms. This stoichiometric ratio balances the charges, as aluminum typically forms a +3 ion and oxygen forms a -2 ion, resulting in a neutral compound.
The crystal structure of aluminum oxide, especially in its most stable form called α-Al₂O₃ (alpha-alumina or corundum), features a hexagonal close-packed array of oxygen atoms with aluminum atoms occupying two-thirds of the octahedral interstices. This arrangement gives alumina its exceptional hardness and stability.
Aluminum oxide is amphoteric, meaning it can react both as an acid and as a base. This property makes it chemically versatile, allowing it to dissolve in both acidic and basic solutions under certain conditions.

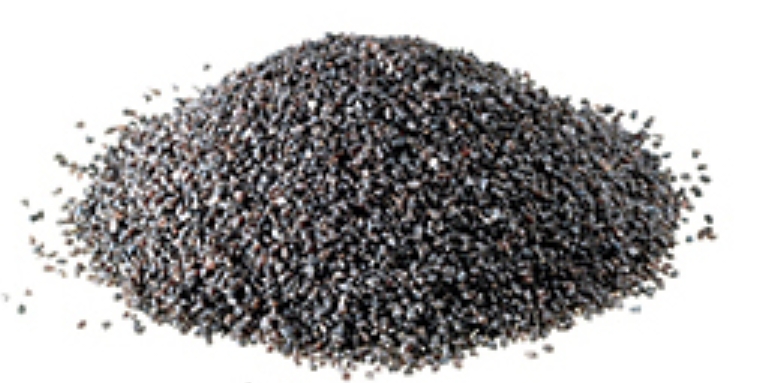

Aluminum oxide is primarily extracted from bauxite, a naturally occurring ore that contains 40-50% alumina along with impurities such as iron oxides, silica, and clay minerals. Bauxite is mined extensively in tropical and subtropical regions.
The Bayer process is the principal industrial method for producing aluminum oxide from bauxite. It involves several key steps:
1. Crushing and Grinding: Bauxite ore is crushed and ground into a fine powder.
2. Digestion: The powder is mixed with hot concentrated sodium hydroxide (NaOH), which dissolves the aluminum-containing compounds, converting them into soluble sodium aluminate.
3. Clarification: Insoluble impurities (red mud) are filtered out.
4. Precipitation: The sodium aluminate solution is cooled and seeded with aluminum hydroxide crystals, causing aluminum hydroxide to precipitate.
5. Calcination: The aluminum hydroxide is heated to about 1050°C, driving off water and producing pure aluminum oxide powder.
Chemical reactions involved:
- Dissolution:
Al2O3+2OH−+3H2O→2[Al(OH)4]−
- Precipitation:
Al2O3+2OH−+3H2O→2[Al(OH)4]−
- Calcination:
2Al(OH)3→Al2O3+3H2O
For bauxite with high silica content or when specific alumina morphologies are desired, the sintering process is used. It involves mixing bauxite with additives like limestone and soda ash, heating at high temperatures (1200–1500°C), followed by leaching and precipitation steps similar to the Bayer process.
- Appearance: White powder or crystalline solid
- Melting Point: Approximately 2072°C (3762°F)
- Boiling Point: Around 2977°C (5400°F)
- Hardness: Mohs scale rating of 9, second only to diamond
- Density: About 3.95 g/cm3
- Thermal Conductivity: Relatively high for a ceramic (~30 W/m·K)
- Electrical Properties: Excellent electrical insulator with high dielectric strength
- Insoluble in water
- Amphoteric behavior: Reacts with acids and bases
- Stable and inert: Resistant to most chemicals except strong acids like hydrofluoric acid and reactive gases like chlorine trifluoride
- Forms a protective oxide layer on aluminum metal: This thin alumina layer prevents further corrosion of aluminum surfaces
Aluminum oxide is the key intermediate in aluminum metal production through the Hall-Héroult process, where alumina dissolved in molten cryolite is electrolyzed to produce aluminum metal.
Due to its hardness, aluminum oxide is widely used as an abrasive material in sandpapers, grinding wheels, and cutting tools.
Alumina's thermal stability and chemical inertness make it ideal for furnace linings, kiln furniture, and high-temperature insulation.
Aluminum oxide's excellent insulating properties and thermal conductivity make it valuable in electronic substrates, insulators, and semiconductor devices.
Its biocompatibility allows alumina to be used in dental implants, hip replacements, and bone graft substitutes.
Recent scientific advances using noncontact atomic force microscopy (ncAFM) have revealed detailed atomic arrangements on the surface of aluminum oxide crystals. This research helps understand catalytic behavior and surface chemistry critical for many industrial applications.
- Aluminum oxide is generally non-toxic and safe for use in consumer products.
- The Bayer process generates red mud, a hazardous waste requiring careful disposal.
- Alumina powders can pose inhalation risks if not handled with proper safety equipment.
Aluminum oxide is a vital compound made from aluminum and oxygen atoms arranged in a crystalline structure with the formula Al₂O₃. Extracted primarily from bauxite ore via the Bayer process, it exhibits remarkable hardness, chemical stability, and thermal resistance. These properties make it indispensable in numerous industries, including metallurgy, abrasives, ceramics, electronics, and medicine. Advances in understanding its atomic structure continue to open new applications, while its environmental impact is managed through evolving industrial practices. Overall, aluminum oxide remains a cornerstone material in modern technology and manufacturing.
Aluminum oxide is composed of two aluminum atoms and three oxygen atoms chemically bonded together, forming the compound Al₂O₃.
It is mainly produced from bauxite ore through the Bayer process, which involves digestion with sodium hydroxide, precipitation of aluminum hydroxide, and calcination to form alumina powder.
Its hardness comes from its crystalline structure, particularly the α-Al₂O₃ (corundum) form, where oxygen atoms form a hexagonal close-packed lattice with aluminum atoms occupying interstitial sites, creating strong ionic and covalent bonds.
It is used in aluminum metal production, abrasives, ceramics, electronics insulation, medical implants, and refractory materials.
Yes, aluminum oxide is generally non-toxic and safe when handled properly, though inhalation of fine powders should be avoided.
