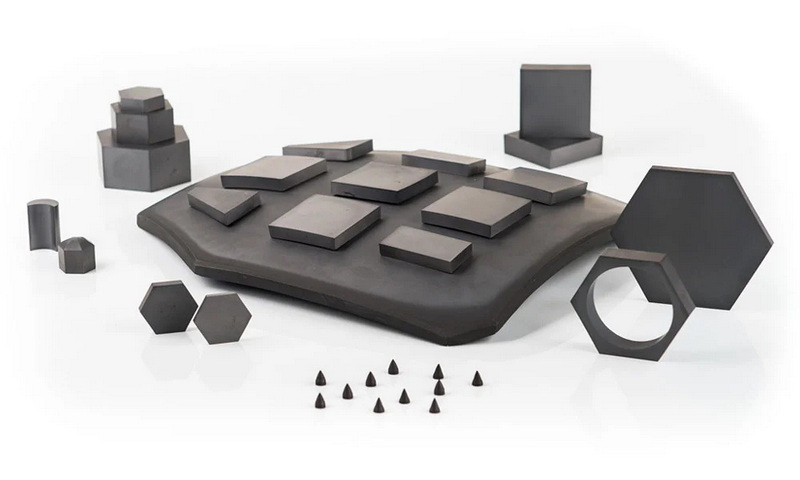

Boron carbide armor plates are among the most advanced and effective materials used in modern ballistic protection. Renowned for their exceptional hardness, lightweight nature, and excellent resistance to penetration, these plates have become a critical component in personal and vehicle armor systems worldwide. This article provides a comprehensive exploration of boron carbide armor plates, detailing their properties, manufacturing processes, applications, and advantages. Supported by image and scientific insights, it also includes a detailed FAQ section to answer common questions.
Boron carbide (B₄C) is a ceramic material known for its extraordinary hardness-ranking third after diamond and cubic boron nitride-and its low density. These characteristics make boron carbide armor plates an ideal choice for ballistic protection, offering superior defense against high-velocity projectiles while maintaining a lightweight profile.
Used extensively by military and law enforcement agencies, boron carbide plates are incorporated into body armor systems such as Small Arms Protective Inserts (SAPI) and Enhanced SAPI (ESAPI). They are also used in vehicle armor, aircraft protection, and portable ballistic shields.
| Property | Description |
|---|---|
| Chemical Formula | B₄C (approximate) |
| Density | ~2.52 g/cm3 (lightweight) |
| Hardness (Mohs) | 9.5 (extremely hard) |
| Melting Point | ~2450 °C |
| Flexural Strength | ~400 MPa |
| Fracture Toughness | ~3.5 MPa·m1/2 |
| Thermal Conductivity | High (30–35 W/m·K) |
| Chemical Stability | Highly inert, corrosion resistant |
These properties enable boron carbide plates to absorb and dissipate the energy of ballistic impacts effectively, while minimizing weight and maintaining durability.
Boron carbide armor plates are manufactured through advanced ceramic processing techniques:
- Powder Synthesis: Boron carbide powder is produced via carbothermal or magnesiothermal reduction.
- Powder Processing: The powder is milled and purified to achieve desired particle size and purity.
- Sintering: Hot pressing or spark plasma sintering consolidates the powder into dense, strong plates.
- Machining: Due to extreme hardness, diamond tools are used to shape and finish the plates.
- Composite Assembly: Plates are often combined with fiber backings like Kevlar or ultra-high molecular weight polyethylene (UHMWPE) to absorb residual energy.
Recent innovations include drilling holes in pre-sintered plates to reduce costs and improve manufacturing efficiency.

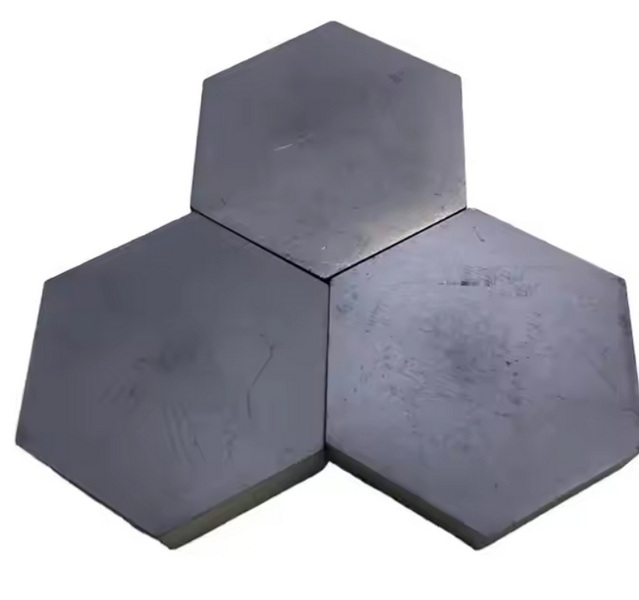

Boron carbide plates are widely used in body armor for soldiers and law enforcement officers. Their lightweight nature reduces fatigue and improves mobility, while their hardness provides protection against:
- High-velocity rifle rounds
- Armor-piercing ammunition
- Shrapnel and fragmentation
These plates are integral to SAPI and ESAPI vests, offering Level IV protection as defined by the National Institute of Justice (NIJ).
Boron carbide plates reinforce military vehicles, helicopters, and aircraft, providing critical protection without excessive weight. Applications include:
- Armored personnel carriers
- Gunship cockpit protection
- Airborne vehicle armor
Their high strength-to-weight ratio enhances vehicle agility and fuel efficiency.
Portable ballistic shields used by SWAT teams and military units often incorporate boron carbide plates. These shields must be both lightweight and highly protective to be effective in dynamic combat scenarios.
Beyond defense, boron carbide plates are used in:
- Industrial wear-resistant components
- High-temperature furnace linings
- Neutron radiation shielding in nuclear facilities
Their thermal and chemical stability make them suitable for harsh environments.
- Exceptional Hardness: Provides superior resistance to penetration.
- Lightweight: Significantly lighter than steel or aluminum armor.
- High Strength and Toughness: Can withstand multiple impacts.
- Thermal Stability: Performs well under extreme temperatures.
- Chemical Inertness: Resistant to corrosion and chemical attack.
- Energy Dissipation: Efficiently absorbs and disperses ballistic energy.
- Brittleness: Susceptible to cracking under certain impact conditions.
- Cost: High manufacturing and material costs compared to other ceramics.
- Machining Difficulty: Requires specialized diamond tooling and processes.
- Supply Constraints: Limited production capacity affects availability.
- Development of composite ceramics to improve toughness and reduce brittleness.
- Advances in additive manufacturing for complex armor geometries.
- Research into nano-engineered boron carbide powders for enhanced performance.
- Expansion into civilian protective gear and industrial applications.
Boron carbide armor plates represent a pinnacle of modern ballistic protection technology. Their combination of extreme hardness, lightweight design, and chemical and thermal stability makes them ideal for personal body armor, vehicle and aircraft protection, and specialized industrial applications. Despite challenges such as brittleness and high cost, ongoing research and manufacturing innovations continue to enhance their performance and accessibility. Understanding the properties and applications of boron carbide armor plates is essential for selecting effective protective solutions in defense and beyond.
They are used in personal body armor, vehicle and aircraft armor, ballistic shields, and industrial wear-resistant components.
Because of its exceptional hardness, lightweight nature, and ability to absorb ballistic energy effectively.
Through powder synthesis, milling, sintering, and precision machining with diamond tools.
They are brittle, costly to produce, and require specialized machining.
Yes, they are increasingly used in personal protective equipment and industrial wear parts.
