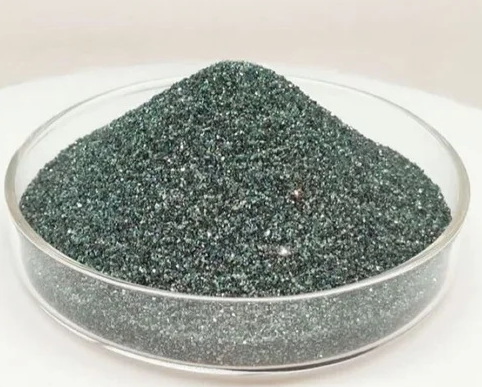

Silicon carbide (SiC) is a remarkable material known for its extraordinary strength, hardness, and thermal stability. It is widely used in industries ranging from abrasives and cutting tools to semiconductors and ballistic armor. This comprehensive article explores the question: Is silicon carbide strong? by examining its mechanical properties, crystal structure, manufacturing methods, and applications. Supported by detailed images, videos, and scientific data, the article also includes a FAQ section addressing common questions about silicon carbide's strength.
Silicon carbide is a compound of silicon and carbon atoms arranged in a crystalline lattice. It is known for its extreme hardness (Mohs hardness ~9.5), high melting point (~2700 °C), and chemical inertness. These properties make it invaluable in applications requiring wear resistance, high strength, and thermal stability.
Silicon carbide exists in numerous polytypes, with the most common being:
- 3C-SiC (β-SiC): Cubic zinc blende structure
- 4H-SiC and 6H-SiC (α-SiC): Hexagonal structures
The tetrahedral bonding of silicon and carbon atoms in a rigid three-dimensional network imparts exceptional mechanical strength.
Silicon carbide's hardness is approximately 32 GPa (Vickers hardness), placing it among the hardest known materials, surpassed only by diamond and boron carbide. This hardness enables it to resist abrasion and wear in demanding environments.
The tensile strength of silicon carbide varies depending on its form and manufacturing process but typically ranges from 210 to 370 MPa. Recent studies on nanostructured amorphous SiC films have reported tensile strengths exceeding 10 GPa, approaching the theoretical strength limits of the material.
Flexural strength, or bending resistance, typically ranges from 410 to 600 MPa, indicating silicon carbide's ability to withstand mechanical loads without fracturing.
Fracture toughness, a measure of resistance to crack propagation, ranges from 3.4 to 4.6 MPa·m^1/2, which is relatively high for ceramics, contributing to its durability.
The elastic modulus of silicon carbide is approximately 370 to 490 GPa, reflecting its stiffness and ability to retain shape under stress.
Silicon carbide is manufactured primarily by the Acheson process, involving the carbothermal reduction of silica and carbon at high temperatures. Advanced techniques like chemical vapor deposition (CVD) and spark plasma sintering (SPS) produce high-purity, dense SiC with controlled microstructures, enhancing strength.
Silicon carbide's exceptional strength and thermal stability have paved the way for its use in cutting-edge technologies beyond traditional applications. In the field of quantum computing, silicon carbide is being explored for its unique spin properties and defect centers, which can serve as quantum bits (qubits) for quantum information processing. These defect centers exhibit long coherence times and can be manipulated optically, making SiC a promising platform for scalable quantum devices.
In biomedical engineering, silicon carbide's biocompatibility and chemical inertness have led to its investigation as a material for implantable medical devices and biosensors. Its hardness and wear resistance make it suitable for orthopedic implants, while its chemical stability ensures minimal adverse reactions in the body.
Energy storage technologies also benefit from silicon carbide nanostructures, which are being studied for use in batteries and supercapacitors. The high surface area and conductivity of SiC nanomaterials contribute to improved charge storage and cycling stability.
Environmental sensing is another emerging application, where silicon carbide's chemical stability and sensitivity enable the development of sensors capable of operating in harsh environments, detecting gases, radiation, and other environmental parameters with high accuracy.
Recent advances in manufacturing techniques have significantly improved the mechanical properties of silicon carbide. Nanostructuring approaches, such as the synthesis of amorphous SiC films and nanocrystalline powders, have demonstrated remarkable enhancements in tensile strength and fracture toughness. For instance, nanostructured amorphous SiC films have exhibited tensile strengths exceeding 10 GPa, approaching the theoretical strength limits of the material.
Additive manufacturing (3D printing) of silicon carbide components is an area of active research, aiming to produce complex geometries with tailored microstructures. Techniques like binder jetting and stereolithography combined with sintering processes are being optimized to fabricate dense, high-strength SiC parts with reduced waste and improved design flexibility.
Composite materials incorporating silicon carbide with metals or polymers are also being developed to overcome brittleness and enhance toughness. These composites leverage the hardness of SiC while benefiting from the ductility and impact resistance of the matrix materials.
- Abrasives: Grinding, cutting, and polishing hard materials.
- Semiconductors: High-voltage, high-temperature electronic devices.
- Ballistic Armor: Lightweight, hard armor plates.
- Nanomechanical Devices: Sensors and resonators benefiting from high strength.
| Material | Hardness (GPa) | Tensile Strength (MPa) | Applications |
|---|---|---|---|
| Silicon Carbide | ~32 | 210 – 370 | Abrasives, armor, electronics |
| Boron Carbide | ~30 | Higher (varies) | Armor, abrasives |
| Alumina | ~20 | 300 – 500 | Ceramics, cutting tools |
| Diamond | ~70 – 100 | High | Cutting, polishing |
| Steel | ~4 – 8 | 400 – 2000 | Structural, tools |
Silicon carbide's combination of hardness and strength makes it superior to many ceramics and metals in specific applications.
- Brittleness: Like most ceramics, SiC can fracture under impact or stress concentration.
- Machining Difficulty: Its hardness requires specialized tools.
- Cost: Production and processing can be expensive.
- Thermal Shock: Although resistant, rapid temperature changes can cause cracking.
Research focuses on:
- Nanostructuring to improve toughness and strength.
- Composite materials combining SiC with metals or polymers.
- Advanced manufacturing like additive manufacturing for complex shapes.
- Exploring amorphous SiC films with ultrahigh tensile strength.
Silicon carbide is an exceptionally strong material, combining high hardness, tensile strength, and thermal stability. Its unique crystal structure and covalent bonding confer mechanical properties that make it suitable for demanding applications in abrasives, electronics, armor, and more. While challenges such as brittleness and machining difficulty exist, ongoing research and advanced manufacturing techniques continue to enhance its performance and expand its applications.
Yes, silicon carbide is one of the strongest and hardest materials known, with hardness around 32 GPa and high tensile and flexural strength.
Its covalent bonding and tetrahedral crystal structure provide exceptional mechanical strength and hardness.
Diamond is harder and stronger, but silicon carbide offers superior thermal stability and chemical resistance.
Yes, it is thermally stable up to approximately 2700 °C.
It is brittle, difficult to machine, and can be costly to produce.
