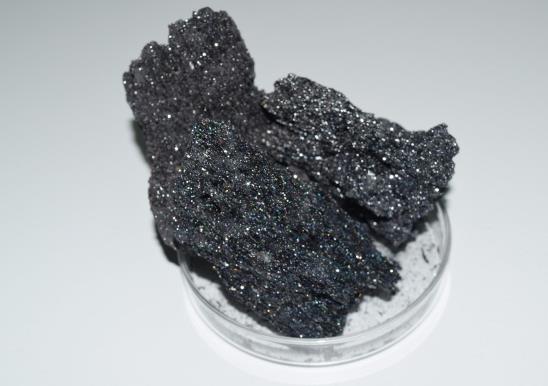

Silicon carbide, commonly known as Carborundum, is a compound consisting of silicon and carbon with the chemical formula SiC. This remarkable material has gained significant attention due to its unique properties and diverse applications in various industries. In this article, we will explore the nature of silicon carbide, its structure, properties, applications, and its significance in modern technology.
Silicon carbide is not an element but a compound formed by the combination of silicon (Si) and carbon (C). It was first synthesized by Edward Acheson in 1891 while he was attempting to create artificial diamonds. The process involved heating a mixture of clay and powdered coke in an iron bowl, leading to the formation of bright green crystals that were later identified as silicon carbide.
Silicon carbide exhibits a crystalline structure characterized by strong covalent bonds between silicon and carbon atoms. The arrangement forms tetrahedral units, where each silicon atom is bonded to four carbon atoms and vice versa. These tetrahedra are linked together at their corners, resulting in a robust three-dimensional network. This structure contributes to the exceptional hardness and thermal stability of silicon carbide.
Silicon carbide exists in several polytypes, which differ based on the arrangement of atoms within the crystal lattice. The most common polytypes include:
- 3C-SiC (Cubic): Also known as beta-silicon carbide, it has a zinc blende structure.
- 4H-SiC: Exhibits a hexagonal structure and is widely used in semiconductor applications.
- 6H-SiC: Another hexagonal form with similar applications as 4H-SiC.
Each polytype has distinct properties that make it suitable for specific applications, particularly in electronics and optics.
Silicon carbide boasts an array of remarkable properties that make it suitable for various applications:
- Hardness: With a Mohs hardness value of 9.5, silicon carbide is one of the hardest materials available, second only to diamond. This makes it ideal for abrasive applications.
- Thermal Conductivity: SiC has excellent thermal conductivity, allowing it to dissipate heat effectively. This property is crucial for high-performance electronics, enabling devices to operate efficiently without overheating.
- Chemical Resistance: It is resistant to most acids and alkalis, making it durable under harsh conditions. This resistance extends its lifespan in various industrial applications.
- Wide Bandgap Semiconductor: SiC has a wide bandgap (~3.0 eV), enabling it to operate at high voltages and temperatures. This characteristic makes it ideal for power electronics such as MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) and diodes.
- High Breakdown Voltage: Silicon carbide devices can handle high electric fields without breaking down, which is essential for power applications.
The unique properties of silicon carbide have led to its adoption across various industries:
Due to its hardness, SiC is widely used in grinding wheels, sandpapers, and cutting tools. Its ability to maintain sharp edges makes it effective for machining metals and other materials.
Silicon carbide is increasingly used in power devices such as MOSFETs and diodes due to its ability to operate at high temperatures and voltages. This capability allows for smaller, more efficient devices that can handle greater power loads compared to traditional silicon-based semiconductors.
In electric vehicles (EVs), silicon carbide enhances power conversion efficiency in inverters and reduces charging times. Its high thermal conductivity helps manage heat dissipation in electric drivetrains, improving overall performance.
Its reliability under extreme conditions makes SiC suitable for aerospace components and defense applications. The material's strength-to-weight ratio allows for lighter components that do not compromise on performance.
SiC improves the efficiency of solar inverters and wind power systems by enabling faster switching speeds and higher voltage operation. This leads to more efficient energy conversion processes.
Beyond these primary uses, silicon carbide has found applications in several other fields:
Due to its excellent thermal conductivity, SiC is used in heat sinks and thermal management systems for electronic devices, ensuring they operate within safe temperature ranges.
Silicon carbide substrates are used in the production of blue LEDs. The wide bandgap property allows these LEDs to emit light efficiently while maintaining durability.
SiC's biocompatibility makes it suitable for certain medical applications such as implants and surgical instruments where strength and resistance to corrosion are critical.
The production methods for silicon carbide can significantly influence its quality and application suitability:
The original method developed by Edward Acheson involves heating silica sand with carbon materials (like petroleum coke) at high temperatures (around 2000°C). This process produces large quantities of SiC crystals suitable for abrasives.
The Lely method involves sublimating silicon at high temperatures onto a substrate where it crystallizes into high-purity SiC crystals. This method is often used for producing single crystals for semiconductor applications.
In CVD processes, gaseous precursors react at elevated temperatures on a substrate surface to form thin films of silicon carbide. This technique allows for precise control over the material's thickness and purity.
Despite its advantages, there are challenges associated with the use of silicon carbide:
- Cost: The manufacturing processes for high-purity SiC can be expensive compared to traditional materials like silicon.
- Substrate Availability: High-quality substrates are necessary for semiconductor applications; however, their availability can be limited.
- Defect Density: The presence of defects within SiC crystals can affect electronic performance; ongoing research aims to minimize these defects during production.
The future looks promising for silicon carbide as demand increases across various sectors:
- Electric Vehicles: As the automotive industry shifts towards electrification, SiC's role in power electronics will expand significantly.
- Renewable Energy Systems: With global efforts toward sustainability, SiC will play a crucial role in enhancing the efficiency of renewable energy technologies.
- Advancements in Manufacturing: Innovations in manufacturing techniques may reduce costs and improve material quality, making SiC more accessible for broader applications.
In conclusion, silicon carbide is a compound formed from silicon and carbon that possesses exceptional properties such as hardness, thermal conductivity, chemical resistance, and wide bandgap characteristics. Its unique characteristics have made it an indispensable material across various industries—particularly in semiconductors and abrasives. As technology continues to advance, the demand for silicon carbide is expected to grow further establishing its importance in modern applications.
Silicon carbide is primarily used as an abrasive material in grinding wheels and cutting tools due to its hardness. It also plays a crucial role in semiconductor devices for power electronics.
Silicon carbide ranks just below diamond in terms of hardness, making it highly effective for wear-resistant applications. It also outperforms many materials in thermal stability.
No, silicon carbide is insoluble in water but can dissolve in molten alkalis like NaOH and KOH.
Silicon carbide's energy efficiency helps reduce operational costs and supports sustainability goals by lowering energy consumption.
Yes, silicon carbide maintains its strength at high temperatures (up to approximately 1600°C) without significant degradation.
