Boron carbide, known for its exceptional hardness and diverse applications, is a material that has garnered significant attention in both industrial and scientific communities. Despite its remarkable properties, boron carbide is often criticized for its brittleness, which can limit its use in certain applications. In this article, we will delve into the nature of boron carbide's brittleness, explore its causes, and discuss recent advancements aimed at enhancing its toughness.
Boron carbide, with the chemical formula B4C, is a non-oxide engineering ceramic renowned for its extreme hardness, ranking as the third hardest substance after diamond and cubic boron nitride. Its hardness is typically measured on the Mohs scale, ranging from 9.5 to 9.75, and its Vickers hardness is approximately 38 GPa. This material is used in various applications, including tank armor, bulletproof vests, and neutron absorption in nuclear reactors.
- Mechanical Properties: Boron carbide exhibits a high compressive strength (1710 to 2200 MPa), but its tensile strength is relatively low (about 350 MPa), and its fracture toughness ranges from 2.5 to 3.5 MPa·m1/2. These properties highlight its brittleness.
- Thermal Properties: It has a high melting point (ranging from 1000 to 2500°C) and a moderate thermal conductivity (31 to 90 W/m-K).
- Crystal Structure: Boron carbide's structure consists of B12 icosahedra linked by C-B-C chains, contributing to its hardness and brittleness.
The brittleness of boron carbide is primarily due to its crystal structure and the nature of its chemical bonds. The B12 icosahedra are rigid and do not easily deform under stress, leading to crack formation and propagation. Additionally, the material's low fracture toughness means it cannot absorb much energy before failing catastrophically.
The complex crystal structure of boron carbide, featuring B12 icosahedra and C-B-C chains, contributes to its hardness but also limits its ability to deform plastically. The rigid nature of these structures makes it difficult for the material to absorb stress without cracking.
Traditional sintering methods can introduce defects and grain boundaries that act as stress concentrators, further increasing the material's brittleness. The sintering process often requires high temperatures, which can lead to grain coarsening and reduce the material's toughness.
Recent research has focused on improving the toughness of boron carbide by modifying its microstructure and introducing defects that can enhance plastic deformation.

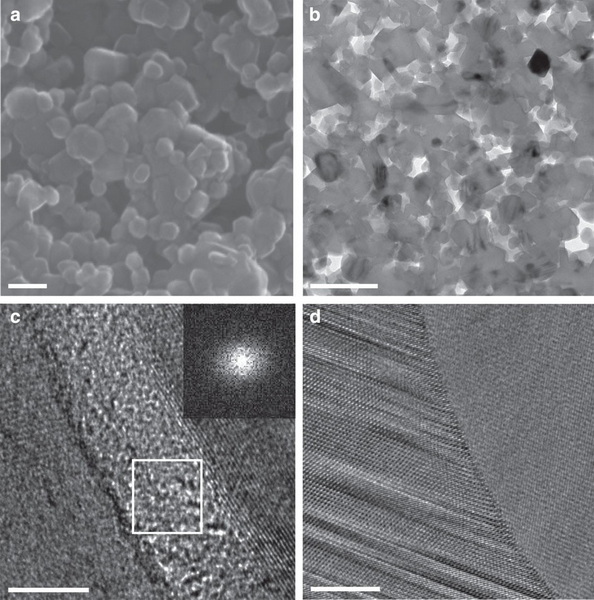

One approach involves creating nanocrystalline boron carbide with nanopores and amorphous carbon interfaces. These features, typically considered detrimental, have been shown to improve the material's toughness by facilitating grain boundary sliding during deformation. This allows the material to bend rather than break under mechanical stress.
Another strategy is to create composite materials by combining boron carbide with other metals or ceramics. For example, aluminum infiltration into boron carbide can enhance its mechanical properties by improving its fracture toughness and ductility. The addition of metal phases can also help absorb impact energy, reducing the likelihood of catastrophic failure.
Functionally graded materials, where the composition varies gradually across the material, offer another promising approach. By creating a gradient of boron carbide and another material, such as silicon carbide or alumina, it is possible to tailor the mechanical properties to specific applications. This can improve the overall toughness and reduce stress concentrations at interfaces.
Despite its brittleness, boron carbide remains a crucial material in various industries due to its hardness and other unique properties.
Boron carbide is used in body armor and tank armor due to its high hardness and ability to stop high-velocity projectiles. Its lightweight nature compared to traditional armor materials makes it particularly valuable for personal protective equipment.
Its neutron absorption capabilities make it valuable for nuclear reactors and radiation shielding. Boron carbide is used in control rods to regulate neutron flux and prevent nuclear reactions from becoming too intense.
Future research should focus on scaling up the production of nanocrystalline boron carbide and exploring its potential in more diverse applications, such as cutting tools and aerospace components. The high hardness and thermal stability of boron carbide make it an attractive material for components exposed to extreme conditions, such as rocket nozzles or heat shields.
Boron carbide's hardness also makes it suitable for use in industrial cutting tools, where it can be used to machine hard materials like steel and other ceramics. However, its brittleness requires careful tool design to prevent breakage under impact.
While significant progress has been made in improving boron carbide's toughness, several challenges remain. The cost of producing nanocrystalline boron carbide is high, and scaling up production while maintaining uniform quality is a significant technological hurdle. Additionally, integrating boron carbide into composite materials requires precise control over the interface properties to ensure optimal mechanical performance.
Boron carbide's brittleness is a significant challenge, but recent advancements in nanocrystalline structures and composite materials offer promising solutions. By understanding and addressing the causes of brittleness, researchers can develop more robust and versatile materials for a wide range of applications.
The primary cause of boron carbide's brittleness is its rigid crystal structure, which includes B12 icosahedra and C-B-C chains, making it difficult for the material to deform plastically under stress.
The toughness of boron carbide can be improved by creating nanocrystalline structures with nanopores and amorphous carbon interfaces, which facilitate grain boundary sliding and enhance plastic deformation.
Boron carbide is commonly used in ballistic armor, nuclear reactors for neutron absorption, and as an abrasive in cutting tools due to its extreme hardness.
Yes, boron carbide has a high melting point and can be used in high-temperature environments. However, its brittleness may limit its structural integrity in such applications.
Yes, boron carbide exhibits semiconductor properties with a band gap that depends on its composition and structural order.
