How To Make Silicon Carbide Heating Element?

Views: 222     Author: Lake     Publish Time: 2025-03-26      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Content Menu

1. Introduction to Silicon Carbide Heating Elements

2. Raw Materials and Composition

>> 2.1 Key Ingredients

3. Manufacturing Process

>> 3.1 Mixing and Forming

>> 3.2 Sintering

>> 3.3 Metallization

>> 3.4 Quality Testing

4. Key Applications

5. Challenges and Solutions

>> 5.1 Resistance Variability

>> 5.2 Oxidation Prevention

6. Future Trends

Conclusion

FAQ

>> 1. What raw materials are used to make SiC heating elements?

>> 2. What temperature is required for sintering SiC elements?

>> 3. How are SiC heating elements tested for quality?

>> 4. What industries use SiC heating elements?

>> 5. How do control systems manage SiC resistance variability?

Silicon Carbide (SiC) heating elements are critical components in high-temperature industrial applications, offering exceptional durability, thermal conductivity, and resistance to oxidation. This article provides a comprehensive guide to manufacturing SiC heating elements, including material selection, production processes, quality control, and applications.

How To Make Silicon Carbide Heating Element

1. Introduction to Silicon Carbide Heating Elements

Silicon carbide heating elements are non-metallic, high-temperature electric heating devices widely used in industrial furnaces, ceramics, metallurgy, and glass manufacturing. Their ability to operate at temperatures up to 1,600°C and resist thermal shock makes them superior to traditional metal heating elements.

2. Raw Materials and Composition

2.1 Key Ingredients

- Green Silicon Carbide (SiC): High-purity hexagonal SiC grit is the primary material. It is selected for its thermal stability and electrical conductivity.

- Binding Agents: Organic or inorganic binders (e.g., phenolic resins) are used to shape the SiC mixture into blanks.

3. Manufacturing Process

3.1 Mixing and Forming

The SiC grit is mixed with binders and pressed into blanks using extrusion or cold isostatic pressing (CIP). Common shapes include rods, tubes, and helical designs.

3.2 Sintering

Blanks are sintered at temperatures between 2,200°C and 2,400°C in inert atmospheres to achieve recrystallization and densification. This step enhances mechanical strength and electrical properties.

3.3 Metallization

Metal terminals (e.g., molybdenum or tungsten) are applied to the ends of the sintered elements to facilitate electrical connections. This step ensures efficient power transmission.

3.4 Quality Testing

- Electrical Resistance: Measured across operating temperatures to ensure stability.

- Bend Strength: Must exceed 300 kg/cm².

- Porosity Rate: Maintained below 30% to prevent oxidation.

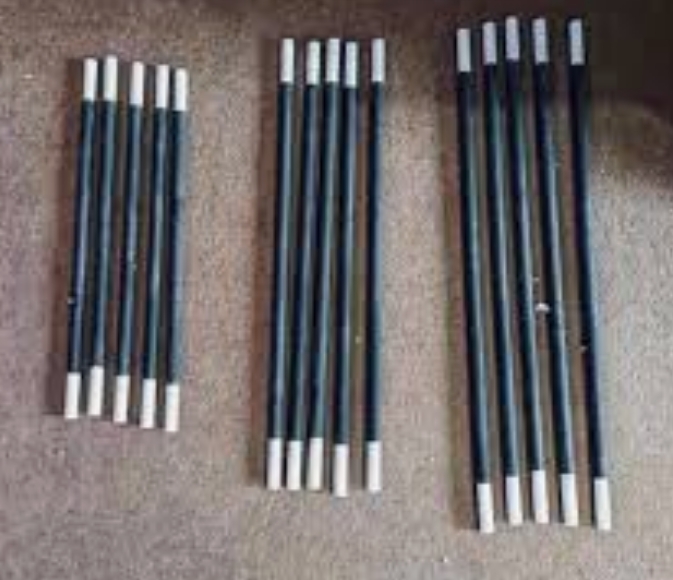

Make Silicon Carbide Heating Element

4. Key Applications

SiC heating elements are used in:

- Industrial Furnaces: For sintering ceramics and metals.

- Glass Manufacturing: Melting and shaping glass at high temperatures.

- Powder Metallurgy: Heat treatment of metal powders.

5. Challenges and Solutions

5.1 Resistance Variability

SiC elements exhibit resistance changes with temperature and aging. Solutions include using proportional current limit controllers to stabilize power output.

5.2 Oxidation Prevention

Coating elements with anti-oxidation layers (e.g., alumina) extends lifespan in oxygen-rich environments.

6. Future Trends

- Nanostructured SiC: Improved thermal efficiency.

- Automated Control Systems: Integration with IoT for real-time monitoring.

Conclusion

Silicon carbide heating elements are indispensable in high-temperature industries due to their durability and efficiency. Advances in sintering technology and control systems will further enhance their performance. Manufacturers like Xi'an Minghui and Eurotherm continue to innovate, ensuring these components meet evolving industrial demands.

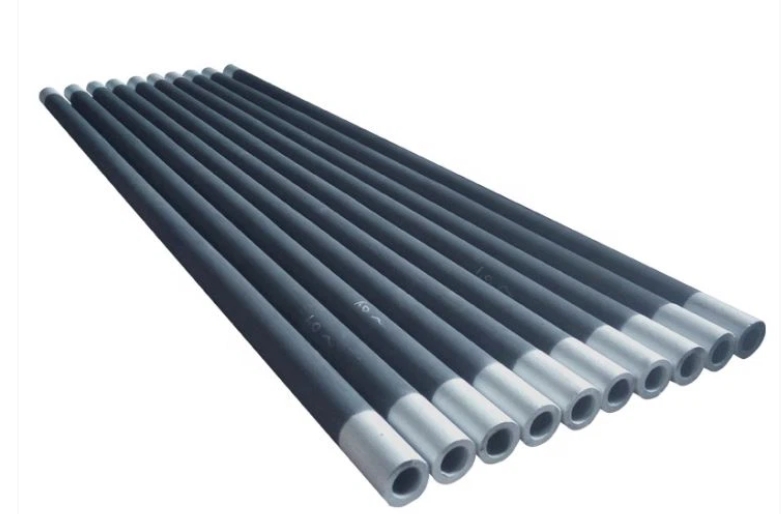

Make Silicon Carbide Heating Element

FAQ

1. What raw materials are used to make SiC heating elements?

A1: High-purity green silicon carbide grit and binding agents are the primary materials.

2. What temperature is required for sintering SiC elements?

A2: Sintering occurs at 2,200°C–2,400°C in inert atmospheres.

3. How are SiC heating elements tested for quality?

A3: Tests include electrical resistance measurement, bend strength (>300 kg/cm²), and porosity checks (<30%).

4. What industries use SiC heating elements?

A4: Key industries include ceramics, glass manufacturing, metallurgy, and powder processing.

5. How do control systems manage SiC resistance variability?

A5: Proportional current limit controllers and true-power control systems stabilize output despite resistance changes.
