Silicon carbide (SiC) is a highly valued material due to its exceptional hardness, thermal conductivity, and chemical resistance. It is widely used as an abrasive, semiconductor, and in high-performance ceramics. This article will explore how to make silicon carbide compounds from grit, focusing on the production process, applications, and future trends.
Silicon carbide is a synthetic compound produced by combining silica sand and carbon at high temperatures. It is known for its hardness, ranking just below diamond, and its versatility in various industrial applications.
The most common method for producing silicon carbide involves heating a mixture of silica sand and carbon in an electric resistance furnace at temperatures between 1,600°C and 2,500°C. This process yields a range of purity levels, with colorless crystals being the purest.
This method involves subliming SiC powder into high-temperature species and redepositing it into single crystals. It produces high-quality crystals, often of the 6H-SiC phase.
Cubic SiC is grown using CVD of silane, hydrogen, and nitrogen. This process allows for precise control over crystal structure and purity.
These polymers are pyrolyzed at low temperatures to form complex SiC shapes. Materials like polycarbosilanes are used as precursors.
To create silicon carbide compounds from grit, you need to follow a process that involves sintering or hot pressing the grit into a cohesive form.
1. Material Preparation: Silicon carbide grit is mixed with a binder (e.g., phenolic resin) to enhance cohesion.
2. Sintering: The mixture is heated in a furnace under high pressure and temperature (e.g., 1,800°C) to form a solid ceramic body.
3. Post-Processing: The sintered body can be machined to desired shapes.
1. Material Preparation: Similar to sintering, but with the addition of pressure during heating.
2. Hot Pressing: The mixture is pressed in a die under high pressure and temperature.
3. Post-Processing: The resulting ceramic is denser and more uniform.

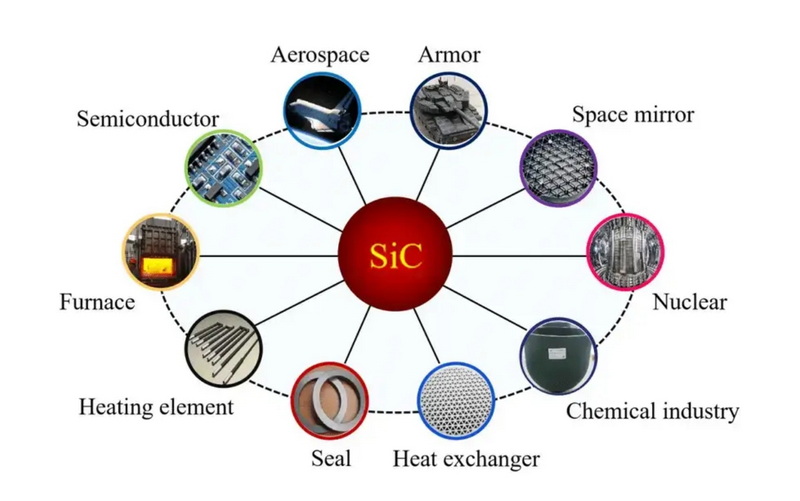

Silicon carbide finds applications in numerous industries due to its unique properties:
Used in grinding wheels and sandpaper due to its hardness.
Employed in high-power electronic devices and solar panels.
Used in wear-resistant parts, such as seals and bearings.
Utilized in rocket nozzles and heat shields due to its thermal stability.
Used in implants and surgical instruments due to its biocompatibility.
1. Advanced Sintering Techniques: Improvements in sintering processes to enhance material properties.
2. 3D Printing: Using preceramic polymers to create complex SiC structures.
3. Sustainability: Focus on reducing energy consumption and waste during production.
Creating silicon carbide compounds from grit involves advanced processes like sintering and hot pressing. These techniques allow for the production of high-quality ceramics with exceptional hardness and thermal conductivity. As technology evolves, innovations in production methods will further enhance the utility of silicon carbide across industries.
The primary method involves heating silica sand and carbon in an electric resistance furnace, known as the Acheson process.
Silicon carbide grit is used in grinding wheels and sandpaper due to its hardness, which is just below diamond.
Silicon carbide is used in high-power electronic devices and solar panels due to its semiconductor properties.
Yes, silicon carbide is used in implants and surgical instruments due to its biocompatibility and resistance to corrosion.
Future trends include advanced sintering techniques, 3D printing with preceramic polymers, and a focus on sustainability.
