How To Make Boron Carbide?

Views: 222     Author: Loretta     Publish Time: 2025-03-10      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Content Menu

1. Carbothermal Reduction: The Industrial Workhorse

>> Raw Material Specifications:

>> Step-by-Step Process:

>> Key Quality Metrics:

>> Energy Analysis:

>> Industrial Case Study:

2. Self-Propagating High-Temperature Synthesis (SHS) Optimization

>> Modified Stoichiometry:

>> Critical Parameters:

>> Post-Synthesis Treatment:

>> Particle Characteristics:

>> Economic Constraints:

>> Safety Protocols:

3. Mechanochemical Synthesis Breakthroughs

>> Advanced Milling Protocols:

>> Phase Evolution:

>> Post-Milling Heat Treatment:

>> Performance Advantages:

>> Equipment Wear Analysis:

4. Direct Elemental Synthesis for High-Purity Grades

>> Material Requirements:

>> Reaction Kinetics:

>> Atmosphere Control:

>> Applications:

>> Supply Chain Challenges:

5. Sol-Gel Method: Precision at Nanoscale

>> Precursor Chemistry:

>> Gel Formation:

>> Thermal Processing:

>> Morphology Control:

>> Scaling Challenges:

6. Polymer-Derived Synthesis: The Green Alternative

>> Innovative Feedstock:

>> Pyrolysis Profile:

>> Emission Reduction:

>> Commercial Adoption:

7. Rapid Carbothermal Reduction (RCR) Innovations

>> Process Intensification:

>> Mechanistic Insights:

>> Product Enhancements:

>> Microwave Economics:

Global Production Landscape

>> Market Leaders:

>> Emerging Players:

Conclusion

FAQ

>> Q1: What is the typical production cost for industrial-grade B₄C?

>> Q2: Which synthesis method achieves the highest purity?

>> Q3: How do particle sizes affect sintering performance?

>> Q4: Can boron carbide be synthesized at atmospheric pressure?

>> Q5: What are the emerging applications driving B₄C innovation?

Boron carbide (B₄C) ranks among the hardest synthetic materials (3,500 HV), surpassing even cubic boron nitride in specific applications. With a unique combination of low density (2.52 g/cm³), exceptional thermal stability (melting point 2,450°C), and neutron absorption capacity, this ceramic material has become indispensable in aerospace, nuclear, and defense industries. Below we analyze seven synthesis methods in technical detail, complete with process parameters and industrial viability assessments.

How To Make Boron Carbide_3

1. Carbothermal Reduction: The Industrial Workhorse

Raw Material Specifications:

- Boric oxide (B₂O₃) purity: ≥99.5%

- Carbon source: Petroleum coke (ash content <0.1%)

Step-by-Step Process:

1. Mixing: Combine B₂O₃ and carbon in a 2.55:1 molar ratio using double-cone blenders (30 min mixing time).

2. Furnace Setup: Load mixture into graphite-lined arc furnaces (25–50 kW capacity).

3. Reaction: Maintain temperature at 1,750±50°C under argon flow (15 L/min) for 45 minutes.

4. Post-Processing:

- - Crush ingots with jaw crushers to ≤5 mm particles

- - Acid wash (10% HF) to remove residual B₂O₃

- - Ball mill to final particle size (D50: 3–10 µm)

Key Quality Metrics:

- Free carbon content: <0.8%

- Oxygen impurities: <1.2%

- Production rate: 500–800 kg/day per furnace

Energy Analysis:

- Electrical consumption: 8–12 kWh/kg

- Thermal efficiency: 62–68%

Industrial Case Study:

Ceradyne Inc. (a 3M subsidiary) operates 12 arc furnaces in Arkansas, producing 6,000 tons/year for bulletproof plates. Their proprietary B₄C grades achieve 97.5% theoretical density after hot pressing.

2. Self-Propagating High-Temperature Synthesis (SHS) Optimization

Modified Stoichiometry:

6Mg+2B2O3+C→B4C+6MgO

Critical Parameters:

- Ignition temperature: 1,150°C (using tungsten coil)

- Combustion wave velocity: 5–8 mm/s

- Maximum reaction temperature: 2,200°C

Post-Synthesis Treatment:

1. HCl Leaching: 4M solution at 80°C for 2 hours

2. Centrifugation: 3,000 rpm for 15 min

3. Drying: Spray dryer (inlet temp 200°C)

Particle Characteristics:

- Size distribution: 0.1–4.0 µm

- Specific surface area: 15–25 m²/g

Economic Constraints:

- Magnesium cost contributes 45% of total production expenses

- Acid consumption: 8–10 L per kg B₄C

Safety Protocols:

- Magnesium powder handling requires Class D fire extinguishers

- Hydrogen gas monitoring during acid leaching

3. Mechanochemical Synthesis Breakthroughs

Advanced Milling Protocols:

- Planetary ball mill: WC jars, 400 rpm

- Ball-to-powder ratio: 20:1

- Process control agent: 2 wt% stearic acid

Phase Evolution:

1. 0–8 h: Amorphous B-C-O phase formation

2. 8–15 h: Nucleation of B₄C crystallites

3. 15–20 h: Crystal growth to 50–100 nm

Post-Milling Heat Treatment:

- Temperature ramp: 10°C/min to 1,200°C

- Holding time: 2 hours under vacuum (10⁻⊃3; Pa)

Performance Advantages:

- Vickers hardness: 38 GPa (vs. 32 GPa conventional)

- Sintering temperature reduction: 200–250°C

Equipment Wear Analysis:

- Tungsten carbide milling media loses 0.12% mass per batch

- Annual maintenance cost: $45,000 per mill

How To Make Boron Carbide_1

4. Direct Elemental Synthesis for High-Purity Grades

Material Requirements:

- Boron powder: 99.9% purity, 1–3 µm particles

- Carbon precursor: Acetylene black (99.99% C)

Reaction Kinetics:

- Stage 1 (25–1,400°C): Solid-state diffusion

- Stage 2 (1,400–1,800°C): Liquid-phase reaction (B melts at 2,075°C)

Atmosphere Control:

- Vacuum level: 10⁻⊃2;–10⁻⊃3; Torr

- Argon backfill for thermal uniformity

Applications:

- Neutron detectors (⊃1;⁰B enrichment >65%)

- Semiconductor wafer handling components

Supply Chain Challenges:

- 78% of elemental boron sourced from Turkey and the USA

- Price volatility: $350–$600/kg (2024 Q2 data)

5. Sol-Gel Method: Precision at Nanoscale

Precursor Chemistry:

- Boron source: B(OCH₂CH₃)₃

- Carbon source: Sucrose (C₁₂H₂₂O₁₁)

Gel Formation:

- Hydrolysis: H₂O/alkoxide molar ratio 4:1

- Condensation: pH adjusted to 3.5 with HNO₃

Thermal Processing:

- Carbonization: 600°C (N₂ atmosphere)

- Reduction: 1,500°C for 2 hours

Morphology Control:

- Pore size: 20–50 nm

- Grain boundaries: <5 nm width

Scaling Challenges:

- Gel drying time increases exponentially with thickness

- Industrial reactors limited to 5 kg/batch

6. Polymer-Derived Synthesis: The Green Alternative

Innovative Feedstock:

- Boron carrier: Boric acid-glycerol complex

- Carbon matrix: Crosslinked polycarbosilane

Pyrolysis Profile:

- Stage 1: 200–400°C (volatile removal)

- Stage 2: 400–800°C (ceramic conversion)

- Stage 3: 1,200–1,400°C (crystallization)

Emission Reduction:

- CO₂ output: 1.8 kg/kg B₄C vs. 4.2 kg/kg in carbothermal

- Energy savings: 35–40%

Commercial Adoption:

- Hitachi Chemical's pilot plant in Japan produces 200 kg/month

- Targets EV battery shielding applications

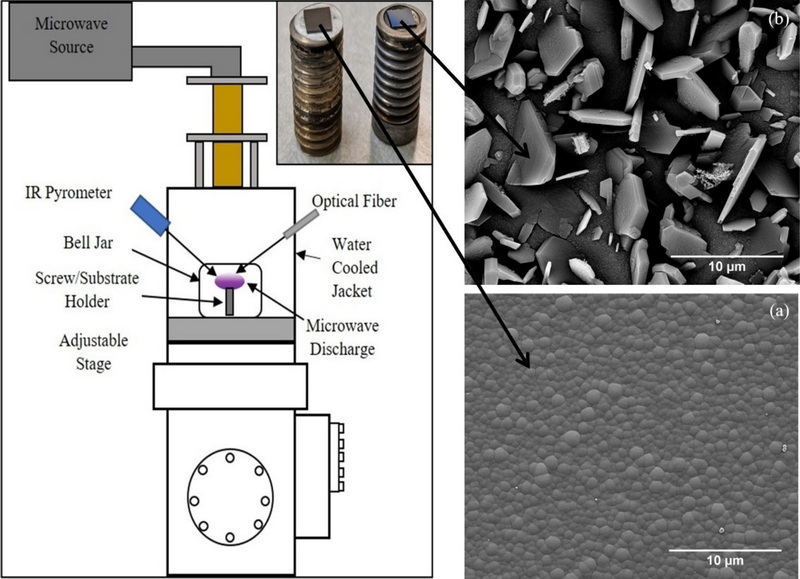

7. Rapid Carbothermal Reduction (RCR) Innovations

Process Intensification:

- Microwave-assisted heating (2.45 GHz)

- Reaction time reduction: 45 min → 12 min

Mechanistic Insights:

- B2O3(l)+3C(s)→2B(g)+3CO(g)

- 4B(g)+C(s)→B4C(s)

Product Enhancements:

- Stoichiometry control: B/C ratio 3.8–4.2

- Tap density improvement: 45% → 68%

Microwave Economics:

- 30% lower energy use vs. conventional heating

- Magnetron replacement cost: $18,000/year

Global Production Landscape

Market Leaders:

- Saint-Gobain (France): 32% market share

- 3M (USA): 28%

- H.C. Starck (Germany): 19%

Emerging Players:

- Mishra Dhatu Nigam (India): 500 tons/year capacity

- Baoding Zhongpuruituo (China): $22/kg production cost

Conclusion

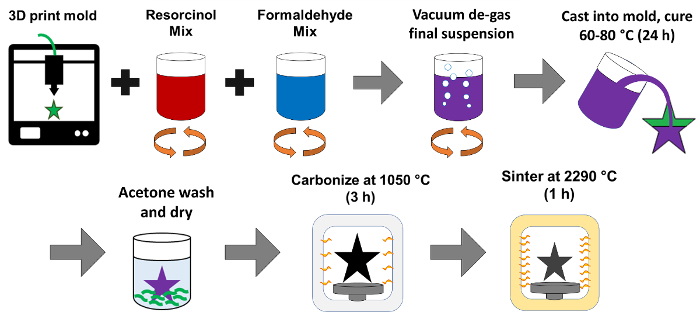

The boron carbide manufacturing landscape combines established thermal methods with emerging nanotechnology approaches. While carbothermal reduction maintains 78% market share due to scalability, advanced methods like RCR and polymer-derived synthesis are gaining traction in specialty sectors. Current R&D focuses on reducing energy intensity (<5 kWh/kg) and enabling near-net shape manufacturing through additive techniques.

How To Make Boron Carbide_2

FAQ

Q1: What is the typical production cost for industrial-grade B₄C?

A1: Conventional carbothermal production costs range from $50–120/kg, while SHS methods average $180–250/kg due to magnesium expenses.

Q2: Which synthesis method achieves the highest purity?

A2: Direct elemental synthesis produces 99.95% pure B₄C, suitable for nuclear applications requiring precise stoichiometry.

Q3: How do particle sizes affect sintering performance?

A3: Submicron powders (0.5–1 µm) enable 98% density sintering at 2,200°C, versus 2,300°C needed for 3–5 µm powders.

Q4: Can boron carbide be synthesized at atmospheric pressure?

A4: Only carbothermal and SHS methods operate at ambient pressure. Other techniques require vacuum (10⁻⊃2;–10⁻⊃3; Torr).

Q5: What are the emerging applications driving B₄C innovation?

A5: Additive manufacturing of complex armor geometries and neutron detectors for quantum computing research.
