Silicon carbide (SiC) is a highly rigid and hard material, widely used in various industrial applications, including semiconductor manufacturing, mechanical components, and abrasives. Grinding silicon carbide requires specialized techniques and tools due to its extreme hardness and brittleness. This article will delve into the methods and tools used for grinding SiC, highlighting the importance of precision and safety in the process.

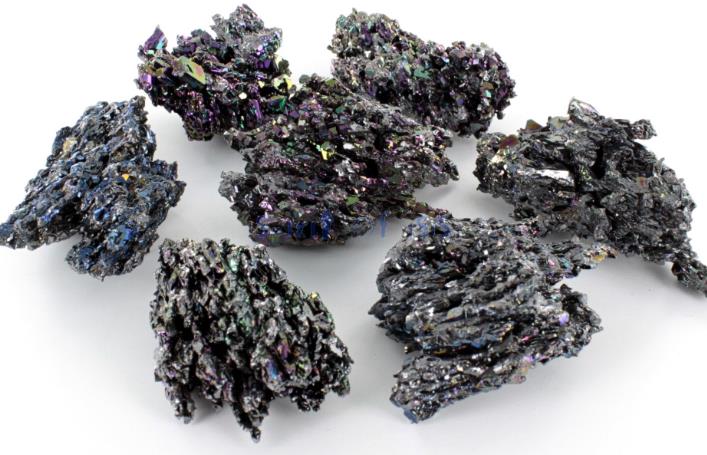

Silicon carbide, with a Mohs hardness rating of 9, is one of the hardest materials known. It is used in high-precision mechanical components and semiconductor fabrication due to its excellent chemical and mechanical stability, high-temperature resistance, and thermal shock resistance. However, these properties also make it challenging to grind and process.
Grinding SiC involves several techniques, each suited to specific applications and desired outcomes:
1. Conventional Grinding: This method uses diamond or silicon carbide abrasives. Diamond is preferred for its superior hardness, but silicon carbide is more cost-effective and suitable for softer materials.
2. Ultrasonic Grinding: This technique employs high-frequency vibrations to reduce grinding forces and improve surface finish. It is particularly effective for complex shapes and reducing tool marks.
3. Longitudinal Torsional Ultrasonic Vibration Grinding (LTUVG): This advanced method combines ultrasonic vibrations with torsional motion, enhancing material removal rates while maintaining surface quality.
- Diamond Abrasives: Diamond is the hardest known material and is ideal for grinding SiC due to its superior cutting efficiency. However, diamond tools are expensive and require specialized setups.
- Silicon Carbide Abrasives: While not as hard as diamond, silicon carbide is effective for grinding softer materials and is more affordable. It is commonly used in green silicon carbide grinding wheels for carbide materials.
- Grinding Wheels: These are composite materials consisting of abrasive grains bonded together. Silicon carbide grinding wheels are used for non-ferrous metals and carbides.
When grinding silicon carbide, safety is paramount:
- Dust Protection: Wear a mask to avoid inhaling SiC dust, which can be harmful to health.
- Eye Protection: Use goggles to prevent eye damage from flying particles.
- Proper Ventilation: Ensure good ventilation to reduce dust accumulation.
1. Preparation: Ensure the grinding area is clean and well-ventilated.
2. Tool Selection: Choose the appropriate abrasive based on the material and desired finish. Diamond is preferred for SiC, while silicon carbide can be used for softer materials.
3. Grinding:
- For conventional grinding, use a bench grinder with a diamond or silicon carbide wheel.
- For ultrasonic grinding, utilize specialized equipment designed for high-frequency vibrations.
4. Final Polishing: Use a fine diamond lap for achieving a high-quality finish on the surface.
- Brittleness: SiC is prone to cracking under high grinding forces. Ultrasonic grinding helps reduce these forces, improving surface quality.
- Tool Wear: Regularly dress grinding wheels to maintain their effectiveness and prevent clogging.
For complex shapes or intricate designs, advanced grinding techniques are essential:
- Electrochemical Grinding (ECG): This method combines electrochemical dissolution with mechanical grinding to reduce tool wear and improve precision.
- Laser-Assisted Grinding: This technique uses a laser to heat the material locally, reducing its hardness and making it easier to grind.
The choice of grinding method and tools significantly affects the cost of processing silicon carbide. Diamond abrasives offer superior performance but are expensive, while silicon carbide abrasives provide a more affordable alternative. Ultrasonic grinding techniques can reduce tool wear and improve efficiency, potentially offsetting higher equipment costs.
The environmental impact of grinding silicon carbide is primarily related to dust generation. Proper ventilation and dust collection systems are essential to minimize environmental and health risks. Additionally, the use of water or coolant during grinding can help reduce dust and improve surface finish.
As technology advances, new methods and tools are being developed to improve the efficiency and precision of grinding silicon carbide. For instance, advancements in ultrasonic grinding equipment and the development of new abrasive materials are expected to enhance the process further.
Grinding silicon carbide requires careful consideration of the tools and techniques used due to its hardness and brittleness. Diamond abrasives offer superior performance but are costly, while silicon carbide abrasives provide a more affordable alternative. Ultrasonic grinding techniques can significantly enhance surface quality and reduce processing challenges. Safety precautions are crucial to prevent health risks associated with SiC dust.
Diamond abrasives are the most effective for grinding silicon carbide due to their superior hardness, but they are more expensive than silicon carbide abrasives.
Ultrasonic grinding reduces grinding forces, improves surface finish, and prevents tool clogging by facilitating better particle flushing.
Wear protective gear like masks and goggles, and ensure good ventilation to prevent inhalation of harmful dust.
Yes, silicon carbide is commonly used for grinding non-ferrous metals and softer materials like aluminum and cast iron.
Green silicon carbide grinding wheels are specifically designed for grinding carbide materials and offer a cost-effective alternative to diamond abrasives.
