Boron carbide is a fascinating and complex chemical compound widely known for its exceptional hardness, unique crystal structure, and versatile industrial applications. This article explores in depth how boron carbide is represented in chemistry, focusing on its chemical formula, crystal structure, bonding, and physical and chemical properties. We will also review its synthesis, applications, and provide multimedia resources to enhance understanding. The article concludes with a detailed FAQ section addressing common questions about boron carbide.

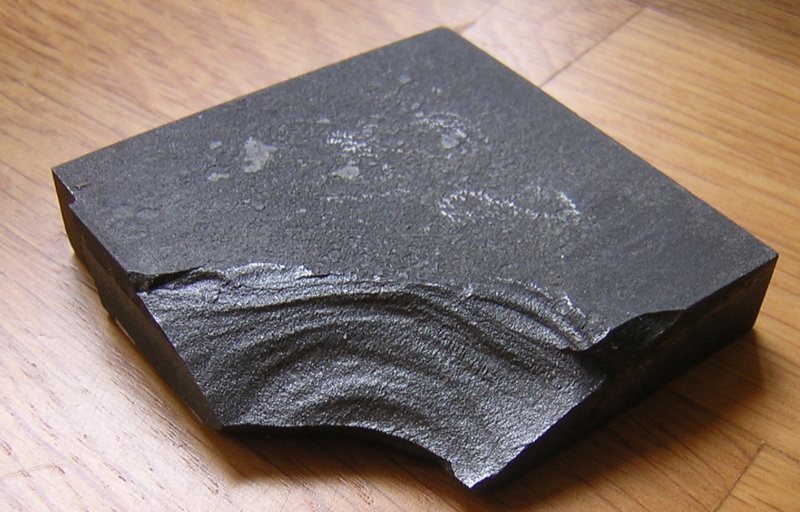

Boron carbide is a ceramic material composed primarily of boron and carbon atoms. It is one of the hardest known materials, ranking just behind diamond and cubic boron nitride on the hardness scale. Due to its remarkable properties, boron carbide is used in armor plating, abrasives, cutting tools, and neutron radiation shielding.
The most commonly cited chemical formula for boron carbide is B₄C, indicating a composition of four boron atoms for every carbon atom. However, this formula is an approximation. The actual stoichiometry of boron carbide varies within a range due to its complex crystal structure and carbon deficiency.
More accurate representations include:
- B₁₂C₃: Reflecting the presence of B₁₂ icosahedral clusters and carbon atoms in the structure.
- (B₁₁C)CBC: A formula indicating substitution of one boron atom by carbon in the icosahedron and a C-B-C linear chain.
- B₁₄C or (B₁₂)(CBB): Representing boron-rich compositions with different chain configurations.
Thus, boron carbide is not a single compound but a family of compounds with varying boron-to-carbon ratios.
The crystal structure of boron carbide is highly complex and unique among ceramics. It is based on:
- B₁₂ Icosahedra: Twelve boron atoms arranged in a cage-like icosahedral geometry.
- C-B-C Linear Chains: Carbon and boron atoms forming linear chains that link the icosahedra.
These units form a rhombohedral lattice with trigonal symmetry (space group R3m). The icosahedra are located at the vertices of the lattice, connected by the linear chains along the[111] direction.
- The icosahedra are composed mainly of boron atoms but can include carbon substitutions.
- The linear chains can vary in composition: C-B-C, C-B-B, or even chains with vacancies.
- The structure can be described equivalently in hexagonal terms, with lattice parameters approximately a = 0.56 nm and c = 1.21 nm.
- Variations in carbon content lead to different polytypes and structural disorder.
This intricate structure is responsible for boron carbide's exceptional mechanical and electronic properties.
- The empirical formula often used is B₄C, reflecting the approximate 4:1 boron-to-carbon ratio.
- The idealized formula can be written as B₁₂C₃, emphasizing the B₁₂ icosahedra and three carbon atoms in the unit cell.
- Non-stoichiometry is common, with carbon content varying between about 6.7 at.% to 20 at.%.
- Substitutions of boron by carbon within the icosahedra and variations in chain composition lead to formulas such as (B₁₁C)CBC or (B₁₂)(CBB).
- Boron carbide exhibits strong covalent bonding between boron and carbon atoms.
- The B₁₂ icosahedra form multi-center bonds, which are electron-deficient and contribute to the material's stability.
- The linear chains provide linkages between icosahedra, influencing electrical and mechanical properties.
- The bonding network results in a material with high hardness, chemical inertness, and thermal stability.
| Property | Value |
|---|---|
| Density | ~2.52 g/cm3 |
| Melting Point | ~2445 °C |
| Hardness (Mohs scale) | 9.3 – 9.75 |
| Vickers Hardness | 28 – 38 GPa |
| Young’s Modulus | 450 – 470 GPa |
| Fracture Toughness | 2.9 – 3.7 MPa·m^1/2 |
| Thermal Conductivity | 30 – 42 W/m·K |
| Electrical Conductivity | ~140 S/m at 25 °C |
| Band Gap | ~2.09 eV (semiconductor) |
- Boron carbide is chemically inert to most acids and alkalis.
- It is stable under ionizing radiation and has a high neutron absorption cross-section (~600 barns), making it useful for nuclear applications.
- It can oxidize in air at high temperatures, forming boron oxides and releasing CO₂.
- The compound is brittle despite its hardness.
Boron carbide is typically synthesized via:
- Carbothermal reduction: Heating boron oxide (B₂O₃) with carbon at high temperatures (~2000–3000 °C) in an electric arc furnace.
2B2O3+7C→B4C+6CO
- Magnesiothermal reduction: Using magnesium to reduce boron oxide in the presence of carbon, followed by acid treatment to remove byproducts.
The synthesis conditions affect the stoichiometry and purity of the final product.
- Armor: Used in bulletproof vests, tank armor due to its extreme hardness and light weight.
- Abrasives: Cutting tools, grinding wheels, and polishing powders.
- Nuclear Industry: Neutron absorbers in control rods and radiation shielding.
- Electronics: Semiconductor applications due to its band gap and electrical properties.
- Rocket Propellants: Used as a fuel additive for high-energy applications.
Boron carbide is a chemically and structurally complex material best represented by the approximate formula B₄C, though more precise formulas such as B₁₂C₃ or (B₁₁C)CBC better capture its unique crystal structure. Its lattice is composed of boron icosahedra linked by carbon-boron-carbon chains, resulting in exceptional hardness, chemical stability, and semiconductor properties. Its synthesis involves high-temperature reduction of boron oxide with carbon or magnesium, producing a material critical for applications in armor, abrasives, nuclear technology, and electronics. Understanding the boron carbide formula and structure is essential for tailoring its properties for advanced technological uses.
The commonly used chemical formula is B₄C, indicating four boron atoms per carbon atom. However, boron carbide's actual composition varies, and formulas like B₁₂C₃ or (B₁₁C)CBC are used to describe its complex structure more accurately.
Boron carbide's structure consists of B₁₂ icosahedra arranged in a rhombohedral lattice, connected by C-B-C linear chains. This unique arrangement gives it exceptional hardness and stability.
Due to substitutions of boron and carbon atoms within the icosahedra and chains, and the presence of vacancies, boron carbide forms a range of compositions rather than a fixed formula, allowing for tuning of its properties.
It has a density of about 2.52 g/cm³, a melting point around 2445 °C, a Mohs hardness of 9.3–9.75, and a Vickers hardness up to 38 GPa. It is brittle but extremely hard and chemically inert.
Boron carbide is primarily synthesized by carbothermal reduction of boron oxide with carbon at high temperatures or by magnesiothermal reduction, followed by purification steps to remove byproducts.
