Boron carbide (B4C) is a highly valued material due to its exceptional hardness, thermal stability, and chemical inertness. It is widely used in applications such as body armor, abrasives, and nuclear reactors. Characterizing boron carbide involves analyzing its structure, properties, and synthesis methods. This article will explore the characterization of boron carbide, including its atomic structure, physical properties, and production techniques.
Boron carbide is known for its empirical formula B4C, though its stoichiometry can vary from B6C5 to B4C. It consists of icosahedral clusters of boron atoms linked by three-atom carbon chains. This unique structure contributes to its hardness, which is 9.3 on the Mohs scale, making it the third hardest material after diamond and cubic boron nitride.
Boron carbide's lattice structure is rhombohedral, featuring 12-atom icosahedra at the vertices of the unit cell. The icosahedra are connected by three-atom linear chains, forming a strong covalent bond network that enhances its hardness and thermal stability.
- Icosahedral Clusters: These clusters are the primary structural units, contributing to boron carbide's hardness and stability.
- Three-Atom Chains: These chains link the icosahedra, providing additional structural support.
Boron carbide exhibits several notable physical properties:
1. Hardness: Ranges from 29 to 41 GPa, making it suitable for applications requiring high wear resistance.
2. Density: Low density of 2.52 g/cm³, which is advantageous for lightweight applications.
3. Thermal Stability: High melting point of 2450°C, contributing to its refractory characteristics.
4. Chemical Inertness: Resistant to chemical reactions at room temperature.
Table: Physical Properties of Boron Carbide
| Property | Value |
|---|---|
| Hardness | 29–41 GPa |
| Density | 2.52 g/cm³ |
| Melting Point | 2450°C |
| Elastic Modulus | 450 GPa |
Boron carbide can be synthesized through various methods:
Involves heating boron and carbon powders at high temperatures (e.g., 1650°C) under argon.
Uses mechanical grinding followed by acid leaching to remove impurities. This method allows for room temperature synthesis with low energy consumption.
Involves reacting amorphous boron with CCl4 in an autoclave at 600°C.
Boron carbide is utilized in several key applications:
Its hardness and low density make it ideal for protective gear.
Used in grinding and polishing due to its extreme hardness.
Employed in nuclear reactors for neutron absorption.
Enhances the strength and wear resistance of ceramic materials.
Characterizing boron carbide involves several techniques:
1. X-Ray Diffraction (XRD): Identifies the crystal structure and phase composition.
2. Scanning Electron Microscopy (SEM): Analyzes particle size and morphology.
3. Transmission Electron Microscopy (TEM): Provides detailed images of the material's structure.
1. Nanoparticle Synthesis: Developing methods to produce boron carbide nanoparticles for advanced applications.

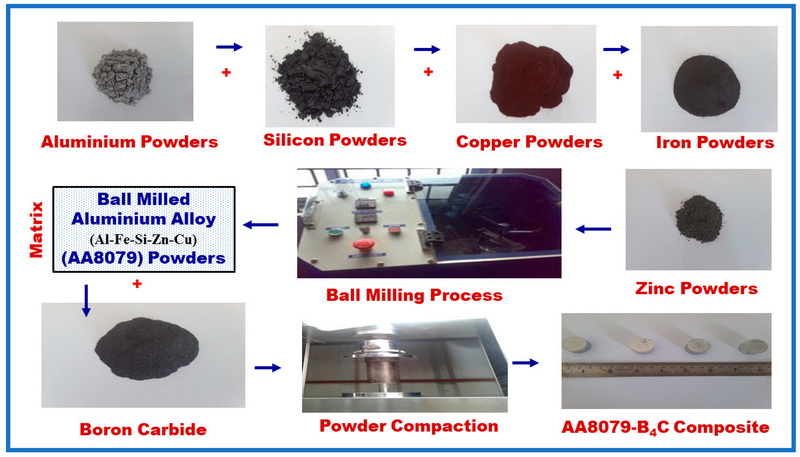

2. Composite Materials: Integrating boron carbide into composite materials to enhance mechanical properties.
3. Sustainable Production: Focusing on low-energy synthesis methods to reduce environmental impact.
Boron carbide is characterized by its unique atomic structure, exceptional hardness, and thermal stability. Its applications span from body armor to nuclear reactors, benefiting from its low density and chemical inertness. As research advances, innovations in synthesis and characterization will further enhance the utility of boron carbide in various industries.
Boron carbide features a rhombohedral lattice with 12-atom icosahedra linked by three-atom carbon chains.
Boron carbide can be synthesized through direct synthesis, mechanochemical methods, and solvothermal reduction.
Boron carbide is used in body armor, abrasive materials, nuclear reactors, and ceramic composites.
Characterization involves XRD for crystal structure, SEM for morphology, and TEM for detailed structural analysis.
Future trends include nanoparticle synthesis, composite materials development, and sustainable production methods.
