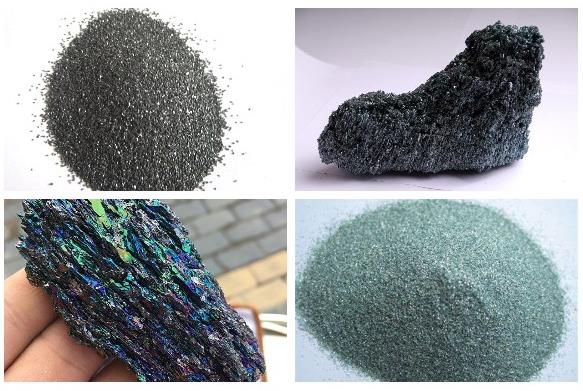

Silicon carbide (SiC) is a compound of silicon and carbon that has gained significant attention in various industries due to its remarkable properties. Known for its exceptional hardness, SiC ranks as the third hardest material on Earth, surpassed only by diamond and boron carbide. This article explores the hardness of silicon carbide, its unique properties, applications, and much more.
Silicon carbide is a semiconductor material that has been used in various applications ranging from electronics to abrasives. Its unique crystal structure consists of tetrahedral arrangements of silicon and carbon atoms, which are bonded by strong covalent bonds. This structure contributes to its high mechanical strength and hardness.
1. Hardness: Silicon carbide has a Mohs hardness rating of 13 on the new scale, making it one of the hardest materials available. This exceptional hardness is crucial for applications requiring wear resistance and durability.
2. Mechanical Strength: SiC exhibits high fracture toughness (6.8 MPa m^0.5) and a Young's modulus of 440 GPa, indicating its stiffness and ability to retain shape under stress.
3. Thermal Stability: SiC maintains its mechanical strength at temperatures up to 1,400°C, making it suitable for high-temperature applications.
4. Chemical Resistance: It has superior resistance to chemical corrosion compared to other ceramics, making it ideal for harsh environments.
5. Thermal Conductivity: With a thermal conductivity ranging from 60-200 W/m·K at room temperature, SiC effectively transfers heat, which is essential in many electronic applications.
| Property | Value |
|---|---|
| Mohs Hardness | 13 |
| Fracture Toughness | 6.8 MPa m^0.5 |
| Young's Modulus | 440 GPa |
| Thermal Conductivity | 60-200 W/m·K |
Silicon carbide's unique properties make it suitable for a variety of applications across different industries:
SiC is used in aerospace components due to its ability to withstand extreme conditions, including high temperatures and pressures.
One of the most significant applications of silicon carbide in aerospace engineering is in gas turbine engines where it is used in the manufacture of turbine blades and nozzle vanes. The high strength and heat resistance make SiC an ideal material for these components.
- Turbine Blades: Silicon carbide turbine blades are highly resistant to high-temperature oxidation and thermal shock.
- Nozzle Vanes: Used in the hot section of gas turbine engines, SiC nozzle vanes provide excellent erosion and corrosion resistance.
In electric vehicles (EVs), SiC enhances power conversion efficiency in inverters and supports fast-charging infrastructure. Its high thermal conductivity allows for better heat dissipation in battery systems.
SiC devices are widely used in data centers and industrial automation due to their high efficiency and reliability under extreme conditions. They enable smaller, faster, tougher, more efficient devices compared to traditional silicon-based semiconductors.
Silicon carbide improves the performance of solar inverters and wind power systems by enhancing energy conversion efficiency. It withstands higher temperatures and voltages than silicon, making it a more reliable component in renewable energy systems.
Due to its hardness, SiC is commonly used in abrasive materials and cutting tools that require durability against wear.
The hardness of silicon carbide can be attributed to its unique crystalline structure and strong covalent bonding between silicon and carbon atoms. The hardness is quantified using the Mohs scale, where SiC scores a remarkable 13, indicating its superior resistance to scratching and abrasion.
| Material | Mohs Hardness |
|---|---|
| Diamond | 10 |
| Boron Carbide | 9.5 |
| Silicon Carbide | 13 |
As shown in the table above, silicon carbide surpasses traditional hard materials like diamond when considering the new Mohs scale.
The production of silicon carbide primarily involves the Acheson process, which was invented by Edward Goodrich Acheson in the late 19th century. This method involves mixing silica (SiO2) with carbon (usually petroleum coke) and heating it to extremely high temperatures (around 2500°C). Under these conditions, a chemical reaction occurs that forms silicon carbide crystals.
- Materials Used: The main raw materials are silica sand and carbon sources like petroleum coke.
- Heating Method: Graphite rods are heated electrically within a furnace until they reach the necessary temperature for chemical reactions to occur.
- Formation: As the mixture heats up, silicon carbide forms around the graphite rods, which can then be extracted as large crystals or ground into powder for various applications.
This energy-intensive process was initially located near hydroelectric plants to take advantage of cheaper electricity costs.
Silicon carbide stands out as an extraordinary material due to its exceptional hardness, mechanical strength, thermal stability, and chemical resistance. Its unique properties make it indispensable across various industries including aerospace, automotive, power electronics, and renewable energy sectors. As technology advances, the demand for silicon carbide is expected to grow further solidifying its position as a critical material in modern applications.
Silicon carbide's hardness is primarily due to its unique crystalline structure and strong covalent bonds between silicon and carbon atoms.
SiC is used in aerospace, automotive, power electronics, renewable energy sectors, and cutting tools due to its exceptional properties.
On the new Mohs scale, silicon carbide scores a hardness of 13 while diamond scores a maximum of 10; thus SiC can be considered harder in specific contexts.
Yes, silicon carbide can maintain its mechanical strength at temperatures up to 1,400°C.
SiC devices offer enhanced performance in power conversion systems with higher efficiency and better heat management compared to traditional materials.
