Boron carbide (B₄C) is one of the hardest known materials, with exceptional mechanical properties such as high hardness, low density, and excellent chemical stability. It is widely used in armor, abrasives, nuclear applications, and wear-resistant components. However, despite its outstanding properties, sintering boron carbide is notoriously difficult. This article delves into the fundamental reasons behind the challenges in sintering boron carbide, exploring its crystal structure, bonding characteristics, thermodynamics, microstructure evolution, and the advanced sintering techniques employed to overcome these obstacles. Supported by images, videos, and scientific studies, this comprehensive discussion provides a deep understanding of why sintering boron carbide is hard and how modern methods address these difficulties.
Boron carbide is a ceramic compound composed primarily of boron and carbon atoms. Its nominal chemical formula is B₄C, but the actual composition can vary slightly due to its complex crystal structure. It is an extremely hard material (Mohs hardness ~9.5), surpassed only by diamond and cubic boron nitride.
Key properties include:
- High hardness (~37 GPa Vickers hardness)
- Low density (~2.52 g/cm³)
- High melting point (~2447 °C)
- Chemical inertness and corrosion resistance
- Excellent neutron absorption capability
Boron carbide's structure is based on B₁₂ icosahedra linked by three-atom chains (CBC chains) along the rhombohedral lattice. This unique arrangement results in a highly covalent bonding network with strong directional bonds.
More than 90% of the bonding in boron carbide is covalent, which means atoms share electrons in strong, directional bonds. This covalent nature contributes to its extreme hardness but also limits atomic diffusion during sintering, making densification difficult.
The strong covalent bonds in boron carbide result in very low atomic mobility at elevated temperatures. Sintering requires atoms to diffuse and rearrange to eliminate pores and densify the material. The low diffusion rates in B₄C hinder this process, requiring extremely high temperatures (typically >2000 °C) to achieve densification.
Boron carbide exhibits high grain boundary resistance, meaning grain boundaries are less mobile and resist rearrangement. Additionally, its low surface energy reduces the driving force for sintering, further complicating densification.
Due to the above factors, pressureless sintering of pure boron carbide often results in porous ceramics with densities below 90%. Porosity negatively affects mechanical properties such as strength and toughness.
At the high temperatures required for sintering, boron carbide grains tend to grow abnormally, which can degrade mechanical properties. Controlling grain growth while achieving densification is a major challenge.
Hot pressing applies uniaxial pressure during sintering at temperatures around 1900–2300 °C. Pressure enhances particle rearrangement and densification, reducing porosity and grain growth.
Advantages:
- Higher density ceramics
- Finer microstructure
- Improved mechanical properties
Limitations:
- Expensive equipment
- Limited to simple shapes
HIP applies isostatic pressure in an inert atmosphere or vacuum, enabling uniform densification and reducing defects.
SPS uses pulsed electric currents and pressure to rapidly heat and densify powders at lower temperatures and shorter times, minimizing grain growth.
Adding small amounts of sintering aids such as carbon, silicon carbide, or metal oxides (Al₂O₃, TiO₂) can promote densification by forming transient liquid phases or enhancing diffusion.
Sintering proceeds through stages:
- Initial stage: Particle rearrangement and neck formation
- Intermediate stage: Neck growth and pore shrinkage
- Final stage: Pore elimination and grain growth
In boron carbide, the slow diffusion and strong bonding slow these stages, especially pore elimination.
Densely sintered boron carbide exhibits:
- Vickers hardness up to 37.8 GPa
- Flexural strength around 445 MPa
- Fracture toughness ~4.7 MPa·m^0.5
These properties depend strongly on density, grain size, and microstructure controlled during sintering.

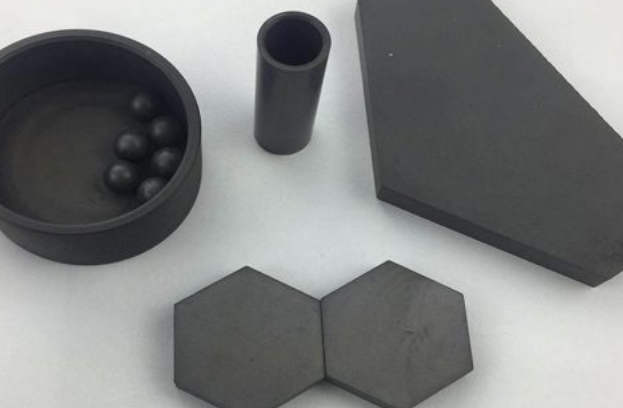

- Ballistic armor and personal protection
- Abrasives and cutting tools
- Nuclear reactor neutron absorbers
- Wear-resistant components in machinery
Sintering boron carbide is hard due to its strong covalent bonding, low atomic diffusion, high grain boundary resistance, and low surface energy. These factors necessitate very high temperatures and/or pressures to achieve densification without excessive grain growth or porosity. Advanced sintering techniques like hot pressing, hot isostatic pressing, and spark plasma sintering, often combined with sintering aids, are employed to overcome these challenges and produce dense, high-performance boron carbide ceramics.
Because of its strong covalent bonds and low atomic diffusion rates, boron carbide requires very high temperatures and pressures to densify.
Hot pressing, hot isostatic pressing, and spark plasma sintering are commonly used to achieve dense boron carbide ceramics.
They promote densification by forming liquid phases or enhancing diffusion, lowering sintering temperature and improving microstructure.
Vickers hardness up to 37.8 GPa, flexural strength around 445 MPa, and fracture toughness near 4.7 MPa·m^0.5.
Yes, but it requires very high temperatures (>2000°C) and often results in porous ceramics with inferior properties.
