Silicon carbide (SiC), also known as carborundum, is a hard chemical compound containing silicon and carbon. It is a wide bandgap semiconductor that occurs naturally as the extremely rare mineral moissanite but has been mass-produced as a powder and crystal since 1893 for use as an abrasive. Silicon carbide grains can be bonded together through sintering to form very hard ceramics, which are widely used in applications requiring high endurance, such as car brakes, car clutches, and ceramic plates in bulletproof vests. Large single crystals of silicon carbide can be grown by the Lely method and cut into gems known as synthetic moissanite.
Natural moissanite was first discovered in 1893 by Ferdinand Henri Moissan as a small component of the Canyon Diablo meteorite in Arizona. In 1905, the material was named after Moissan. The initial discovery of naturally occurring SiC was disputed because the sample may have been contaminated by silicon carbide saw blades already on the market.
While rare on Earth, silicon carbide is remarkably common in space. It is a common form of stardust found around carbon-rich stars, and examples of this stardust have been found in pristine condition in primitive meteorites. The silicon carbide found in space and meteorites is almost exclusively the beta-polymorph. Analysis of SiC grains found in the Murchison meteorite, a carbonaceous chondrite meteorite, has revealed anomalous isotopic ratios of carbon and silicon, indicating that these grains originated outside the solar system.
Silicon carbide crystallizes in a close-packed structure covalently bonded to each other. The atoms are arranged so that two primary coordination tetrahedra, where four carbon and four silicon atoms are bonded to a central Si and C atom, are formed. These tetrahedra are linked together through their corners and stacked to form polar structures called polytypes.
The most common polytypes of silicon carbide are 3C (cubic), 4H (hexagonal), and 6H (hexagonal). Each polytype exhibits different physical properties due to variations in atomic arrangement. For instance, 4H-SiC has superior thermal conductivity compared to 3C-SiC, making it more suitable for high-power electronic applications.
Silicon carbide possesses a unique combination of physical, chemical, thermal, and electrical properties.
Physical Properties:

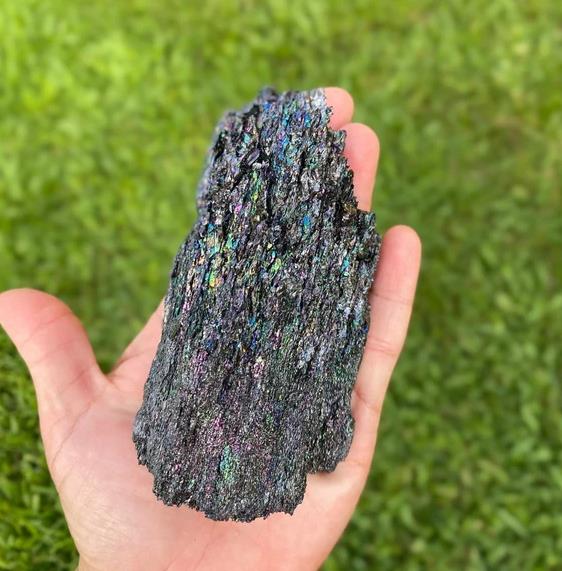

- Appearance: Yellow to green to bluish-black, iridescent crystals or black grey to green powder; pure SiC is colorless. The brown to black color of the industrial product results from iron impurities. The rainbow-like luster of the crystals is due to the thin-film interference of a passivation layer of silicon dioxide that forms on the surface.
- Density: 3.16 g⋅cm−3 (hexagonal). 3.21 g/cm³.
- Odor: No odor.
- Solubility: Insoluble in water, alcohol, and acid. Soluble in molten alkalis (such as NaOH and KOH) and also molten iron.
Mechanical Properties:
- Hardness: Silicon carbide has the ability to form an extremely hard ceramic substance with a hardness rating near that of diamond.
- Endurance: Widely used in applications requiring high endurance, such as car brakes, car clutches, and ceramic plates in bulletproof vests.
Thermal Properties:
- Melting Point: 2,830 °C (5,130 °F; 3,100 K) (decomposes). 2,730 °C.
- Sublimation Temperature: Approximately 2,700 °C.
- Thermal Conductivity: High thermal conductivity makes it useful for heat sinks in electronic devices.
- Thermal Expansion: Very low coefficient of thermal expansion of about 2.3 × 10^−6 K^−1 near 300 K (for 4H and 6H SiC).
- Thermal Stability: Maintains its integrity at high temperatures.
- Thermal Shock Resistance: Exceptional thermal shock resistant qualities due to high thermal conductivity coupled with low thermal expansion and high strength.
Chemical Properties:
- Chemical Inertness: Highly inert chemically, partly due to the formation of a thin passivated layer of SiO2.
- Resistance: Resistant to most organic and inorganic acids, alkalis, and salts in a variety of concentrations except for hydrofluoric acid and acid fluorides.
Electrical Properties:
- Semiconductor: Silicon carbide is a semiconductor with a wide bandgap (approximately 3.0 eV for 4H-SiC).
- Doping: Can be doped n-type by nitrogen or phosphorus and p-type by beryllium, boron, aluminum, or gallium.
- Conductivity: Metallic conductivity has been achieved by heavy doping with boron or aluminum.
- Superconductivity: Superconductivity has been detected in 3C-SiC:Al, 3C-SiC:B, and 6H-SiC:B at similar temperatures ~1.5 K.
Silicon carbide is a versatile material with a wide range of applications:
1. Abrasive Material: Used as an abrasive since its discovery. Its hardness makes it suitable for grinding metals and polishing glass. It is commonly used in sandpaper and grinding wheels.
2. Ceramics Manufacturing: Grains of silicon carbide can be bonded together by sintering to form very hard ceramics. These ceramics are used in applications requiring high endurance such as car brakes, car clutches, cutting tools, and ceramic plates for bulletproof vests.
3. Electronics Industry: Silicon carbide plays a crucial role in semiconductor electronics devices that operate at high temperatures or high voltages or both. It is used in manufacturing fast-switching devices like MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors), Schottky diodes for power conversion circuits, LEDs (Light Emitting Diodes), and other electronic appliances.
4. Power Electronics: Due to its ability to handle high voltages and temperatures efficiently, silicon carbide is increasingly being used in power electronics applications such as electric vehicles (EVs), renewable energy systems like solar inverters, and industrial motor drives.
5. Lining Work: Used in lining work for its uniformity abrasion resistance and dimensional stability. The high sublimation temperature makes it useful for bearings and furnace parts.
6. Optical Applications: Silicon carbide's optical transparency at certain wavelengths allows it to be used for optical components such as mirrors for infrared optics.
Silicon carbide is classified as a semiconductor due to its bandgap properties which enable it to conduct electricity under certain conditions while acting as an insulator under others. Doping with different elements allows control over its electrical properties; for instance:
- N-type conductivity can be achieved through doping with nitrogen or phosphorus.
- P-type conductivity can result from doping with beryllium or aluminum.
This tunability makes SiC an essential material for modern electronic devices that require efficient power management under extreme conditions.
Superconductivity has been observed in silicon carbide when doped with specific elements like aluminum or boron. Notably:
- Superconductivity has been detected in various polytypes such as 3C-SiC:Al and 6H-SiC:B at temperatures around 1.5 K.
- The superconducting properties depend more on the dopant than on the polytype itself.
This phenomenon opens up new avenues for research into quantum computing applications where materials exhibit superconducting behavior at higher temperatures.
The production process of silicon carbide does raise environmental concerns primarily associated with energy consumption during manufacturing processes such as chemical vapor deposition (CVD) or physical vapor deposition (PVD). However:
- The durability of SiC products leads to longer lifespans compared to traditional materials which can reduce waste over time.
- Its use in energy-efficient devices contributes positively towards reducing overall energy consumption across various industries.
Silicon carbide is a remarkable material characterized by its unique combination of properties that make it suitable for various applications ranging from abrasives to advanced electronic devices operating under extreme conditions. Its versatility continues to drive innovation across multiple industries including automotive electronics, renewable energy systems, cutting tools manufacturing, and even optical technologies.
As technology advances towards higher efficiency levels and sustainability goals, silicon carbide's role will undoubtedly expand further into new frontiers such as quantum computing and beyond.
Silicon carbide is also commonly known as carborundum.
Silicon carbide is primarily used as an abrasive material, in ceramics for high-endurance applications like brakes and clutches, and in semiconductor devices designed for high-temperature operations.
No, silicon carbide is insoluble in water, alcohols, acids except hydrofluoric acid or acid fluorides.
Silicon carbide has a high sublimation temperature (~2,700°C), excellent thermal conductivity coupled with low thermal expansion rates which allows it to maintain structural integrity under extreme conditions.
Superconductivity occurs when silicon carbide is doped with elements like aluminum or boron; superconductivity has been noted at low temperatures (~1.5 K) across various polytypes including cubic forms like 3C-SiC:Al.
