Boron carbide body armor has emerged as a leading material in ballistic protection, widely used by military and law enforcement agencies worldwide. Its unique combination of extreme hardness, lightweight nature, and exceptional resistance to impact makes it an ideal choice for personal protection in high-risk environments. This comprehensive article explores what makes boron carbide body armor so effective, delving into its material properties, manufacturing processes, applications, and the science behind its superior performance.
Supported by detailed images and scientific studies, this article also includes a FAQ section to address common questions about boron carbide body armor.

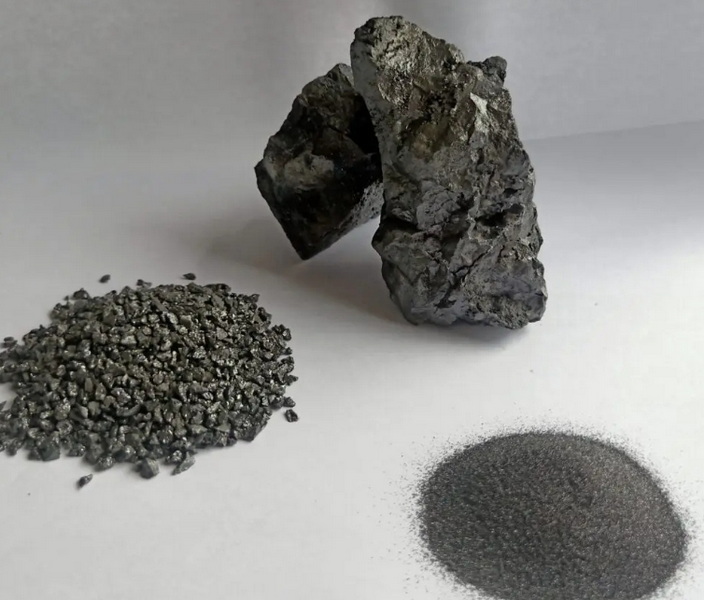

Boron carbide (B₄C) is a ceramic material known for its extreme hardness, ranking third only to diamond and cubic boron nitride. Its exceptional mechanical properties, combined with its low density (~2.52 g/cm3), make it highly suitable for ballistic protection applications where weight and mobility are critical.
Boron carbide body armor typically consists of ceramic plates made from dense, sintered B₄C powder, often backed by composite materials like Kevlar or ultra-high molecular weight polyethylene (UHMWPE) to absorb residual energy and prevent penetration.
| Property | Description |
|---|---|
| Hardness (Mohs) | ~9.5 (extremely hard) |
| Density | ~2.52 g/cm3(lightweight) |
| Melting Point | ~2450 °C |
| Compressive Strength | ~2900 MPa |
| Fracture Toughness | ~3.5 MPa·m1/2 |
| Thermal Conductivity | High (~30 W/m·K) |
| Chemical Stability | Highly inert and corrosion resistant |
These properties contribute to boron carbide's ability to resist penetration, absorb impact energy, and maintain structural integrity under extreme conditions.
Boron carbide armor plates are produced through advanced ceramic processing:
1. Powder Preparation: High-purity boron carbide powder is synthesized via carbothermal or magnesiothermal reduction.
2. Powder Processing: The powder is milled and classified to achieve uniform particle size.
3. Sintering: Hot pressing or spark plasma sintering densifies the powder into solid plates with minimal porosity.
4. Machining: Due to extreme hardness, diamond tools are used to shape and finish plates to precise dimensions.
5. Composite Assembly: Plates are combined with fiber backings to absorb residual energy and prevent spallation.
Innovations like drilling holes in pre-sintered plates reduce manufacturing costs and improve efficiency.
When a projectile strikes boron carbide body armor:
- The ceramic surface shatters locally, absorbing and dissipating the kinetic energy of the bullet.
- The hard ceramic breaks the projectile, reducing its penetration capability.
- The backing material absorbs residual energy and captures fragments from both the projectile and ceramic.
- This combination prevents penetration and reduces blunt force trauma to the wearer.
- Superior Hardness: Provides excellent resistance to penetration by high-velocity projectiles.
- Lightweight: Lower density reduces wearer fatigue and increases mobility.
- Multi-hit Capability: Can withstand multiple impacts with minimal loss of protection.
- Thermal Stability: Maintains performance under extreme temperature conditions.
- Chemical Inertness: Resistant to corrosion and environmental degradation.
- Enhanced Mobility: Lightweight design improves operational effectiveness in the field.

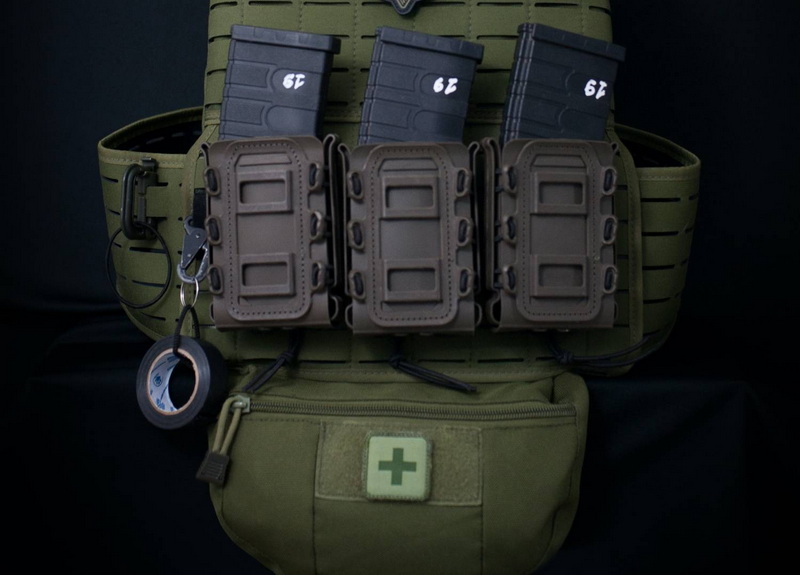

- Personal Protective Equipment: Used in Small Arms Protective Inserts (SAPI) and Enhanced SAPI (ESAPI) plates for military and law enforcement.
- Vehicle Armor: Reinforces armored personnel carriers, tanks, helicopters, and aircraft.
- Ballistic Shields: Provides lightweight, portable protection for tactical teams.
- Specialized Defense Systems: Used in naval vessels, aerospace components, and critical infrastructure protection.
- Brittleness: Susceptible to cracking or shattering under certain impact conditions.
- High Cost: Manufacturing and raw materials are expensive compared to other armor types.
- Machining Difficulty: Requires specialized diamond tooling and processes.
- Supply Constraints: Limited production capacity can affect availability.
- Development of composite ceramics to improve toughness and reduce brittleness.
- Advances in additive manufacturing for complex, lightweight armor designs.
- Research into nano-engineered powders for enhanced ballistic performance.
- Expansion into civilian protective gear and industrial applications.
Boron carbide body armor plates represent a pinnacle of modern ballistic protection technology. Their combination of extreme hardness, lightweight design, and chemical and thermal stability makes them ideal for personal body armor, vehicle and aircraft protection, and specialized industrial applications. Despite challenges such as brittleness and high cost, ongoing research and manufacturing innovations continue to enhance their performance and accessibility. Understanding the properties and applications of boron carbide body armor plates is essential for selecting effective protective solutions in defense and beyond.
They are used in personal body armor, vehicle and aircraft armor, ballistic shields, and industrial wear-resistant components.
Because of its exceptional hardness, lightweight nature, and ability to absorb ballistic energy effectively.
Through powder synthesis, milling, sintering, and precision machining with diamond tools.
They are brittle, costly to produce, and require specialized machining.
Yes, they are increasingly used in personal protective equipment and industrial wear parts.
