Sandblasting is an effective method for cleaning, smoothing, or preparing surfaces through the use of abrasive materials propelled at high speeds. Among the various media available, coal slag sandblasting media stands out due to its unique properties, cost-effectiveness, and wide range of applications[1][3]. This article delves into what coal slag sandblasting media is, its uses, advantages, disadvantages, and other essential aspects.

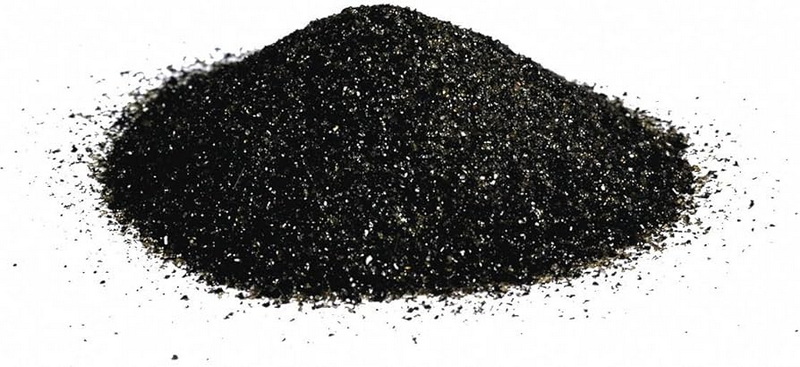

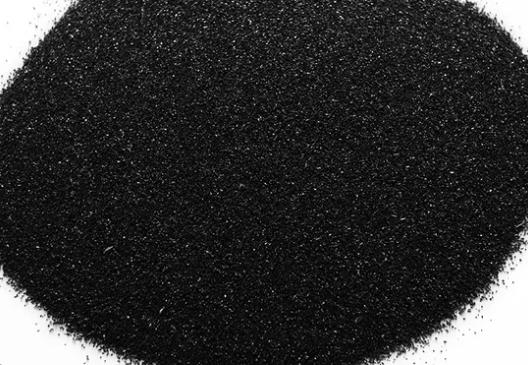

Coal slag sandblasting media is an abrasive material made from the by-products of coal combustion in power plants[1][2]. During the combustion process, temperatures reach upwards of 2,000 degrees Fahrenheit, resulting in molten ash that vitrifies into a glassy material upon cooling[2][4]. This material is then crushed and sorted into various sizes to serve as an effective abrasive in sandblasting applications[10].
Coal slag consists of alumina-silicate with a glass matrix[4]. Its key characteristics include:
- Angular Shape: The granules have a sharp, angular shape that enhances their cutting ability, making them highly efficient at removing rust, scale, paint, and other debris from surfaces[1][2].
- Hardness: With a Mohs hardness of 6-7, coal slag is hard enough to remove tough coatings but not so hard as to damage the underlying surface excessively[1][2][7].
- Low Free Silica: Coal slag contains less than 1% free silica, reducing the risk of respiratory issues compared to traditional silica sand[2].
- Density: Being heavier than most other media, coal slag falls directly onto the surface being cleaned, resulting in less airborne dust[2].
- Color: Typically black, which can affect visibility during blasting operations compared to lighter media like crushed glass[1].
The production of coal slag sandblasting media involves several steps:
1. Collection: The slag is collected as a by-product from coal-burning power plants[1].
2. Cooling: The molten slag is cooled through vitrification, causing it to solidify into hard granules[4][10].
3. Crushing: The solidified slag is crushed into smaller particles[4].
4. Sorting: The crushed material is sorted into different grades or mesh sizes to suit various applications[1].
5. Washing: All grades of coal slag are washed to remove impurities[1].
6. Dust Suppression: A dust suppressant is added to minimize dust during use[1].
Coal slag is a versatile abrasive used across various industries due to its effectiveness in surface preparation and coating removal[2].
- Steel Structures: Coal slag is extensively used for preparing steel surfaces in shipyards, bridges, and buildings[2][3][9]. It effectively removes mill scale, rust, and old coatings, providing a clean surface for new coatings.
- Concrete: It is also suitable for concrete surface preparation, removing coatings and contaminants to ensure proper adhesion of new materials[3].
- Water Tanks and Pipes: Coal slag is used to remove hard deposits from water tanks, pipes, and other industrial equipment[2]. Its angular shape allows it to penetrate tight spaces and intricate components.
- Paint Removal: Coal slag efficiently removes multiple layers of paint from various surfaces[3][9]. The different mesh sizes available allow for adjusting the aggressiveness of the removal process.
- Rust and Scale Removal: It is highly effective in removing rust and scale from steel surfaces, essential for maintenance and restoration projects[6].
- Epoxy Coatings: Coal slag can blast through tough epoxy coatings, making it suitable for applications requiring the removal of robust protective layers[9].
- Oil and Shipyard Industry: Coal slag is often used in open blasting operations due to its cost-effectiveness and efficiency[7][9].
- Marine Structures: It is employed in maintaining and preparing surfaces on offshore platforms and marine structures[9].
- Automotive Industry: Coal slag can be used for removing rust and paint from auto bodies and parts, preparing them for restoration[7].
Like any abrasive, coal slag has its pros and cons, which determine its suitability for specific applications[3].
- Cost-Effectiveness: Coal slag is generally less expensive than other abrasives like crushed glass or aluminum oxide[3][6].
- Efficiency: Its angular shape and hardness provide enhanced speed and cutting ability, allowing for quick removal of coatings and contaminants[1][2][9].
- Versatility: Available in various mesh sizes, coal slag can be used for a wide range of applications, from light to heavy coating removal[1][3].
- Low Silica Content: The low free silica content reduces the risk of respiratory issues compared to traditional sandblasting with silica sand[2].
- Environmentally Friendly: Many coal slag options are approved to meet environmental requirements, and it is a recycled by-product of coal combustion[3][10].
- Dust Production: Coal slag typically produces more dust than some other media like crushed glass, which can reduce visibility and require more containment measures[3][8].
- Single-Use: It is generally not reusable, as it turns to dust upon impact[6]. This can lead to higher disposal costs and the need for more material.
- Embedment: There can be significant abrasive particle embedment after blasting with coal slag, which may affect the integrity of the substrate and require additional steps[8].
- Not Suitable for All Materials: It is not recommended for blasting on stainless steel or aluminum due to the risk of surface contamination and damage[4].
- Moisture Sensitivity: Coal slag is only suitable for dry abrasive blasting, as exposure to moisture can cause it to cake or mud up[8].
When choosing a sandblasting media, it's important to consider how coal slag stacks up against alternatives like crushed glass, garnet, and aluminum oxide[3][7].
- Cost: Coal slag is typically less expensive than crushed glass[3].
- Dust: Crushed glass produces less dust, offering better visibility during blasting[3].
- Environmental Impact: Both are considered environmentally friendly, with crushed glass made from recycled glass[3][7].
- Applications: Coal slag is better for heavy coating removal, while crushed glass is suitable for lighter applications and sensitive surfaces[3].
- Cost: Coal slag is generally more cost-effective than garnet[10].
- Reusability: Garnet can be recycled and reused, making it more economical for large projects[7].
- Dust: Garnet produces very low dust, improving visibility and reducing containment needs[7].
- Applications: Garnet is often used for wet or dry sandblasting and offers excellent coating preparation, while coal slag is preferred for its cutting speed and lower cost[7].
- Cost: Coal slag is much more affordable than aluminum oxide[6][7].
- Cutting Speed: Aluminum oxide provides a higher cutting speed and is suitable for demanding applications[6].
- Reusability: Aluminum oxide can be recycled many times, making it cost-effective for repeated use[7].
- Applications: Aluminum oxide is used for surface treatments and preparations requiring high precision, while coal slag is ideal for removing heavy amounts of paint and rust[6].
To maximize the effectiveness and safety of using coal slag sandblasting media, follow these best practices:
1. Proper Ventilation: Ensure adequate ventilation to minimize dust exposure. Use local exhaust ventilation systems to capture dust at the source.
2. Personal Protective Equipment (PPE): Wear appropriate PPE, including a NIOSH-approved respirator, safety goggles, gloves, and protective clothing[8].
3. Surface Preparation: Clean the surface to remove any loose debris or contaminants that could interfere with the blasting process.
4. Equipment Setup: Use well-maintained sandblasting equipment with adjustable pressure settings to control the intensity of the blast.
5. Abrasive Selection: Choose the appropriate mesh size of coal slag based on the specific application and desired surface profile[1].
6. Blasting Technique: Maintain a consistent distance and angle from the surface to ensure uniform removal of coatings and contaminants.
7. Dust Control: Use dust suppressants and containment methods to minimize dust emissions and environmental impact[1][8].
8. Waste Disposal: Dispose of spent coal slag in accordance with local environmental regulations[6].
9. Inspection: After blasting, inspect the surface to ensure it meets the required cleanliness and profile standards.
10. Safety Training: Provide comprehensive training to all operators on the safe and effective use of coal slag sandblasting media and equipment.
Coal slag sandblasting media is a widely used abrasive known for its cost-effectiveness, efficiency, and versatility[1][2][9]. Derived from the by-products of coal combustion, it offers an angular shape and suitable hardness for various surface preparation and coating removal applications[1][4]. While it presents certain disadvantages such as dust production and single-use, its benefits often outweigh these drawbacks, especially in industries like shipbuilding, construction, and automotive restoration[2][3][7]. By understanding its properties, applications, and best practices, users can maximize the benefits of coal slag while minimizing potential risks.
Coal slag sandblasting media is an abrasive material produced from the by-products of coal combustion in power plants[1][2]. It is used for surface preparation, coating removal, and cleaning in various industries due to its angular shape and hardness.
The main advantages include its cost-effectiveness, efficiency in removing coatings, versatility in applications, and low free silica content, which reduces respiratory risks[1][3][2].
Coal slag is typically less expensive and better for heavy coating removal, while crushed glass produces less dust and is suitable for lighter applications and sensitive surfaces[3].
Safety precautions include ensuring proper ventilation, wearing appropriate PPE such as respirators and goggles, and using dust control measures to minimize dust exposure[8].
Coal slag is commonly used in industries such as shipbuilding, construction, automotive restoration, and oil and gas for surface preparation and coating removal[7][9].
