● Introduction to Boron Carbide Powder
● Chemical and Physical Properties
● Manufacturing and Preparation
● Applications of Boron Carbide Powder
>> Electronics and Semiconductors
>> Composite Materials and Additives
● Advantages of Boron Carbide Powder
● Future Trends and Innovations
● FAQ
>> 1. What is boron carbide powder used for?
>> 2. Why is boron carbide powder so hard?
>> 3. Can boron carbide powder be used in nuclear reactors?
>> 4. How is boron carbide powder manufactured?
>> 5. What are the limitations of boron carbide powder?
Boron carbide powder is a highly versatile and advanced ceramic material known for its exceptional hardness, low density, chemical inertness, and thermal stability. It ranks as one of the hardest materials known, surpassed only by diamond and cubic boron nitride, making it invaluable for a wide array of industrial, military, and scientific applications. This comprehensive article explores the many uses of boron carbide powder, its unique properties, manufacturing processes, and the reasons behind its widespread adoption across various sectors.

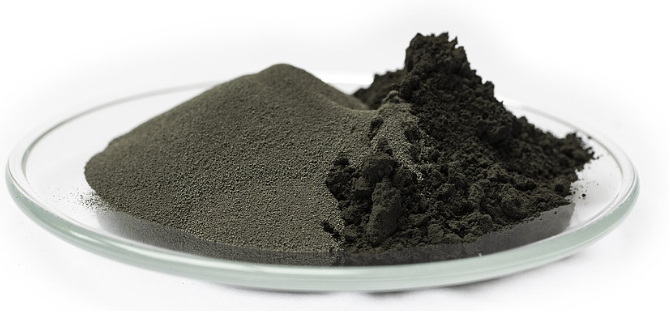

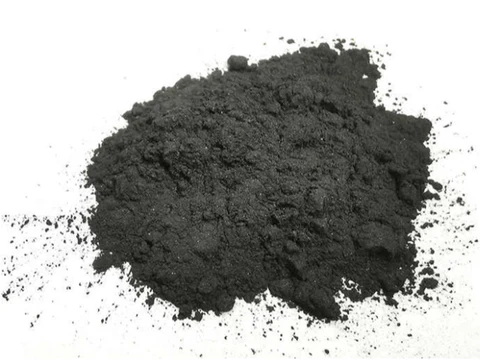

Boron carbide powder, often abbreviated as B₄C, is a black crystalline material composed primarily of boron and carbon atoms. It is known for its extreme hardness, ranking third after diamond and cubic boron nitride. The powder form is used as a raw material for manufacturing ceramics, abrasives, and other high-performance components.
Its unique combination of properties—such as low density (~2.52 g/cm3), high melting point (~2450 °C), and excellent neutron absorption—makes boron carbide powder a critical material in advanced technology and industrial applications.
| Property | Value / Description |
|---|---|
| Chemical Formula | B₄C (approximate) |
| Appearance | Black crystalline powder |
| Density | ~2.52 g/cm3 |
| Hardness (Mohs) | 9.3 – 9.5 (extremely hard) |
| Melting Point | ~2450 °C |
| Thermal Conductivity | 30 – 35 W/m·K |
| Elastic Modulus | ~460 GPa |
| Fracture Toughness | ~3.5 MPa·m1/2 |
| Chemical Stability | Highly inert, corrosion resistant |
| Neutron Absorption | High cross-section, useful in nuclear shielding |
Boron carbide powder is typically produced via:
- Carbothermal reduction: Heating boron oxide (B₂O₃) with carbon at high temperatures in an electric arc furnace, producing B₄C and carbon monoxide.
- Magnesiothermal reduction: Using magnesium to reduce boron oxide in the presence of carbon, followed by acid washing to remove byproducts.
- Milling and purification: The resulting powder is milled to desired particle sizes and purified to remove impurities.
Advanced manufacturing techniques enable the production of powders with controlled particle size distributions, purity levels, and morphology tailored to specific applications.
Due to its extreme hardness, boron carbide powder is widely used as an abrasive for:
- Polishing and grinding sapphire and other hard crystals.
- Lapping and finishing hard materials in electronics and optics.
- Producing abrasive wheels, sandpapers, and blasting media.
Its hardness surpasses aluminum oxide and silicon carbide, making it ideal for precision abrasive applications.
Boron carbide powder is a key component in advanced ballistic armor:
- Used in personal body armor plates, helmets, and vehicle armor.
- Provides lightweight, high-strength protection against bullets and shrapnel.
- Its low density reduces weight while maintaining high stopping power.
Boron carbide's high melting point and oxidation resistance make it suitable for:
- Additives in carbon-bonded refractories used in steelmaking furnaces.
- Kiln furniture and other high-temperature industrial components.
- Enhancing wear resistance and thermal stability of refractory products.
Boron carbide powder's neutron absorption properties are exploited in:
- Control rods and neutron shielding materials in nuclear reactors.
- Radiation protection in medical and research facilities.
- Its ability to absorb neutrons without forming long-lived radionuclides is critical for safety.
- Used in manufacturing cutting tools and dies for machining hard metals and alloys.
- Boron carbide powder enhances wear resistance and tool life.
- Applied in wire drawing dies, grinding wheels, and polishing sticks.
- Boron carbide's semiconductor properties enable applications in high-temperature electronics.
- Used in thermoelectric devices and sensors.
- Powder form is used in chemical vapor deposition (CVD) and physical vapor deposition (PVD) processes to create thin films.
- Incorporated into metal matrix composites to improve hardness and wear resistance.
- Used as an additive in brake linings and other friction materials.
- Boron carbide powder can serve as a boron source in producing other borides like TiB₂ and ZrB₂.
- Exceptional hardness: Provides superior wear resistance and abrasive performance.
- Lightweight: Low density allows for lightweight armor and components.
- Chemical inertness: Resistant to corrosion and oxidation.
- Thermal stability: Maintains properties at high temperatures.
- Neutron absorption: Ideal for nuclear applications.
- Versatility: Suitable for a wide range of industrial, military, and scientific uses.
- Brittleness: Like many ceramics, boron carbide is brittle and can fracture under impact.
- Manufacturing complexity: High-temperature synthesis and sintering are energy-intensive and costly.
- Machining difficulty: Its hardness makes shaping and machining challenging.
- Cost: Raw material and processing costs are relatively high.
- Development of nanostructured boron carbide powders with enhanced properties.
- Advanced sintering techniques to improve toughness and reduce defects.
- Integration into novel composite materials for aerospace and defense.
- Exploration of boron carbide in energy storage and catalysis.
Boron carbide powder is a uniquely valuable material characterized by its extreme hardness, low density, chemical inertness, and thermal stability. These properties enable its use in a wide range of critical applications, including abrasives, ballistic armor, refractory materials, nuclear shielding, cutting tools, and electronics. Despite challenges related to brittleness and manufacturing costs, ongoing research and technological advancements continue to expand its potential. Understanding the properties and uses of boron carbide powder is essential for industries seeking high-performance materials.
Boron carbide powder is used in abrasives, ballistic armor, refractory materials, nuclear control rods, cutting tools, electronics, and composite materials.
Its hardness arises from a unique crystal structure of boron icosahedra and carbon-boron-carbon chains with strong covalent bonds.
Yes, it is used as a neutron absorber in control rods and shielding due to its high neutron absorption cross-section.
It is produced by carbothermal or magnesiothermal reduction of boron oxide with carbon at high temperatures, followed by milling and purification.
It is brittle, costly to produce, and difficult to machine, but research aims to improve these aspects.
