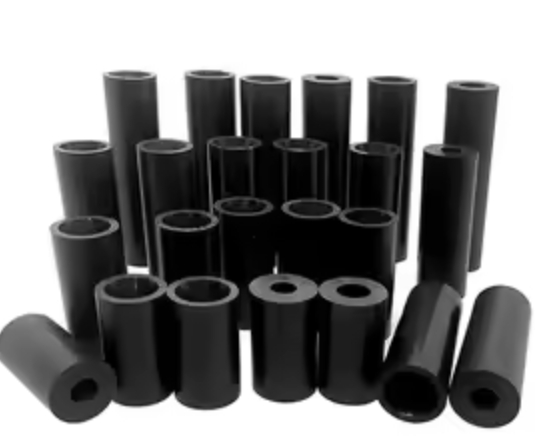

Boron carbide nozzles are among the most durable and efficient components used in abrasive blasting and other industrial applications. Known for their exceptional hardness, wear resistance, and ability to withstand harsh operating conditions, boron carbide nozzles have become the preferred choice in many industries where high-performance blasting is required. This article explores the top applications of boron carbide nozzles, highlighting why they are indispensable in various sectors, their advantages over other nozzle materials, and practical insights into their use. Richly illustrated with images and videos, this comprehensive guide will help you understand the critical role of boron carbide nozzles in modern industry.

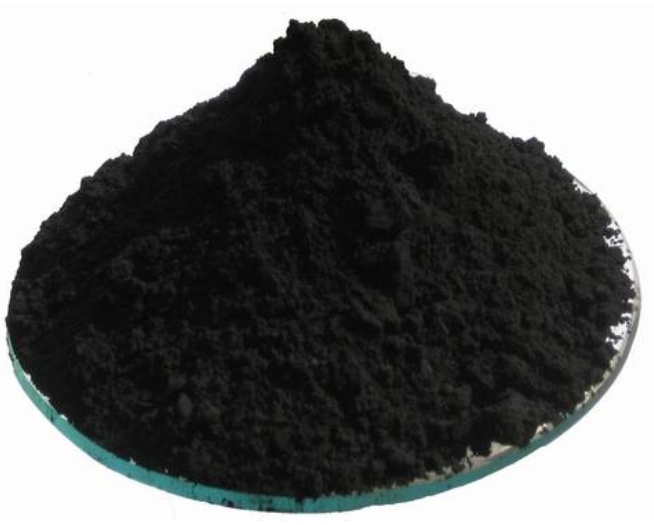

Boron carbide (B₄C) is one of the hardest materials known, with a Mohs hardness of approximately 9.3, second only to diamond and cubic boron nitride. Its combination of low density, high hardness, chemical inertness, and thermal stability makes it ideal for use in abrasive blasting nozzles.
- Extreme hardness ensures minimal wear even under aggressive blasting conditions.
- High abrasion resistance extends nozzle life significantly compared to tungsten carbide or ceramic nozzles.
- Thermal stability allows use in high-temperature environments.
- Chemical inertness prevents corrosion and degradation.
- Lightweight compared to metals, reducing operator fatigue in handheld applications.
Boron carbide nozzles are extensively used in abrasive blasting machines to propel abrasive media at high velocity for surface cleaning, paint removal, rust stripping, and surface preparation.
- Ideal for blasting with aggressive abrasives such as aluminum oxide, silicon carbide, and corundum.
- Used in stationary and portable blasting operations.
- Provide consistent media flow and high blasting efficiency due to optimized Venturi designs.
Shot peening is a process used to improve the fatigue strength of metal components by bombarding them with small spherical media. Boron carbide nozzles are preferred because:
- They withstand the high velocity and impact forces of shot particles.
- They maintain dimensional stability and flow consistency over extended use.
- Used in aerospace, automotive, and heavy machinery industries for critical component treatment.
Boron carbide nozzles are also used in high-pressure water jet cutting and wet abrasive blasting:
- Their wear resistance extends nozzle life under erosive water and abrasive slurry conditions.
- Enable precise cutting and cleaning of metals, stone, and composites.
- Common in manufacturing, construction, and mining industries.
In industries like glass engraving, dental tooling, and precision machining, boron carbide nozzles are used for:
- Controlled abrasive blasting to create fine surface textures.
- Maintaining nozzle sharpness and consistency for high-precision work.
- Enhancing the quality of decorative and functional finishes.
Boron carbide's neutron absorption capability makes it valuable in nuclear power plants:
- Nozzles made from boron carbide are used in abrasive blasting for reactor component maintenance.
- Its chemical inertness and thermal stability suit the demanding nuclear environment.
- Boron carbide is also used in control rods and radiation shielding.
| Property | Boron Carbide Nozzles | Tungsten Carbide Nozzles | Silicon Carbide Nozzles |
|---|---|---|---|
| Hardness (Mohs) | ~9.3 | ~8.5 | ~9.0 |
| Wear Resistance | Very High | High | High |
| Thermal Stability | High | Moderate | High |
| Chemical Resistance | Excellent | Good | Good |
| Lifespan | 5-10x Tungsten Carbide | Standard | Slightly Less than BC |
| Cost | Higher | Moderate | Moderate |
Modern boron carbide nozzles incorporate design elements such as:
- Multi-layer construction: Boron carbide liner protected by natural rubber or metal jackets for impact resistance.
- Venturi shaping: Optimizes abrasive acceleration for maximum blasting efficiency.
- Variety of sizes: Nozzle diameters from 5mm to 12mm to suit different blasting needs.
- Regular inspection for wear and damage.
- Use compatible abrasives to minimize unnecessary wear.
- Clean nozzles after use to prevent clogging.
- Store in dry, protected environments to prevent damage.
Boron carbide nozzles are the best choice for abrasive blasting and related applications requiring extreme wear resistance, durability, and precision. Their superior hardness and chemical stability allow them to outperform tungsten carbide and silicon carbide nozzles, especially when blasting aggressive media like aluminum oxide or silicon carbide. From industrial sandblasting and shot peening to water jet cutting and nuclear maintenance, boron carbide nozzles deliver unmatched performance and cost-effectiveness over their lifespan.
Boron carbide nozzles have higher hardness and wear resistance, often lasting 5 to 10 times longer than tungsten carbide nozzles.
They are especially suited for aggressive abrasives like aluminum oxide and silicon carbide but can be used with most abrasive types.
Venturi nozzles accelerate abrasive particles more efficiently, increasing blasting speed and surface preparation quality.
Yes, their chemical stability and wear resistance make them ideal for wet abrasive and water jet applications.
Industries such as aerospace, automotive, shipbuilding, nuclear power, and precision manufacturing rely heavily on boron carbide nozzles.
