Boron carbide control rods are critical components in nuclear reactors, playing a vital role in controlling the fission process by absorbing neutrons. These rods are made from boron carbide (B₄C), a ceramic material renowned for its exceptional neutron absorption capability, mechanical strength, and thermal stability. This article provides an extensive overview of boron carbide control rods, discussing their function, material properties, design considerations, applications in various reactor types, and the challenges associated with their use. Rich in technical detail and practical insights, this guide explains why boron carbide control rods are indispensable in modern nuclear technology.
In nuclear reactors, maintaining a controlled and stable chain reaction is essential for safe and efficient energy production. Control rods are inserted or withdrawn from the reactor core to regulate the neutron flux, thereby controlling the rate of fission. Boron carbide control rods are among the most effective neutron absorbers used in this capacity. Their unique properties make them suitable for demanding reactor environments, where they must withstand intense radiation, high temperatures, and mechanical stresses.

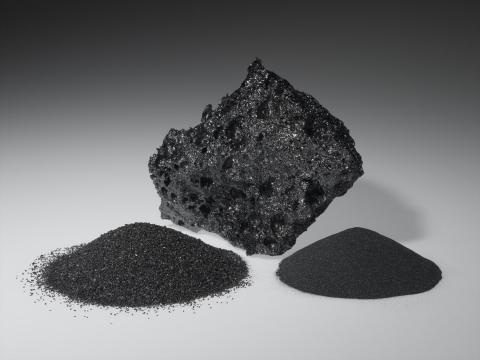

Boron carbide is a ceramic compound composed of boron and carbon atoms, commonly represented by the formula B₄C. It is one of the hardest materials known, with a Mohs hardness near 9.5, surpassed only by diamond and cubic boron nitride. Key properties include:
- High neutron absorption cross-section: Boron-10 isotope efficiently captures neutrons.
- Low density: Lightweight compared to metallic neutron absorbers.
- High melting point: Around 2450 °C, suitable for high-temperature environments.
- Chemical inertness: Resistant to corrosion and chemical attack.
- Mechanical strength: Durable under irradiation and thermal cycling.
These characteristics make boron carbide an ideal material for neutron absorption in nuclear reactors.
Control rods serve to regulate the fission chain reaction by absorbing neutrons that would otherwise sustain or accelerate the reaction. Their functions include:
- Reactivity control: Adjusting the reactor power output by controlling neutron population.
- Shutdown capability: Rapidly halting the chain reaction in emergency situations (scram).
- Flux shaping: Ensuring uniform neutron distribution for efficient fuel utilization.
Materials used in control rods must have high neutron absorption, mechanical integrity, and compatibility with reactor conditions.
Boron carbide is favored for control rods due to several advantages:
- High neutron absorption: Boron-10 isotope has a large neutron capture cross-section, effectively reducing neutron flux.
- No long-lived radioactive byproducts: Boron carbide absorbs neutrons without producing significant residual radioactivity.
- Mechanical robustness: It withstands swelling and microfracturing under neutron irradiation better than elemental boron.
- Thermal stability: Maintains structural integrity at reactor operating temperatures.
- Cost-effectiveness: Compared to other absorbers like hafnium or silver-indium-cadmium alloys, boron carbide is more economical and abundant.

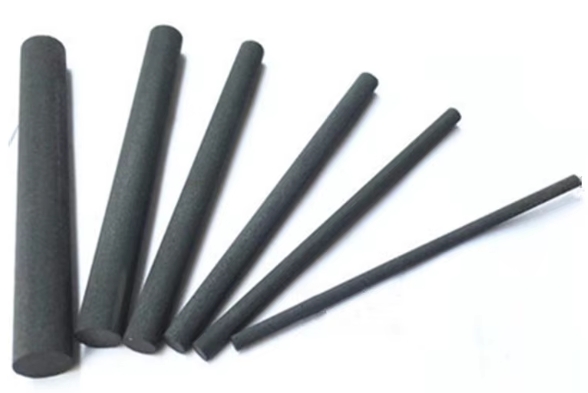

Boron carbide control rods typically consist of:
- Boron carbide pellets or pins: High-density B₄C powder is pressed and sintered into pellets or pins.
- Cladding: Stainless steel or other corrosion-resistant alloys encase the pellets to provide mechanical support and prevent contamination.
- Drive mechanisms: Allow insertion or withdrawal of rods from the reactor core.
Advanced designs include hot isostatic pressing to increase pellet density and reduce swelling, and the use of multiple pins per rod to optimize neutron absorption and mechanical behavior.
Boron carbide control rods are used in:
- Pressurized Water Reactors (PWRs): The most common reactor type globally, where B₄C rods regulate reactivity.
- Boiling Water Reactors (BWRs): Boron carbide is used in control rods and shutdown systems.
- Fast Neutron Reactors: Some designs incorporate boron carbide for neutron absorption.
- Research Reactors: Used for precise control and safety.
Each reactor type requires specific rod designs tailored to neutron energy spectra, core geometry, and operational parameters.
The control rods operate by:
- Absorbing neutrons: Boron-10 captures thermal neutrons, converting them into lithium and alpha particles, thus removing neutrons from the chain reaction.
- Adjusting position: Inserting rods deeper into the core reduces neutron flux and power; withdrawing them increases reactivity.
- Managing heat: Heat generated by neutron capture is dissipated through cladding and coolant flow.
The rods must maintain dimensional stability and mechanical integrity throughout irradiation and thermal cycling.
Despite their advantages, boron carbide control rods face challenges:
- Swelling and helium generation: Neutron capture produces helium gas, leading to swelling and potential pellet cracking.
- Irradiation-assisted stress corrosion cracking (IASCC): Cladding materials can degrade under neutron exposure and corrosive environments.
- Mechanical wear: Rods experience friction and mechanical stresses during insertion and withdrawal.
- Replacement and disposal: Spent rods require careful handling due to radioactivity and material degradation.
Ongoing research aims to mitigate these issues through improved materials and designs.
Recent developments include:
- Hybrid absorbers: Combining boron carbide with hafnium diboride or other materials to enhance performance.
- High-density pellets: Hot isostatic pressing techniques increase pellet density and reduce swelling.
- Improved cladding materials: New alloys resistant to IASCC and corrosion.
- Enhanced manufacturing: Precision fabrication for better dimensional control and reliability.
These innovations extend the operational life and safety of boron carbide control rods.
Boron carbide control rods are essential components in nuclear reactors, providing efficient neutron absorption to regulate and safely shut down fission reactions. Their unique combination of high neutron capture cross-section, mechanical strength, thermal stability, and cost-effectiveness makes them the preferred choice in many reactor designs worldwide. While challenges such as swelling and material degradation exist, ongoing advancements in materials science and engineering continue to enhance their performance and reliability. Understanding the role and functionality of boron carbide control rods is crucial for appreciating their significance in nuclear energy production and safety.
They are used in nuclear reactors to absorb neutrons, control the fission chain reaction, and enable safe shutdowns.
Due to its high neutron absorption, mechanical strength, thermal stability, and cost-effectiveness.
Boron-10 in boron carbide captures neutrons and converts them into lithium and alpha particles, removing neutrons from the chain reaction.
Swelling from helium generation, cladding corrosion, mechanical wear, and handling of spent rods.
They are widely used in pressurized water reactors, boiling water reactors, and some fast neutron reactors, but not all reactor types.
