Hardness is a critical material property that defines a substance's resistance to localized plastic deformation, such as indentation or scratching. When comparing materials for industrial applications, understanding their hardness is essential for selecting the right one. Among the hardest materials known, diamond and silicon carbide stand out. Diamond, renowned for its exceptional hardness, has long been the benchmark. However, silicon carbide, with its unique properties, presents a compelling alternative in various applications. This article delves into a detailed comparison of the hardness of silicon carbide and diamond, exploring their properties, applications, and the factors that influence their performance.
Hardness, in materials science, refers to the ability of a material to resist deformation caused by an external force. This property is crucial in determining a material's suitability for specific applications, particularly those involving wear, abrasion, and cutting. Hardness is typically measured using standardized tests, such as the Mohs scale and Vickers hardness test[1].
1. Mohs Hardness Scale:
The Mohs scale is a qualitative ordinal scale that characterizes the scratch resistance of minerals through the ability of a harder material to scratch a softer material. Developed in 1812 by German mineralogist Friedrich Mohs, this scale ranges from 1 (talc) to 10 (diamond). A material's Mohs hardness is determined by observing whether it can scratch a material of known hardness or be scratched by it[1].
2. Vickers Hardness Test:
The Vickers hardness test is a microhardness test that measures the resistance of a material to indentation. It uses a square-based pyramid-shaped diamond indenter to create an indentation on the material's surface. The Vickers hardness number (HV) is calculated by dividing the applied load by the surface area of the indentation. This test is particularly useful for evaluating the hardness of small or thin samples and provides a more quantitative measure than the Mohs scale[1].
3. Rockwell Hardness Test:
The Rockwell hardness test measures the depth of indentation created by an indenter under a specific load. Different Rockwell scales (e.g., Rockwell A, B, C) use different indenters and loads to accommodate various materials. The hardness value is directly read from the testing machine, making it a quick and convenient method for assessing hardness[1].
4. Knoop Hardness Test:
The Knoop hardness test is another microhardness test similar to the Vickers test but uses a rhombic-shaped diamond indenter. It is particularly suitable for measuring the hardness of brittle materials and thin coatings. The Knoop hardness number (HK) is calculated based on the applied load and the length of the indentation[1].
Diamond is an allotrope of carbon in which the carbon atoms are arranged in a crystal structure called diamond cubic. This structure is characterized by strong covalent bonds between each carbon atom and four neighboring carbon atoms in a tetrahedral arrangement. This robust, three-dimensional network of strong covalent bonds is what gives diamond its exceptional hardness and other remarkable properties[5].
1. Extreme Hardness:
Diamond is the hardest naturally occurring material known, with a Mohs hardness of 10 and a Vickers hardness of approximately 10,000 HV[1]. This extreme hardness makes diamond highly resistant to scratching and abrasion, making it ideal for cutting tools, grinding wheels, and wear-resistant coatings[5].
2. High Thermal Conductivity:
Diamond has an exceptionally high thermal conductivity, about five times greater than copper. This property allows diamond to dissipate heat quickly, making it valuable in applications where heat management is crucial, such as in high-power electronics and heat sinks[4].
3. Electrical Insulator:
Pure diamond is an excellent electrical insulator due to the strong covalent bonds that hold the carbon atoms together, preventing the free flow of electrons. However, diamond can be doped with impurities to make it semiconducting[4].
4. Chemical Inertness:
Diamond is chemically inert and resistant to most acids and alkalis. This property makes it suitable for use in harsh chemical environments and laboratory equipment[4].
5. Optical Properties:
Diamond has a high refractive index and strong dispersion, giving it its characteristic brilliance and fire when cut and polished. These optical properties make diamond highly valued in jewelry[7].
1. Cutting Tools:
Diamond-tipped cutting tools are used in a wide range of industries, including manufacturing, construction, and mining. They can cut through hard materials such as stone, concrete, and metal with high precision and efficiency[5].
2. Abrasives:
Diamond abrasives are used in grinding, polishing, and lapping operations. Their extreme hardness allows them to remove material quickly and produce smooth, precise surfaces[5].
3. Jewelry:
Diamond's brilliance, hardness, and rarity make it highly prized in jewelry. Diamonds are cut and polished into various shapes and set in rings, necklaces, earrings, and other adornments[7].
4. Electronics:
Diamond's high thermal conductivity and electrical insulation properties make it useful in electronic devices. It can be used as a heat sink for high-power components and as a substrate for high-frequency transistors[4].
5. Medical Applications:
Diamond is used in medical applications such as surgical blades and dental drills due to its hardness and biocompatibility. Diamond coatings can also be applied to medical implants to improve their wear resistance and reduce the risk of infection[4].

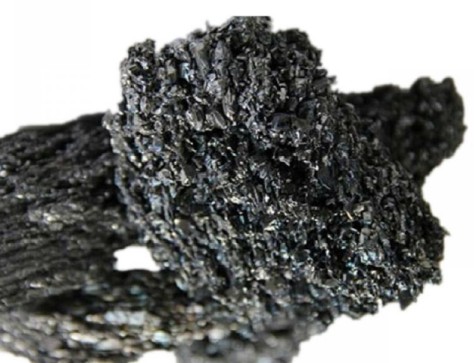

Silicon carbide (SiC), also known as carborundum, is a compound of silicon and carbon with the chemical formula SiC. It is a semiconductor material with excellent hardness, high thermal conductivity, and chemical inertness[4]. Silicon carbide exists in numerous crystalline forms, known as polytypes, each with slightly different physical properties. The most common polytypes include alpha-SiC (α-SiC) and beta-SiC (β-SiC)[4].
1. High Hardness:
Silicon carbide is exceptionally hard, ranking just below diamond on the Mohs scale, with a hardness of 9 to 9.5[1]. Its Vickers hardness ranges from 2,400 to 2,800 HV, making it suitable for abrasive applications and wear-resistant coatings[1].
2. Thermal Conductivity:
SiC has high thermal conductivity, although not as high as diamond. This property allows it to dissipate heat efficiently, making it useful in high-temperature and high-power applications[4].
3. Semiconductor Properties:
Silicon carbide is a wide-bandgap semiconductor, meaning it can operate at higher voltages, frequencies, and temperatures than traditional silicon semiconductors. This makes it ideal for power electronics, high-frequency devices, and LEDs[8].
4. Chemical Inertness:
SiC is chemically inert and resistant to most acids, alkalis, and high temperatures. This property makes it suitable for use in harsh chemical environments and high-temperature applications[4].
5. High-Temperature Stability:
Silicon carbide maintains its strength and stability at high temperatures, making it useful in high-temperature furnaces, heating elements, and aerospace components[4].
1. Abrasives:
Silicon carbide is widely used as an abrasive in grinding wheels, cutting tools, sandpaper, and polishing compounds. Its high hardness and sharp edges make it effective for removing material and creating smooth surfaces[3].
2. Refractories:
SiC is used in refractory linings for high-temperature furnaces and kilns due to its high melting point, thermal conductivity, and chemical inertness. It can withstand extreme temperatures and resist corrosion from molten metals and slags[4].
3. Semiconductors:
Silicon carbide is used in semiconductor devices such as diodes, transistors, and power modules. Its wide-bandgap properties enable it to operate at higher voltages, frequencies, and temperatures than silicon-based devices, making it suitable for power electronics, electric vehicles, and renewable energy systems[8].
4. Cutting Tools:
SiC is used in cutting tools for machining non-ferrous metals, ceramics, and composites. Its hardness and wear resistance make it effective for cutting and grinding these materials[3].
5. Automotive Industry:
Silicon carbide is used in automotive components such as brake rotors, clutches, and engine parts due to its high hardness, thermal conductivity, and wear resistance. It can improve the performance and durability of these components[4].
Feature | Silicon Carbide (SiC) | Diamond |
---|---|---|
Hardness (Mohs) | 9-9.5 | 10 |
Hardness (Vickers) | 2,400-2,800 HV | Approximately 10,000 HV |
Thermal Conductivity | High | Exceptionally High |
Electrical Properties | Semiconductor | Insulator (can be doped as semiconductor) |
Chemical Inertness | Excellent | Excellent |
Cost | Lower | Higher |
Applications | Abrasives, Refractories, Semiconductors | Cutting Tools, Abrasives, Jewelry |
Diamond is the hardest known naturally occurring material, with a Mohs hardness of 10 and a Vickers hardness of approximately 10,000 HV[1]. Silicon carbide, while very hard, ranks slightly below diamond on the Mohs scale, with a hardness of 9 to 9.5, and a Vickers hardness of 2,400 to 2,800 HV[1]. Therefore, diamond is significantly harder than silicon carbide, making it more suitable for applications requiring extreme abrasion resistance.
Diamond has an exceptionally high thermal conductivity, surpassing that of silicon carbide. This property is crucial in applications where efficient heat dissipation is required, such as in high-power electronics[4]. Silicon carbide also possesses high thermal conductivity, making it useful in high-temperature applications, but it is not as effective as diamond in dissipating heat[4].
Diamond is an electrical insulator, but it can be doped to become a semiconductor. Silicon carbide, on the other hand, is a wide-bandgap semiconductor with excellent properties for high-power, high-frequency, and high-temperature applications[8]. This difference in electrical properties makes silicon carbide more suitable for semiconductor devices and power electronics[8].
Both diamond and silicon carbide are chemically inert and resistant to most acids, alkalis, and high temperatures. This property makes them suitable for use in harsh chemical environments and high-temperature applications[4].
Silicon carbide is significantly less expensive than diamond. This cost advantage makes silicon carbide a more economical choice for applications where extreme hardness is not essential, such as abrasives, refractories, and some cutting tools[1].
Diamond is primarily used in applications that require extreme hardness and abrasion resistance, such as cutting tools, grinding wheels, and high-end jewelry[5]. Silicon carbide is used in a wider range of applications, including abrasives, refractories, semiconductors, and automotive components[4]. Its versatility and lower cost make it a practical choice for many industrial applications[1].
Several factors can influence the hardness of silicon carbide and diamond, including crystal structure, purity, grain size, and temperature.
The crystal structure of a material significantly affects its hardness. Diamond's cubic crystal structure, with strong covalent bonds in a tetrahedral arrangement, gives it exceptional hardness[5]. Silicon carbide exists in multiple polytypes, each with slightly different physical properties. The hardness of silicon carbide can vary depending on the specific polytype and its crystal structure[4].
Impurities in a material can affect its hardness. In diamond, impurities such as nitrogen can create defects in the crystal lattice, reducing its hardness[5]. Similarly, impurities in silicon carbide can disrupt its crystal structure and reduce its hardness[4]. High-purity materials generally exhibit higher hardness values.
In polycrystalline materials like silicon carbide, grain size can influence hardness. Materials with smaller grain sizes tend to be harder due to the increased number of grain boundaries, which impede dislocation motion and plastic deformation[4].
Temperature can also affect the hardness of materials. Generally, hardness decreases with increasing temperature as the material becomes more ductile. However, both diamond and silicon carbide maintain their hardness at high temperatures, making them suitable for high-temperature applications[4].
In summary, while diamond is the hardest material known, silicon carbide offers an excellent alternative for many applications. Diamond's exceptional hardness, high thermal conductivity, and chemical inertness make it ideal for cutting tools, abrasives, and high-end jewelry[5]. Silicon carbide, with its high hardness, thermal conductivity, semiconductor properties, and lower cost, is well-suited for abrasives, refractories, semiconductors, and automotive components[4]. The choice between silicon carbide and diamond depends on the specific requirements of the application, considering factors such as hardness, thermal properties, electrical properties, cost, and environmental conditions[1].
Diamond's hardness arises from its crystal structure. Each carbon atom is covalently bonded to four other carbon atoms in a tetrahedral arrangement. This forms a strong, three-dimensional network that resists deformation.
Silicon carbide is rare in nature, occurring as the mineral moissanite. However, most silicon carbide used in industrial applications is synthetic, produced through the Acheson process.
No, silicon carbide cannot scratch diamond. Diamond is the hardest material known, with a Mohs hardness of 10, while silicon carbide has a Mohs hardness of 9 to 9.5.
The main advantages of using silicon carbide over diamond are its lower cost and its semiconductor properties. Silicon carbide is more economical for applications where extreme hardness is not essential and is suitable for high-power, high-frequency, and high-temperature semiconductor devices.
Generally, the hardness of most materials decreases with increasing temperature. However, both diamond and silicon carbide maintain their hardness at high temperatures, making them suitable for high-temperature applications.
