Silicon carbide (SiC) is a fascinating material that has gained significant attention in various industries due to its exceptional properties. But a common question arises: Is silicon carbide ceramic? This article provides a comprehensive exploration of silicon carbide, its classification as a ceramic, its properties, manufacturing processes, applications, advantages, and limitations. We will also include numerous images and videos to illustrate key points, and conclude with a detailed FAQ section to answer common queries.
Silicon carbide, also known as carborundum, is a chemical compound composed of silicon and carbon atoms bonded together in a crystal lattice. It naturally occurs as the rare mineral moissanite but is predominantly produced synthetically for industrial use. Since its discovery in the late 19th century, silicon carbide has been widely used as an abrasive and has evolved into a high-performance material in ceramics and electronics.
Ceramics are generally inorganic, non-metallic solids prepared by heating and subsequent cooling. They are characterized by their hardness, brittleness, high melting points, and resistance to chemical and thermal degradation. Ceramics can be oxides (like alumina), non-oxides (like silicon carbide), or composites.
Silicon carbide is classified as a non-oxide ceramic. Unlike oxide ceramics, which are based on oxygen compounds, SiC is a covalently bonded compound of silicon and carbon. It exhibits many typical ceramic properties:
- High hardness (Mohs hardness ~9.5, close to diamond)
- High melting point (~2700°C)
- Excellent chemical inertness
- High thermal conductivity and low thermal expansion
- Brittleness and low ductility
These properties firmly place silicon carbide within the ceramic family, specifically as a technical or advanced ceramic used in demanding industrial applications.

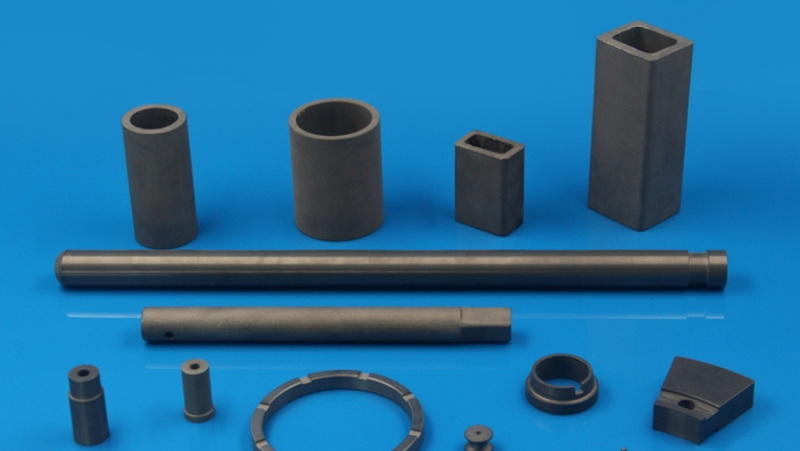

Silicon carbide ceramics are produced by sintering or reaction bonding processes that consolidate SiC powders into dense, hard components. The main manufacturing methods include:
- Sintered Silicon Carbide (SSiC): SiC powder is pressed and sintered at high temperatures, often with additives to aid densification.
- Reaction Bonded Silicon Carbide (RBSiC): A porous carbon preform is infiltrated with molten silicon, reacting to form SiC. This method allows near-net shaping with minimal shrinkage.
- Silicon Infiltrated Silicon Carbide (SiSiC): Similar to RBSiC but with additional silicon infiltration to improve density and mechanical properties.
These processes produce ceramics with excellent mechanical strength, thermal stability, and chemical resistance.
- Hardness: SiC is one of the hardest ceramics, making it highly wear-resistant.
- Strength: High compressive and flexural strength, suitable for structural applications.
- Brittleness: Like most ceramics, SiC is brittle and prone to fracture under impact.
- High melting point: Around 2700°C, enabling use in extreme heat environments.
- Thermal conductivity: Approximately 120 W/m·K, excellent for heat dissipation.
- Low thermal expansion: Minimizes thermal shock and cracking.
- Corrosion resistance: Resistant to acids, alkalis, and molten metals up to 1600°C.
- Oxidation resistance: Forms a protective silicon oxide layer at high temperatures.
- Semiconducting behavior: SiC is a wide bandgap semiconductor, useful in high-power electronics.
Silicon carbide ceramics are used in a wide range of industries due to their unique combination of properties:

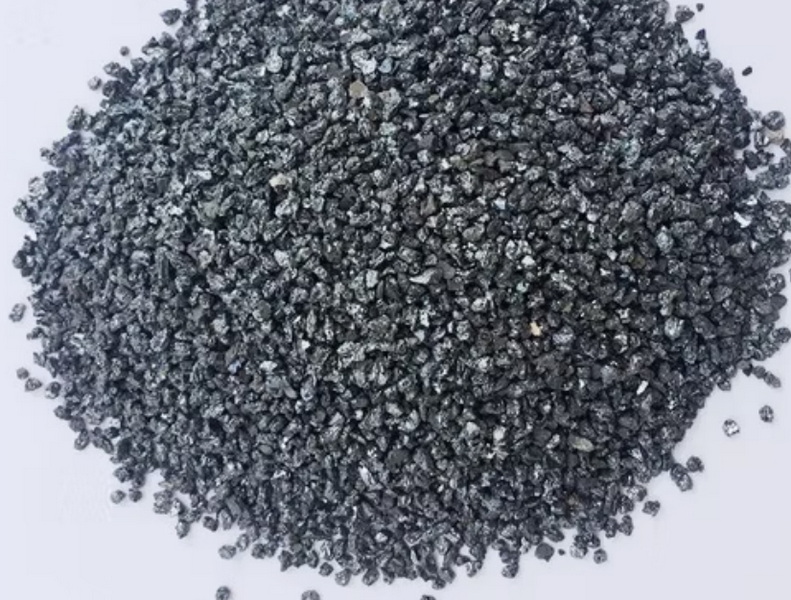

- Abrasives: Grinding wheels, sandpapers, and cutting tools.
- Refractories: Kiln furniture, crucibles, and furnace linings.
- Mechanical components: Seals, bearings, and pump parts in corrosive environments.
- Wear-resistant parts: Nozzles, valve components, and armor plates.
- Semiconductor devices: High-temperature, high-voltage electronics, LEDs, and power modules.
- Heat sinks: Efficient thermal management in electronic devices.
- Brake discs and clutches: High wear resistance and thermal stability.
- Heat shields: Protection against extreme temperatures.
- Optical fibers: Protective components due to thermal stability and low expansion.
- Energy: Components in solar power and electric vehicles.
- Exceptional hardness and wear resistance
- High-temperature stability and strength retention
- Excellent chemical and corrosion resistance
- Superior thermal conductivity and low thermal expansion
- Semiconducting properties for advanced electronics
- Ability to be formed into complex shapes via sintering
- Brittleness: Susceptible to fracture under impact or thermal shock.
- High manufacturing cost: Complex sintering and processing increase expenses.
- Poor machinability: Difficult to machine into intricate shapes without specialized equipment.
- Thermal shock sensitivity: Requires careful temperature control in some applications.
Compared to traditional oxide ceramics like alumina or zirconia, silicon carbide offers:
- Higher hardness and wear resistance
- Better thermal conductivity
- Superior chemical resistance
- Semiconducting capabilities (unique among ceramics)
However, it is more brittle and expensive, limiting its use to applications where its superior properties justify the cost.
Silicon carbide is unequivocally a ceramic—specifically, a non-oxide advanced ceramic with outstanding mechanical, thermal, chemical, and electrical properties. Its unique combination of hardness, thermal stability, and chemical inertness makes it indispensable in many high-performance industrial and electronic applications. While it has limitations such as brittleness and cost, ongoing advances in manufacturing and composite materials continue to expand its usability.
Yes, silicon carbide is classified as a non-oxide ceramic due to its inorganic, non-metallic nature and ceramic-like properties.
They offer exceptional hardness, high-temperature stability, excellent chemical resistance, and good thermal and electrical conductivity.
Primarily through sintering and reaction bonding processes that consolidate SiC powders into dense, hard components.
Industries such as abrasives, electronics, automotive, aerospace, chemical processing, and energy rely on SiC ceramics.
They are brittle, expensive to produce, and difficult to machine, requiring careful handling and processing.
