● Introduction to Silicon Carbide
>> Properties of Silicon Carbide
● Understanding Brittleness in Silicon Carbide
>> Factors Contributing to Brittleness
● Applications Affected by Brittleness
>> Electronics
● Research on Brittle-to-Ductile Transition
>> Molecular Dynamics Simulations
>>> Key Findings:
● Machining and Processing Challenges
>> Advanced Machining Techniques
● Future Directions in Research
● FAQ
>> 1. What causes silicon carbide's brittleness?
>> 2. At what temperature does silicon carbide become ductile?
>> 3. How does the presence of flaws affect silicon carbide?
>> 4. What are common applications for silicon carbide?
>> 5. Can silicon carbide be processed using traditional machining methods?

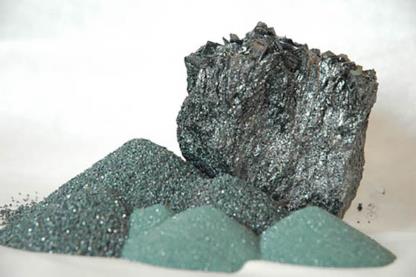

Silicon carbide (SiC) is a compound semiconductor known for its exceptional hardness, thermal stability, and electrical properties. It has gained significant attention in various industries, particularly in electronics and materials science. Despite its advantages, one of the primary concerns regarding SiC is its brittleness, which affects its application in structural components and electronic devices.
Silicon carbide exhibits a unique combination of properties that make it suitable for high-performance applications. These include:
- High Hardness: SiC is one of the hardest materials available, making it ideal for abrasive applications.
- Thermal Stability: It can withstand high temperatures (up to 2830 °C) without decomposing.
- Electrical Conductivity: SiC can be doped to create n-type or p-type semiconductors, making it valuable in electronics.
- Chemical Resistance: Its inert nature allows it to resist corrosion in harsh environments.
The brittleness of silicon carbide arises from its covalent bonding structure, which provides strength but limits plastic deformation. This characteristic is critical when considering its use in various applications.
Silicon carbide exists in several polytypes, with the most common being 4H-SiC and 6H-SiC. These polytypes differ in their crystal structures, which affect their electronic and mechanical properties. The crystal structure plays a significant role in determining the material's brittleness.
- 4H-SiC: This polytype has a hexagonal crystal structure and is widely used in power electronics due to its superior thermal conductivity and breakdown voltage.
- 6H-SiC: With a similar hexagonal structure but different stacking sequences, 6H-SiC also finds applications in high-temperature devices.
Understanding these structures helps researchers develop better processing techniques to mitigate brittleness.
Brittleness refers to a material's tendency to fracture or break without significant deformation. In the case of silicon carbide, this means that it can withstand high stress up to a point but will fail suddenly when that limit is exceeded.
1. Crystal Structure: SiC has a tetrahedral crystal structure that contributes to its hardness but also makes it susceptible to crack propagation.
2. Temperature Sensitivity: The brittle-to-ductile transition temperature (BDTT) for SiC is around 1050 °C. Below this temperature, SiC behaves in a brittle manner.
3. Presence of Flaws: Microscopic flaws or impurities can significantly reduce the tensile strength of SiC, making it more prone to brittle failure.
The fracture behavior of silicon carbide can be classified into two main types:
- Transgranular Fracture: This occurs when cracks propagate through the grains of the material. It is often observed in brittle materials like SiC and leads to sudden failure.
- Intergranular Fracture: This type of fracture occurs along the grain boundaries. It can be influenced by environmental factors such as moisture or temperature changes.
Understanding these mechanisms is crucial for improving the material's toughness and reliability in applications.
In the semiconductor industry, silicon carbide is used for high-voltage and high-temperature applications due to its wide bandgap. However, its brittleness poses challenges during manufacturing and handling:
- Device Fabrication: The brittle nature makes SiC difficult to process using conventional methods designed for less brittle materials like silicon.
- Reliability Issues: Components made from SiC may experience failure under mechanical stress during operation.
Silicon carbide has revolutionized power electronics by enabling devices that operate at higher voltages, frequencies, and temperatures than traditional silicon-based devices. However, the brittleness can lead to issues during device assembly and integration into systems.
SiC's use in structural applications such as aerospace and automotive components is limited due to brittleness:
- Load-Bearing Structures: While SiC can withstand high loads, sudden impacts can lead to catastrophic failure.
- Wear Resistance: Despite its hardness, the brittleness limits its effectiveness in applications requiring both toughness and wear resistance.
In aerospace engineering, components made from silicon carbide are often subjected to extreme conditions such as high temperatures and mechanical stress. The brittleness of SiC can lead to failures that compromise safety and performance.
Recent studies have focused on understanding the conditions under which silicon carbide transitions from a brittle to a ductile state. This transition is crucial for expanding the material's applicability in various fields.
Research utilizing molecular dynamics simulations has shown that introducing voids or helium bubbles into SiC can alter its mechanical properties significantly. As pressure within these bubbles increases, the material may transition from brittle to ductile behavior at elevated temperatures.
- The presence of cavities can concentrate stress and initiate cracking.
- At higher temperatures (above 1050 °C), dislocation movements become more prevalent, allowing for ductile behavior.
This research opens new avenues for enhancing silicon carbide's toughness through controlled processing techniques.
Another area of research focuses on doping silicon carbide with other elements to improve its mechanical properties. For example:
- Nitrogen Doping: Adding nitrogen can enhance the material's toughness by altering the bonding characteristics within the crystal lattice.
- Boron Doping: Boron has been shown to increase fracture toughness while maintaining electrical conductivity.
These doping strategies aim to create a more versatile material suitable for various demanding applications.
Machining silicon carbide presents unique challenges due to its hardness and brittleness:
1. Cutting Techniques: Traditional cutting methods often result in fractures; specialized techniques such as grinding are preferred.
2. Tool Wear: Tools used for machining SiC wear out quickly due to the material's hardness.
3. Surface Finish: Achieving a smooth surface finish requires careful control of machining parameters.
To address these challenges, researchers are exploring advanced machining techniques such as:
- Laser Machining: Utilizing lasers for cutting SiC reduces mechanical stress on the material, minimizing fracture risk.
- Electrical Discharge Machining (EDM): This non-contact method allows for precise shaping of SiC without inducing significant stress.
These innovative techniques are crucial for improving production efficiency while maintaining product integrity.
As demand for silicon carbide continues to grow in various industries, ongoing research aims at overcoming its brittleness through innovative approaches:
1. Composite Materials: Combining SiC with other materials may enhance toughness while retaining desirable properties like thermal stability.
2. Nanoengineering: Manipulating SiC at the nanoscale could lead to breakthroughs that improve its mechanical performance significantly.
3. Sustainability Studies: Research into sustainable production methods for SiC could reduce environmental impact while meeting industrial needs.
By exploring these avenues, researchers hope to unlock new potential for silicon carbide across diverse applications.
Silicon carbide remains a material of great interest due to its exceptional properties; however, its brittleness poses significant challenges across various applications. Understanding the mechanisms behind its brittle behavior and exploring methods to enhance ductility are crucial for expanding its utility in advanced technologies.
Silicon carbide's brittleness is primarily due to its covalent bonding structure, which provides strength but limits plastic deformation.
The brittle-to-ductile transition temperature for silicon carbide is approximately 1050 °C.
Microscopic flaws or impurities can significantly reduce the tensile strength of silicon carbide, making it more prone to brittle failure.
Silicon carbide is commonly used in electronics for high-voltage devices and as an abrasive material due to its hardness.
Traditional machining methods often result in fractures; specialized techniques such as grinding are preferred for machining silicon carbide.
