Silicon carbide (SiC), also known as carborundum, is a compound of silicon and carbon with the chemical formula SiC. It is a network solid, also known as a covalent network solid, in which atoms are bonded by covalent bonds in a continuous network extending throughout the material. This unique structure imparts exceptional properties to silicon carbide, making it a highly sought-after material in various applications, particularly in electronics, abrasives, and ceramics.
In this article, we will explore the characteristics of silicon carbide as a network solid, its formation, properties, applications, and much more.
A network solid is a type of solid in which atoms are bonded together in an extensive three-dimensional network. Unlike ionic or molecular solids where discrete molecules or ions are present, network solids consist of an array of interconnected atoms. This structure leads to unique physical properties such as high melting points, hardness, and electrical conductivity.
1. High Melting Points: Due to the strong covalent bonds that hold the atoms together, network solids generally have high melting and boiling points.
2. Hardness: The extensive bonding throughout the structure makes these materials very hard and resistant to deformation.
3. Electrical Conductivity: Depending on the specific network solid, electrical conductivity can vary. Some network solids are insulators, while others can conduct electricity.
4. Brittleness: Despite their hardness, many network solids are brittle and can fracture under stress.

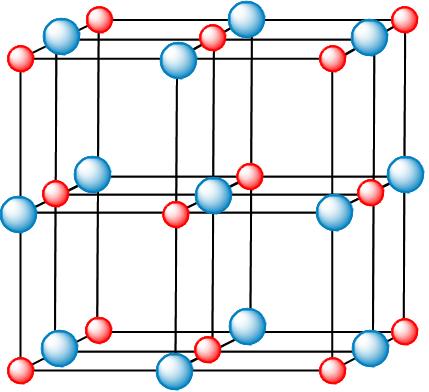

Silicon carbide can exist in various crystalline forms known as polytypes. The most common polytypes are 4H-SiC and 6H-SiC, named for their different stacking sequences of silicon and carbon atoms in the crystal lattice.
The crystal structure of SiC is characterized by tetrahedral coordination where each silicon atom is covalently bonded to four carbon atoms and vice versa. This tetrahedral arrangement contributes to its stability and strength.
Silicon carbide is typically produced through several methods:
1. Acheson Process: This involves heating a mixture of silica sand and carbon in an electric furnace at high temperatures (around 2000°C). The reaction produces silicon carbide along with carbon monoxide as a byproduct.
2. Chemical Vapor Deposition (CVD): In this method, gaseous precursors react at high temperatures to deposit thin films of silicon carbide on substrates.
3. Sintering: This process involves compacting SiC powder at high temperatures to form dense ceramic materials.
Silicon carbide exhibits remarkable mechanical properties:
- High Hardness: SiC ranks among the hardest materials available, second only to diamond.
- Wear Resistance: Its hardness contributes to excellent wear resistance, making it ideal for abrasive applications.
- Tensile Strength: SiC has high tensile strength which allows it to withstand significant stress without breaking.
- High Thermal Conductivity: SiC has excellent thermal conductivity, making it suitable for heat dissipation applications.
- Wide Bandgap: With a bandgap of approximately 3.0 eV, SiC can operate at higher temperatures than traditional semiconductors like silicon.
- Semiconductor Behavior: Silicon carbide behaves as a semiconductor with high breakdown voltage and thermal stability.
- High Electron Mobility: The electron mobility in SiC is significantly higher than that in silicon, allowing for faster electronic devices.
Silicon carbide is revolutionizing the electronics industry due to its superior properties:
- Power Devices: SiC is used in power transistors and diodes that operate at high voltages and temperatures.
- RF Devices: Its high-frequency capabilities make it ideal for radio frequency (RF) applications.
Due to its hardness, silicon carbide is widely used as an abrasive material:
- Grinding Wheels: SiC grinding wheels are used for polishing metals and ceramics.
- Sandpaper: It is commonly found in sandpaper for woodworking and metalworking applications.
Silicon carbide ceramics exhibit excellent mechanical strength and thermal stability:
- Structural Components: Used in automotive and aerospace components due to their lightweight yet strong nature.
- Kiln Furniture: SiC is utilized in kiln furniture for its ability to withstand high temperatures without deforming.
1. Efficiency: Devices made from SiC can operate more efficiently than those made from traditional materials due to lower energy losses.
2. Durability: Its resistance to wear and corrosion extends the lifespan of components made from this material.
3. High Temperature Performance: SiC devices can function effectively at elevated temperatures where other materials would fail.
Despite its numerous advantages, there are challenges associated with silicon carbide:
1. Cost of Production: The production processes for SiC can be expensive compared to traditional semiconductor materials like silicon.
2. Material Defects: The presence of defects within the crystal structure can affect the performance of SiC devices.
3. Limited Availability: While demand for SiC is increasing, availability can sometimes be limited due to production constraints.
In summary, silicon carbide is indeed a network solid characterized by its robust covalent bonding structure that imparts exceptional mechanical, thermal, and electrical properties. Its diverse applications across electronics, abrasives, and ceramics highlight its significance in modern technology. As research continues into overcoming production challenges and enhancing its properties further, silicon carbide will likely play an increasingly vital role in various industries.
Silicon carbide has a wider bandgap than traditional semiconductors like silicon, allowing it to operate at higher voltages and temperatures with greater efficiency.
Yes! Silicon carbide's thermal stability makes it suitable for high-temperature applications such as power electronics and aerospace components.
The most common polytypes of silicon carbide are 4H-SiC and 6H-SiC; these differ based on their crystal structures.
While the production process does have environmental impacts, silicon carbide's efficiency in energy applications can lead to reduced emissions over time when used in power devices.
Silicon carbide is extremely hard but not as hard as diamond; however, it offers better thermal conductivity than diamond which makes it valuable for specific applications.
