Boron carbide (B₄C), often referred to as "black diamond," is renowned for its extraordinary hardness, thermal stability, and resistance to wear. However, the question of whether it is the hardest compound requires a nuanced exploration of its properties, comparisons with other ultra-hard materials, and its role in modern industries. This article delves into the science behind boron carbide's hardness, its production methods, applications, and how it stacks up against other superhard materials like diamond and cubic boron nitride (cBN).

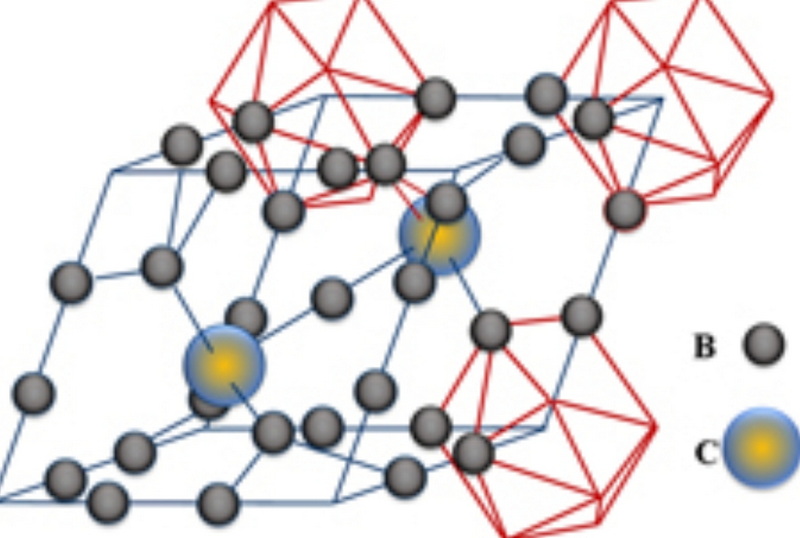

Boron carbide is a boron-carbon ceramic with a complex crystal structure, typically represented by the formula B₄C. Its structure consists of B₁₂ icosahedra interconnected by carbon-boron chains. This covalent bonding grants it exceptional mechanical and thermal properties:
| Property | Value/Description |
|---|---|
| Mohs Hardness | 9.3–9.75 |
| Vickers Hardness | 38 GPa |
| Density | 2.52 g/cm³ |
| Melting Point | 2,450°C |
| Neutron Absorption | High cross-section (~600 barns) |
Boron carbide ranks among the hardest materials known, but it is not the hardest. Here's how it compares:
- Mohs Hardness: 10 (the hardest natural material).
- Vickers Hardness: 115 GPa.
- Applications: Cutting tools, abrasives, jewelry.
- Mohs Hardness: ~9.8 (synthetic).
- Vickers Hardness: 50–70 GPa.
- Applications: High-speed machining of ferrous metals.
- Mohs Hardness: 9.3–9.75.
- Vickers Hardness: 30–38 GPa.
- Applications: Armor plating, neutron shielding.
- Tungsten Carbide (WC): Mohs 9–9.5.
- Silicon Carbide (SiC): Mohs 9.2–9.5.
While boron carbide is exceptionally hard, its covalent bonds and structural defects limit its peak hardness compared to diamond and cBN:
1. Covalent Bond Strength: Diamond's C-C bonds are stronger than B-C bonds.
2. Structural Defects: Boron carbide's carbon-deficient structure reduces uniformity.
3. Anisotropy: Hardness varies with crystallographic orientation.
Recent studies, such as laser-synthesized B₆C, have achieved Vickers hardness up to 52 GPa, rivaling cBN but still below diamond.
- Process: Heat boron oxide (B₂O₃) with carbon at >2,000°C:
2B2O3+7C→B4C+6CO
- Output: Powdered B₄C for industrial use.
- Process: Melt boron and carbon precursors with high-power lasers, followed by rapid cooling.
- Advantages: Produces ultra-hard B₆C (52 GPa hardness).
Table: Production Methods Comparison
| Method | Hardness (GPa) | Purity | Cost |
|---|---|---|---|
| Carbothermal | 30–38 | 95–98% | Low |
| Laser Synthesis | Up to 52 | 99.9% | High |
- Body Armor: Lightweight ceramic plates stop armor-piercing bullets.
- Vehicle Armor: Used in helicopters and tanks.
- Neutron Absorbers: Control rods in reactors due to high neutron capture cross-section.
- Shielding: Protects against radiation in nuclear waste storage.
- Grinding Media: Crushes and polishes hard materials like tungsten carbide.
- Wire Drawing Dies: Shapes metals with minimal wear.
- Rocket Nozzles: Withstands extreme temperatures and erosion.
1. Brittleness: Prone to fracture under impact (fracture toughness: ~3.5 MPa·m⊃1;/⊃2;).
2. High Production Costs: Laser methods are energy-intensive.
3. Machining Difficulty: Requires diamond tools for shaping.
1. Nanocomposites: Combining B₄C with graphene or carbon nanotubes to enhance toughness.
2. Additive Manufacturing: 3D printing complex shapes with B₄C powders.
3. Sustainable Synthesis: Reducing energy use in carbothermal processes.
Boron carbide is one of the hardest compounds, surpassed only by diamond and cubic boron nitride. Its unique combination of hardness, low density, and neutron absorption makes it indispensable in defense, nuclear, and industrial applications. While not the absolute hardest material, advancements in synthesis techniques, such as laser-derived B₆C, continue to push its performance limits.
No—diamond (Mohs 10) is harder than boron carbide (Mohs 9.3–9.75).
Cubic boron nitride (cBN) is harder than boron carbide but is a boron-nitrogen compound.
No, but it can scratch materials softer than Mohs 9.5, like tungsten carbide.
Its low density (2.52 g/cm³) and high hardness provide lightweight, bullet-resistant protection.
Brittleness and high production costs limit its use in some applications.
