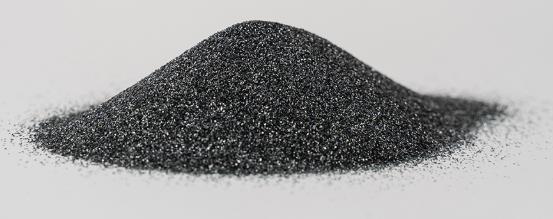

Boron carbide (B₄C) stands as one of the hardest known materials, rivaling cubic boron nitride and diamond. Its unique combination of lightweight properties, extreme hardness, and chemical inertness makes it indispensable in high-performance applications. A critical question surrounding this material is its bonding nature: Does it exhibit ionic or covalent characteristics? This article explores the structural and electronic properties of boron carbide to answer this question definitively.
Boron carbide is a non-oxide ceramic composed of boron and carbon atoms arranged in a rhombohedral crystal lattice. Its chemical formula is often simplified to B₄C, though its actual stoichiometry varies between B₁₂C₃ (most common) and B₁₃C₂, depending on synthesis conditions. First synthesized in the 19th century, it gained prominence during World War II for use in tank armor and bulletproof vests. Today, it is widely used in nuclear reactors, abrasives, and aerospace components.
The crystal structure consists of:
- B₁₂ icosahedra: Twelve boron atoms form a 20-faced polyhedron, one of the most stable atomic clusters in chemistry.
- C–B–C chains: Linear chains connecting the icosahedra, where a central boron atom is flanked by two carbon atoms.
This arrangement creates a rigid three-dimensional network, contributing to its exceptional mechanical strength.
The unit cell belongs to the R-3m space group, with lattice parameters _a_ = 5.60 Å and _c_ = 12.12 Å. The boron icosahedra occupy the vertices of the rhombohedron, while the C–B–C chains lie along the body diagonal.
Boron carbide is predominantly covalent, with minimal ionic character. Covalent bonds form when atoms share electrons to achieve stable electron configurations. In B₄C:
- Boron (Group 13) has three valence electrons.
- Carbon (Group 14) has four valence electrons.
The B–C bonds arise from overlapping _sp⊃2;_ hybrid orbitals, creating strong directional bonds. The B₁₂ icosahedra further stabilize the structure through delocalized electron density across their 12-atom clusters.
1. High Bond Strength: Covalent B–C bonds have bond energies of ~356 kJ/mol, far exceeding typical ionic interactions.
2. Short Bond Lengths: B–C distances in the chains measure 1.43–1.64 Å, consistent with covalent radii.
3. Electrical Conductivity: Unlike ionic crystals, boron carbide exhibits semiconducting behavior due to electron-deficient bonding.
The B₁₂ icosahedron is electron-deficient, requiring 26 electrons for full bonding but possessing only 36 valence electrons (12 boron atoms × 3 electrons). This deficit leads to:
- Three-Center Two-Electron Bonds: Electrons are shared among three atoms within the icosahedron.
- Inter-icosahedral Charge Transfer: Partial electron donation from carbon atoms stabilizes the boron clusters.
While ionic bonding involves complete electron transfer (e.g., NaCl), boron carbide shows no significant charge separation. Calculations using Born-Haber cycles and X-ray photoelectron spectroscopy (XPS) reveal:
- Electronegativity Difference: ΔEN (B–C) = 0.49 (Pauling scale), below the 1.7 threshold for ionic bonding.
- Mulliken Charge Analysis: Boron atoms carry a slight positive charge (+0.2 e), while carbon atoms are nearly neutral (-0.1 e).
Thus, any ionic contribution is negligible (<5%), confirming the dominance of covalent interactions.
| Property | Boron Carbide (B₄C) | Silicon Carbide (SiC) | Aluminum Oxide (Al₂O₃) |
|---|---|---|---|
| Bond Type | Covalent | Covalent | Ionic-Covalent |
| Hardness (GPa) | 38 | 33 | 20 |
| Density (g/cm³) | 2.52 | 3.21 | 3.97 |
| Melting Point (°C) | 2,450 | 2,730 | 2,072 |
Boron carbide's lower density and superior hardness compared to SiC and Al₂O₃ stem from its unique covalent network.
The industrial production involves heating boron oxide (B₂O₃) with carbon at 2,200–2,500°C:
B2O3+7C→2B4C+6CO
This method accounts for over 90% of global boron carbide production due to its cost-effectiveness. However, impurities like free carbon or residual boron oxide may require post-synthesis purification.
Advanced methods like laser-induced chemical vapor deposition (LCVD) enable the creation of nanostructured B₄C films for electronic applications. These films exhibit enhanced purity and tailored grain sizes (<50 nm), making them ideal for semiconductor devices.
Under pressures exceeding 5 GPa, boron carbide can form metastable phases with altered stoichiometries (e.g., B₅C). These phases are studied for their potential superconductivity but remain commercially unviable due to high production costs.

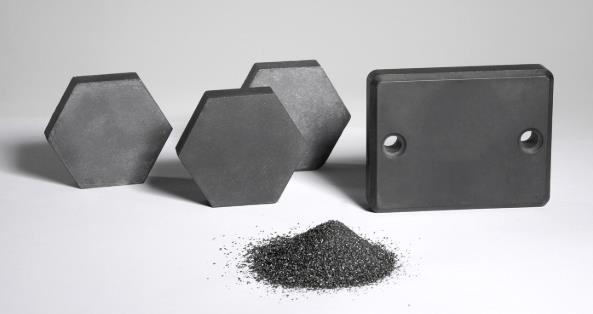

Boron carbide plates in military body armor stop 7.62 mm AP bullets at 50 meters due to:
- High Hugoniot Elastic Limit (HEL): 18–22 GPa, enabling elastic deformation under impact.
- Low density (2.52 g/cm³): Reduces weight by 30% compared to silicon carbide armor.
In nuclear reactors, boron carbide control rods capture thermal neutrons via the ⊃1;⁰B(n,α) reaction:
10B+n→7Li+α-particle
This reaction leverages boron's neutron absorption cross-section (3,840 barns), effectively controlling fission chain reactions.
B₄C grit (Mohs hardness 9.3) outperforms SiC and Al₂O₃ in precision grinding of tungsten carbide tools. Its wear resistance reduces grit consumption by 40% in industrial blasting operations.
Boron carbide's semiconducting properties (bandgap ~2.1 eV) make it suitable for thermoelectric sensors operating up to 2,000°C. These sensors monitor temperatures in jet engines and metallurgical furnaces.
- Brittleness: Covalent materials lack dislocation mobility, making B₄C prone to fracture under tensile stress. Composite materials (e.g., B₄C-SiC) are being developed to mitigate this issue.
- Oxidation Above 500°C: Forms B₂O₃ and CO₂, limiting high-temperature applications unless coated with oxidation-resistant layers like SiC.
- Cost of Synthesis: High-energy carbothermal processes account for 60–70% of production costs, driving research into energy-efficient alternatives.
3D-printed boron carbide components are emerging for custom-shaped armor and reactor parts. Laser powder bed fusion (LPBF) techniques achieve 98% density, rivaling traditional sintered products.
Introducing silicon (Si) or titanium (Ti) into the lattice improves fracture toughness by 25%. For example, B₄C-TiB₂ composites exhibit crack deflection mechanisms that enhance durability.
Boron carbide nanoparticles are being tested for boron neutron capture therapy (BNCT), targeting cancer cells with minimal damage to healthy tissue.
Boron carbide is unequivocally a covalent compound, with its mechanical and thermal properties arising from strong B–C and B–B bonds. The B₁₂ icosahedra and C–B–C chains form a rigid covalent network, distinguishing it from ionic ceramics like Al₂O₃. While challenges like brittleness and oxidation persist, advancements in synthesis and composite engineering continue to expand its applications in defense, energy, and manufacturing sectors.
B₄C's B₁₂ icosahedra create a denser covalent network, whereas SiC's simpler tetrahedral structure allows easier dislocation movement.
Yes, it behaves as a p-type semiconductor due to electron-deficient bonding, with a bandgap of ~2.1 eV.
Above 2,000°C, partial decomposition occurs, forming graphite and boron-rich phases like B₂₅C.
Solid B₄C is inert, but inhalation of fine powder may cause lung irritation. It is not classified as carcinogenic.
Primary sectors include defense (armor), nuclear energy (control rods), and manufacturing (abrasive nozzles).
