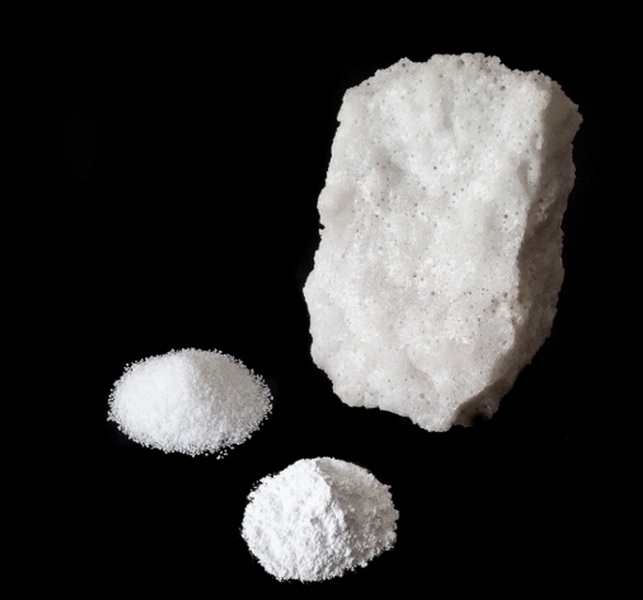

Aluminum oxide (Al₂O₃) forms naturally when aluminum reacts with oxygen, creating a protective passivation layer. However, in environments like saltwater, acidic conditions, or after welding, this layer can degrade, leading to unsightly corrosion or impaired functionality. This article provides a comprehensive guide to removing aluminum oxide from aluminum, covering mechanical, chemical, electrochemical, and household methods, supported by step-by-step instructions, safety protocols, and visual aids.
Aluminum oxide forms via the reaction:
4Al+3O2→2Al2O3
The oxide layer is typically 2–10 nm thick and self-healing under mild conditions. However, in aggressive environments (e.g., saltwater, pH extremes, or welding heat), the layer breaks down, exposing the metal to further oxidation.
- Tools:
- Silicon carbide sandpaper (80–400 grit for initial removal; 1,000+ grit for polishing).
- Angle grinder with abrasive discs (e.g., Scotch-Brite™).
- Steps:
1. Clean the surface with soapy water.
2. Sand in circular motions until oxide is removed.
3. Polish with finer grits for a smooth finish.
- Media:
- Glass beads: Gentle on delicate surfaces.
- Aluminum oxide grit: For heavy corrosion.
- Pressure: 40–100 psi (adjust based on aluminum thickness).
- Phosphoric Acid (H₃PO₄):
- Mix 10–20% phosphoric acid with water.
- Soak or scrub for 10–30 minutes.
- Neutralize with baking soda and rinse.
- Citric Acid:
- Dissolve 1 cup citric acid in 1 gallon warm water.
- Soak parts for 1–2 hours.
Table: Acidic Solutions for Oxide Removal
| Acid | Concentration | Soak Time | Safety Notes |
|---|---|---|---|
| Phosphoric | 10–20% | 10–30 min | Wear gloves and goggles |
| Citric | 5–10% | 1–2 hrs | Eco-friendly, low toxicity |
| Vinegar | Undiluted | 2–4 hrs | Slow-acting, mild odor |
- Sodium Hydroxide (NaOH):
- Use 5–10% NaOH solution (wear PPE).
- Soak for 5–15 minutes.
- Rinse thoroughly.
- Setup:
- Anode: Stainless steel or graphite.
- Electrolyte: Sodium carbonate (washing soda) solution.
- Power Supply: 12V battery charger.
- Steps:
1. Submerge the aluminum part and anode in electrolyte.
2. Connect aluminum to the negative terminal (cathode).
3. Run for 1–4 hours; hydrogen bubbles lift oxide.
1. Baking Soda Paste:
- Mix baking soda with water to form a paste.
- Scrub with a nylon brush.
2. Lemon Juice and Salt:
- Sprinkle salt on corroded areas, add lemon juice, and scrub after 30 minutes.
3. Cola Soak:
- Soak parts in cola (phosphoric acid) for 1–2 hours.

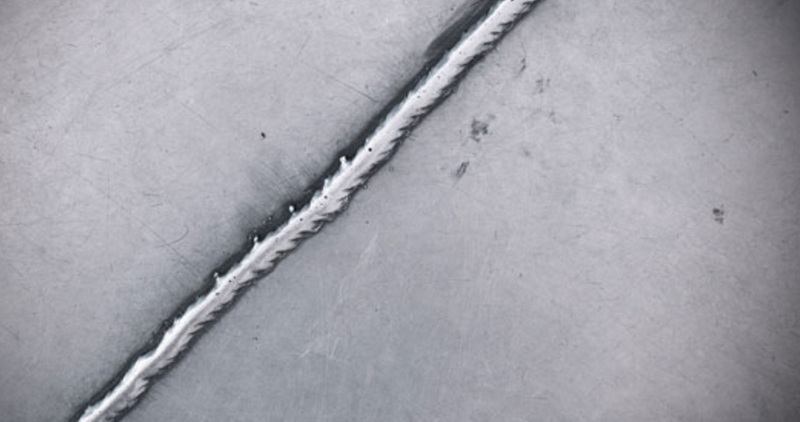

Welding aluminum generates thick oxide layers due to high heat. Use these steps:
1. Wire Brushing: Stainless steel brush (dedicated to aluminum to avoid contamination).
2. Chemical Cleaners: Post-weld treatments like Henkel Alodine®.
3. Abrasive Discs: Non-woven discs to restore surface finish.
- Process: High-frequency sound waves in a detergent bath remove oxide from intricate parts.
- Applications: Aerospace components, electronics.
- Technology: Pulsed lasers vaporize oxide without damaging the base metal.
- Advantages: Precision, no waste chemicals.
After oxide removal, protect aluminum with:
1. Anodizing: Electrochemically thicken the oxide layer (10–25 µm).
2. Clear Coat/Paint: Epoxy or polyurethane coatings.
3. Corrosion Inhibitors: WD-40, Boeshield T-9.
| Acid | Concentration | Soak Time | Safety Notes |
|---|---|---|---|
| Phosphoric | 10–20% | 10–30 min | Wear gloves and goggles |
| Citric | 5–10% | 1–2 hrs | Eco-friendly, low toxicity |
| Vinegar | Undiluted | 2–4 hrs | Slow-acting, mild odor |
1. PPE: Gloves, goggles, and respirators for acid/alkali work.
2. Ventilation: Work in well-ventilated areas to avoid fume inhalation.
3. Disposal: Neutralize acids/bases before draining.
1. Bio-Based Cleaners: Enzymatic solutions for eco-friendly oxide removal.
2. Self-Healing Coatings: Nano-coatings that repair scratches automatically.
3. AI-Driven Monitoring: Sensors detecting early-stage corrosion.
Removing aluminum oxide requires tailored methods based on corrosion severity and application. Mechanical techniques like sanding suit small repairs, while industrial solutions like laser cleaning offer precision for critical components. Post-removal protection (anodizing, coatings) is essential to prevent recurrence. Innovations in eco-friendly cleaners and smart coatings will revolutionize aluminum maintenance.
Yes, but it's slow. Soak parts in undiluted vinegar for 2–4 hours, then scrub.
Yes, but limit voltage to 6–12V and monitor closely to avoid over-etching.
Apply a clear coat, anodize, or use corrosion inhibitors like WD-40.
Yes—use low-pressure (40–60 psi) with glass beads to avoid pitting.
No, but prolonged exposure may cause slight etching. Rinse thoroughly after use.
